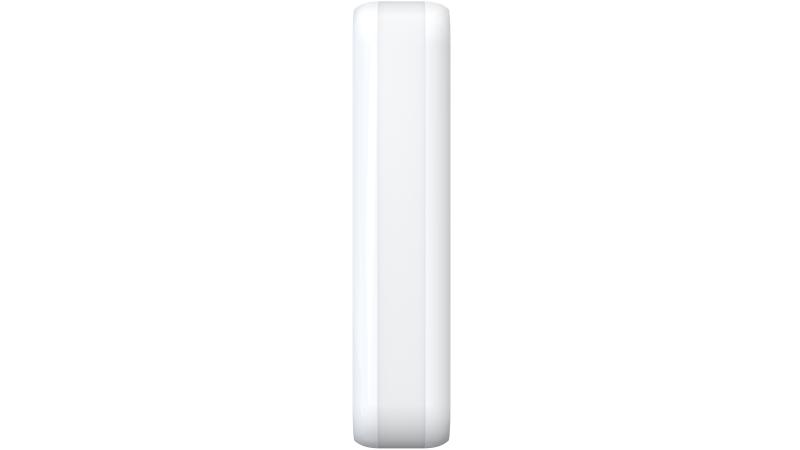

Hikvision DS-PDC10M-EG2-WE Wireless Dual-Tech AM Curtain Detector

Slim design for window frame installation
IP65 weather resistance for outdoor application
Active IR anti-masking
Directional detection support
Multiple enrollment methods and easy installation
Frequency hopping against jamming for reliable transmission

Detection Performance
Detection MethodPassive Infrared;Microwave
Detection Range

Wall mount: 10 m

Ceiling mount: 5 m
Detection Angle5°
Detection Zones32
Detectable Speed0.3～2m/s
SensitivityAuto;Pet
White Light Filter6500lux
Microwave Frequency24GHz(24.15～24.25GHz)
Pet Immunity

Wall mount: 12 kg

Ceiling mount: None
Digital Temperature CompensationSupport
Creep Zone ProtectionSupport
Anti-maskingSupport

Feature
Digital ProcessingSupport
Sealed OpticsSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Directional DetectionSupport

Interface
Power SwitchPower up enrolling
LED IndicatorGreen (PIR), red (microwave), green+orange (mask), blue (alarm)

Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics
Standard Battery LifeUp to 5 years (standby time) (The battery working time can be
significantly reduced at low temperatures)
Power SupplyBattery powered
Battery TypeCR123A × 2
Typical Voltage3V
