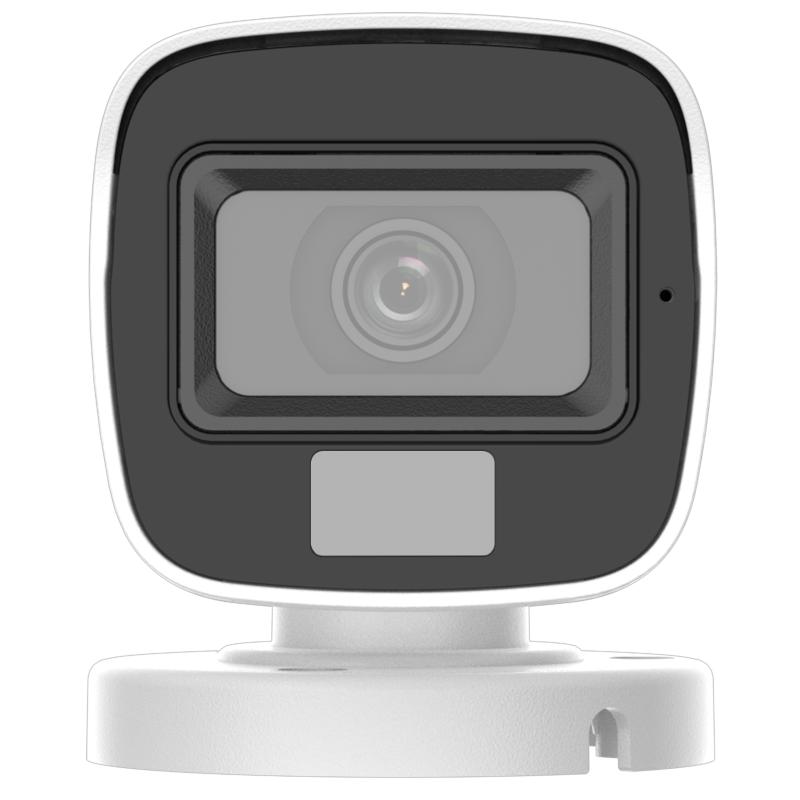

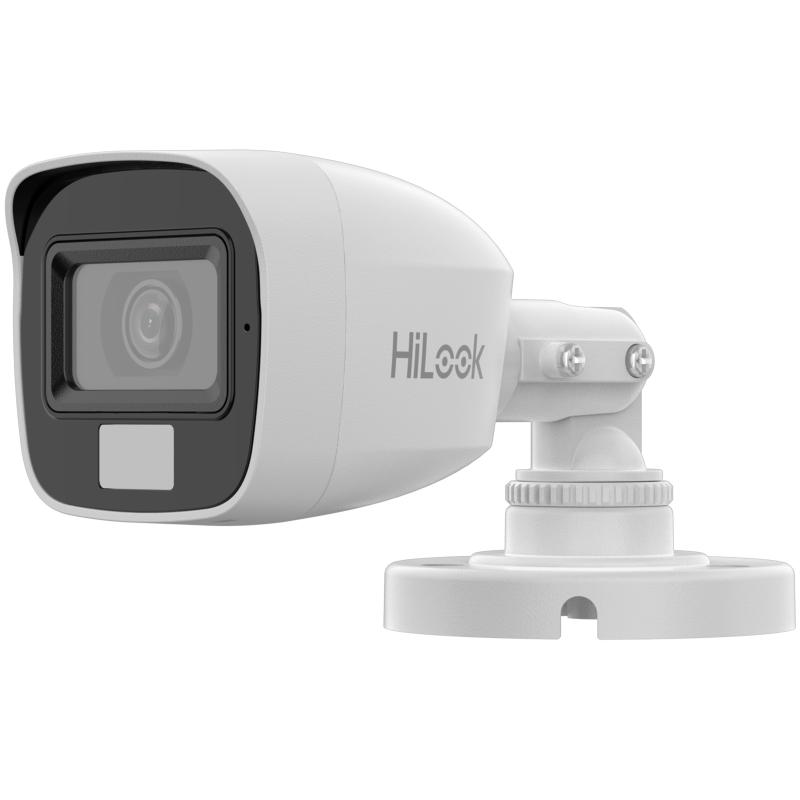

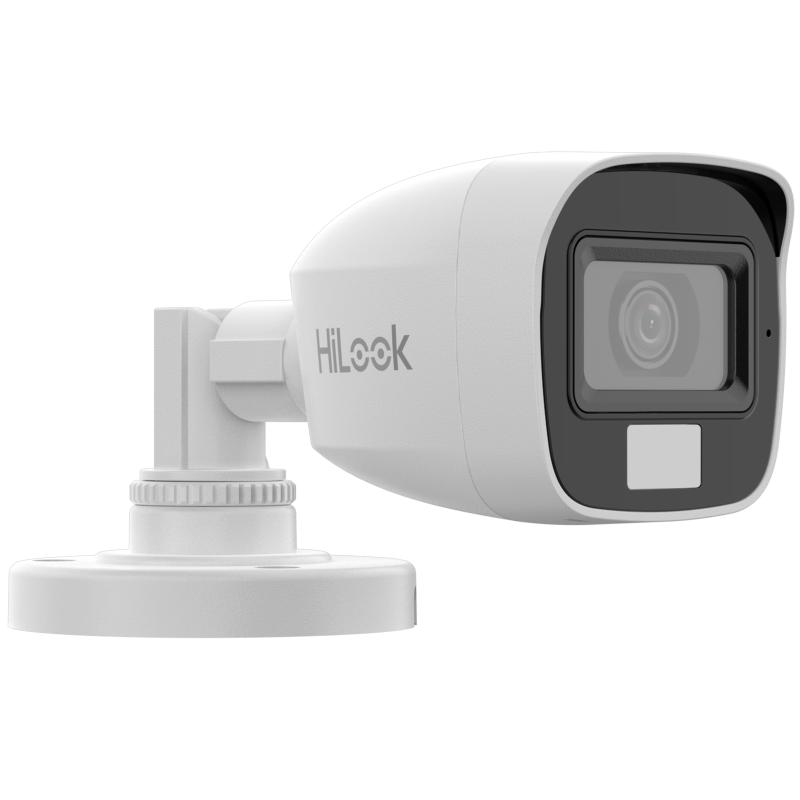

HiLook 2MP Dual Light Audio Fixed Mini Bullet Camera | THC-B127-LPS

2MP Dual Light Audio Fixed Mini Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP66)
High quality audio with audio over coaxial cable, built-in microphone
Smart-Hybrid light, optimize your security with flexible lighting options

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, tilt: 0 to 180°, rotate: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
Lens Mount M12

Microphone
Pickup Distance In a radius of up to 5 m
Amount 1

Illuminator
Supplement Light Range IR : up to 20 m
White Light : up to 20 m
Supplement Light Type Smart, IR, White Light

Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 1080P @30 fps, 1080P @25 fps
AHD: 1080P @30 fps, 1080P@25 fps
CVI: 1080P @30 fps, 1080P @25 fps
CVBS: PAL/NTSC
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Day/Night Mode Auto/Color

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialPlastic
DimensionØ70 mm × 153.4 mm (Ø2.76" × 6.04")
WeightApprox. 164 g (0.36 lb)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.2 W
