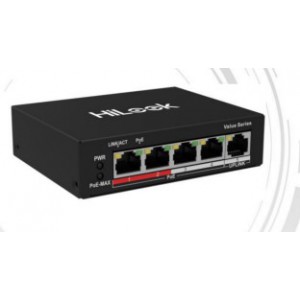

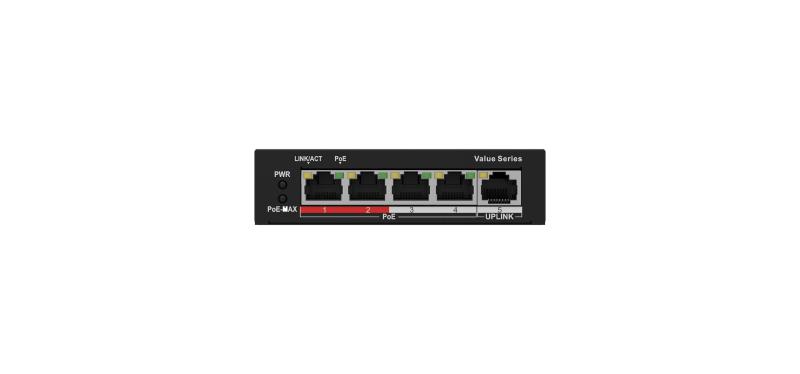

HiLook 4 Port POE Switch | POE020

Port Fast Ethernet Unmanaged POE Switch

Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
All ports support 6 kV lighting protection
35 W PoE power budget
Maximum transmission distance is 250 meters
MAC address auto learning and auto aging

General
ShellMetal material, fan-free design
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply48 VDC, 0.8 A
Storage humidity5% to 95% (no condensation)
Net weight 0.2 kg (0.4 lb)
Gross weight 0.48 kg (1.06 lb)
Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle3 W
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port Ports 1 to 4
Max. port power30 W
PoE power budget35 W
Max. power consumption38 W
