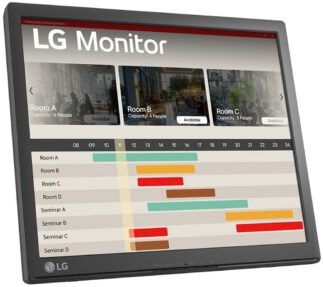

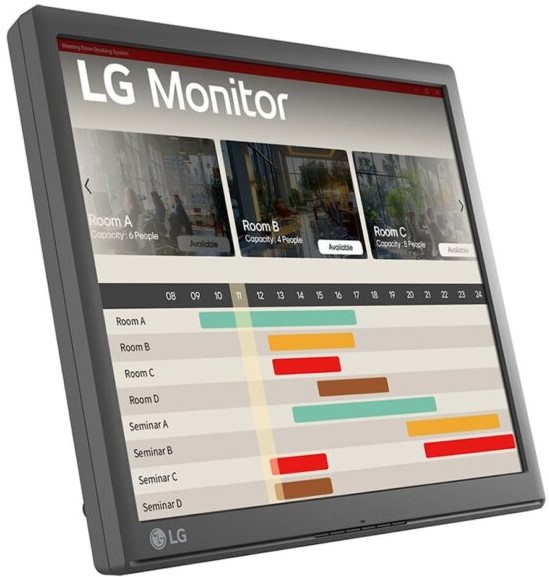

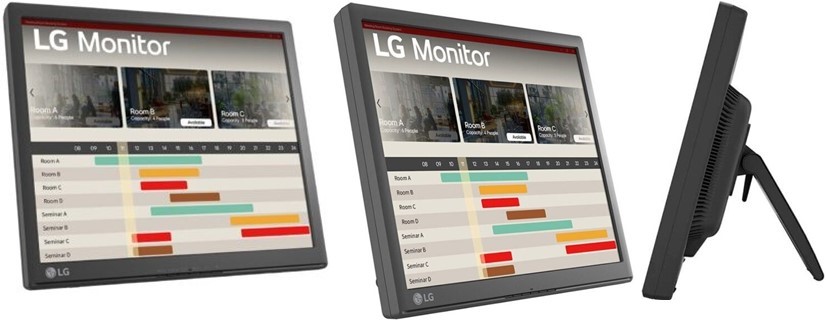

LG 17-inch SXGA Touch Monitor

LG SXGA (1280x1024) touchscreen monitor allows you to operate efficiently with your fingertips, enhancing work productivity and comfort. Plus, you can enjoy realistic videos with less screen stuttering, thanks to the fast 5ms response time.

Product Overview

The LG 17" SXGA Touchscreen Monitor features a 1280x1024 TN display with a 5:4 aspect ratio, offering a touchscreen interface for enhanced productivity and comfort. It includes built-in power, Smart Energy Saving, and a tilt-adjustable stand for ergonomic use, along with a fast 5ms response time for smooth video playback. With a range of connectivity options and anti-glare treatment, it provides a versatile and efficient workspace solution.

Specifications

•Product Code: 17BR30T-B.AFB
•Decription: LG 17-inch SXGA Touch Monitor
•Display Size (Inch): 17
•Size (cm): 43.18 cm
•Resolution: 1280 x 1024
•Panel Type: TN
•Aspect Ratio: 5:4
•Pixel Pitch [mm]: 0.264 x 0.264
•Brightness (Min.) [cd/m ] : 150 cd/m
•Brightness (Typ.) [cd/m ]: 200 cd/m
•Color Gamut (Typ.): NTSC 72%(CIE1931)
•Color Depth (Number of Colors): 16.7M
•Color Bit: 8bit
•Contrast Ratio (Min.): 600:1
•Contrast Ratio (Typ.): 1000:1
•Response Time: 5ms (On/Off, Not Support OD)
•Viewing Angle (CR 10): 170 (R/L), 160 (U/D)
•Surface Treatment: Anti-Glare
•Features Picture Mode: Reader Mode
•Reader Mode: YES
•Smart Energy Saving: YES
•OSD Language: 18 countries (English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean, Hindi)
•Others (Feature): Single Point Touch
•Connectivity D-Sub: YES(1ea)
•D-Sub (V Frequency): 56~75HZ
•D-Sub (Max. Resolution at Hz): 1280 x 1024 at 75Hz
•USB Upstream Port(USB-B): 1x USB2.0
•Power Type: Built-in Power
•AC Input: 100~240V (50/60Hz)
•DC Output: 28W(19V,1.6A)
•Power Consumption (On-Mode): 16W
•Power Consumption (On-Mode) (ErP): 12W
•Power Consumption (Sleep Mode): Less than 0.3W
•Power Consumption (DC Off): Less than 0.3W
•Mechanical Borderless Design: Normal
•Color (Front Cabinet): Black - Non Glossy
•Color (Middle Cabinet): Black - Non Glossy
•Color (Back Cover): Black - Non Glossy
•Color (Stand Body): Black - Non Glossy
•Color (Stand Base): Black - Non Glossy

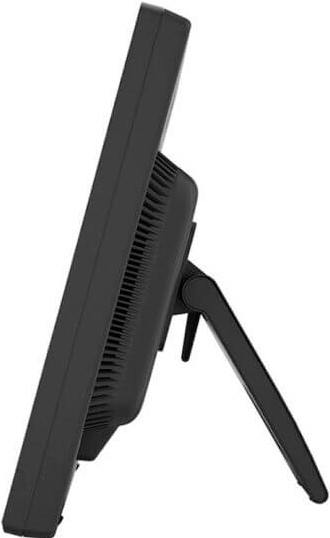

•Display Position Adjustments: Tilt
•Tilt: +15 ( 3 )~66 ( 3 )
•Wall Mountable [mm]: 75 x 75 mm
•Pallet Stuffing (20ft/40ft/40ft HC): 936/2028/2028
•Accessory Power Cord: YES
•Power Cord (Color/Length): Black / 1.5m
•D-Sub: YES
•D-Sub (Color/Length): Black / 1.5m
•USB A to B: YES
•USB A to B (Color/Length): Black / 1.8m
•Standard TUV-Type: YES
•CB: YES
•UL (cUL): YES
•FCC-B: YES
•Erp: YES
•CE: YES
•BIS (for India): Depends on PDR
•VCCI (for Japan): Depends on PDR
•BSMI (for Taiwan): Depends on PDR
•KC (for Rep. of Korea):Depends on PDR
•CCC (for China): Depends on PDR
•Others (Standard): Win10
