MikroTik Cloud Smart Switch 326-24G-2S+RM | RBCSS326-24G-2S+RM

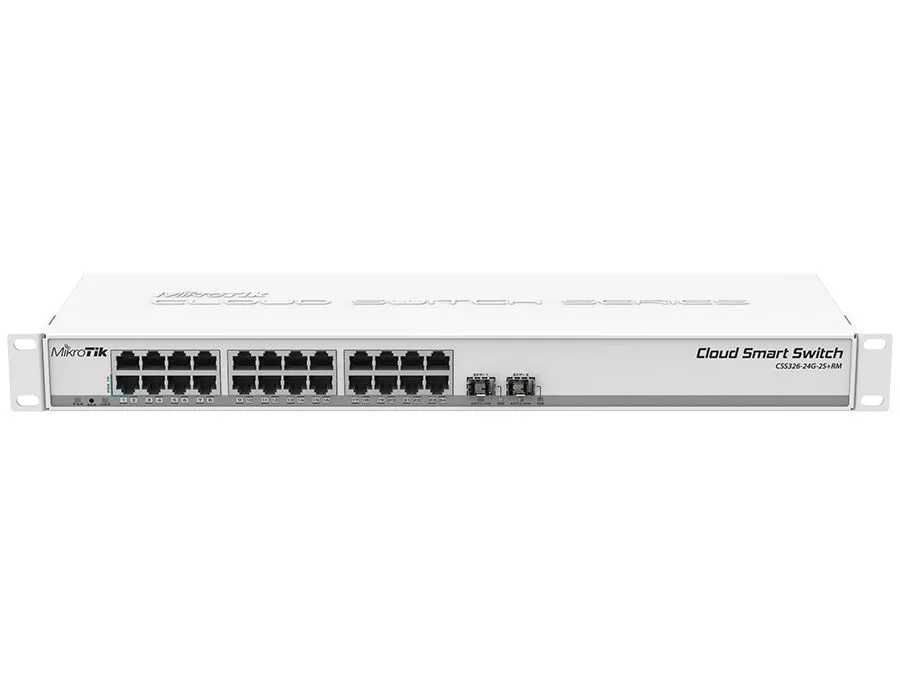

MikroTik Cloud Smart Switch CSS326-24G-2S+RM

The Cloud Smart Switch 326-24G-2S+RM is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwitchOS.

SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows you to manage port-to-port forwarding, apply MAC filtering, configure VLANs, mirror traffic, apply bandwidth limitations and even adjust some MAC and IP header fields. The SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.


Product Features:


Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation
Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP v1
Web-based GUI

RouterBoard Specs

RouterBoard CPU Powered by a Marvell DX switch chip (98DX3216A1)
Wired Interfaces 24x Gigabit Ethernet Ports, 2x SFP+ Slots
DC Power Yes - 12-30V DC
PoE Yes, PoE input on Eth1 (12-30V DC - Non 802.3af PoE)
Operating System MikroTik SwitchOS

Specifications:
Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 19W
Mounting: Rack-Mount
Operating System: SwOS
Operating Temperature: -20°C to 70°C
PoE Input: 10V-30V (Passive PoE)
PoE Output: None

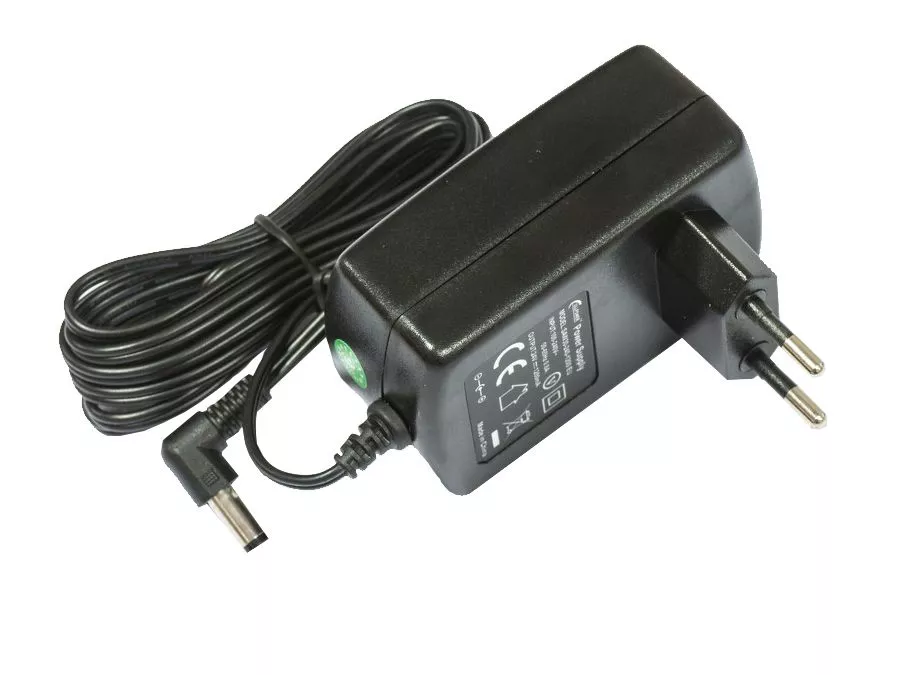

Power Input: 24V 1.2A Power Supply (Included)
Processor: Switch Chip
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 10V-30V
System Memory: 2MB
USB Ports: None
Other: None
Weight & Dimensions
W : 20 cm
L : 56 cm
H : 7 cm
Weight: 1720 g
