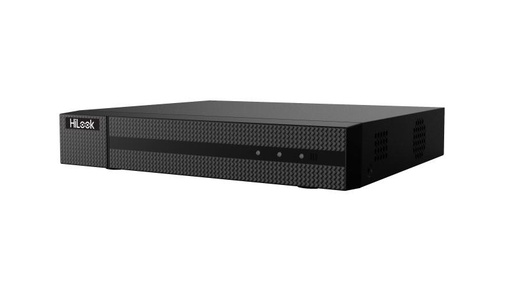

HiLook 16-ch 5 MP 1U H.265 DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability

Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.

Video and Audio
IP Video Input 8-ch (up to 24-ch)
Enhanced IP mode on:
16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps,
4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20
fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,
720p@30 fps, 720p@25 fps

CVBS Input PAL/NTSC
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable

Video Output Mode HDMI/VGA simultaneous output

Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the
audio input) Synchronous playback16-ch

Network
Total Bandwidth128 Mbps Remote Connection128 Network ProtocolTCP/IP, PPPoE, DHCP,
HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
General
Power Supply12 VDC, 5 A
Consumption≤ 25 W (without HDD)

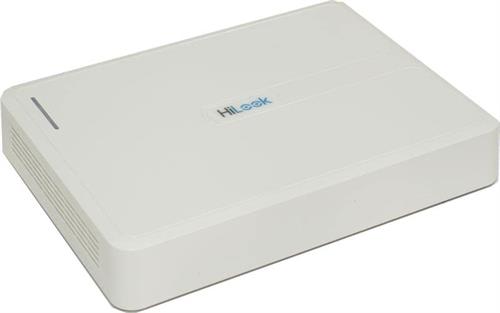

HiLook 16CH Hybrid DVR High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265 video compression, Advanced Motion Detection Ver2 Deep learning based human and vehicle targets classification, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA and 16-ch via coaxial cable, SATA Interface Support up to 10TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 18-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Product Overview
Experience advanced surveillance capabilities with the HiLook 16CH Hybrid DVR, offering high-definition video compression and deep learning-based motion detection for precise human and vehicle target classification. With support for multiple video inputs, up to 10TB HDD storage, and remote viewing from any device, it ensures comprehensive security monitoring with ease.

Specifications

•Product code: DVR-116G-M1
•Description: HiLook 16CH Hybrid DVR High Definition Stand Alone DVR
•Human/Vehicle Analysis
•H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
•For 1080p and 720p stream access CIF/QVGA@15 fps
•Dual-Stream
•Support
•Stream Type
•Video, Video & Audio
•Audio Compression
•G.711u
•Audio Bitrate
•64 Kbps
•Video And Audio
•IP Video Input
•2-ch (up to 18-ch)
•Up to 5 MP resolution
•AHD Input
•1080p25, 1080p30, 720p25, 720p30
•HDCVI Input
•1080p25, 1080p30, 720p25, 720p30
•1-ch RCA (2.0 Vp-p, 1 KΩ)
•1-ch, RCA (Linear, 1 KΩ)
•≤ 7 W (without HDD)
•Working Temperature
•-10 °C to 55 °C (14 °F to 131 °F)
•Dimension (W × D × H)
•285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
•≤ 1.8 kg (without HDD, 4.0 lb.)

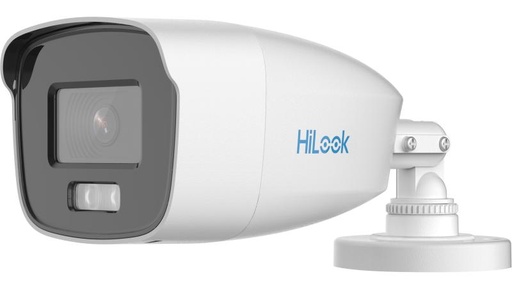

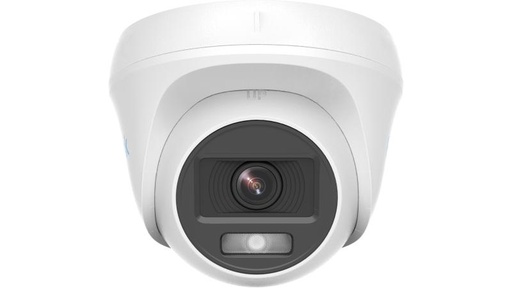

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 4 W
Material Metal
White Light Range Up to 40 m
Dimension75.4 mm × 223.25 mm × 87.3 mm (2.97" × 8.79" × 3.44")
Weight Approx. 560 g (1.23 lb)

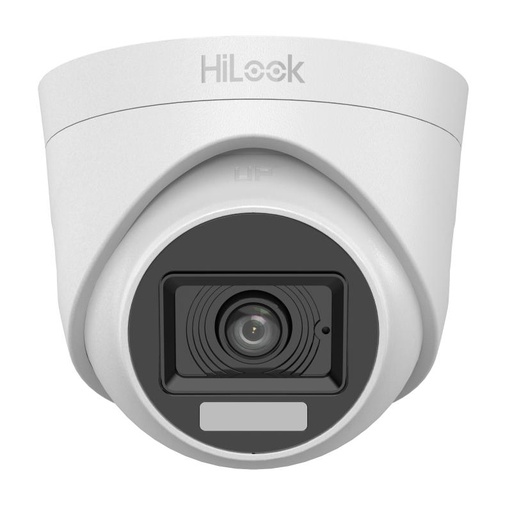

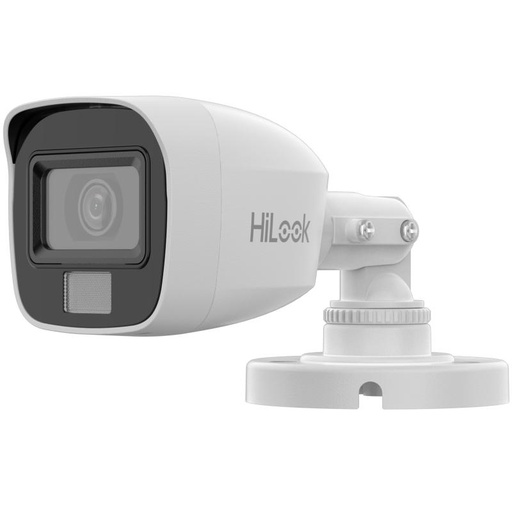

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 2.4 W
Materia lPlastic
White Light Range Up to 20 m
Dimension Ø 85.4 mm × 71.46 mm (Ø 3.36" × 2.79")
WeightApprox.123 g (0.27 lb)

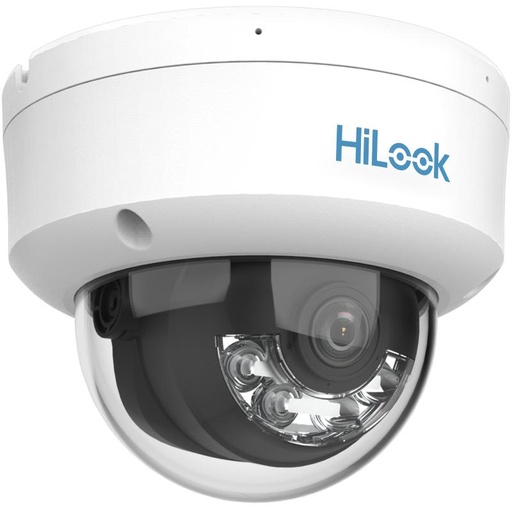

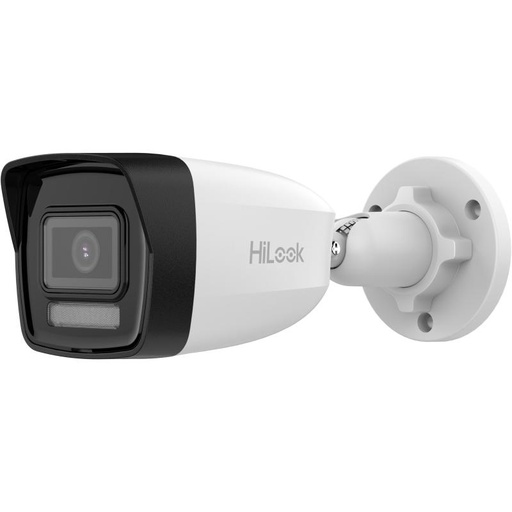

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Built-in microphone for real-time audio security
Efficient H.265+ compression technology
Water and dust resistant (IP67) and vandal resistant (IK08)
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Material Base: metal, cover: plastic
DimensionØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Weight Approx. 490 g (1.1 lb.)
With Package Weight Approx. 710 g (1.6 lb.)

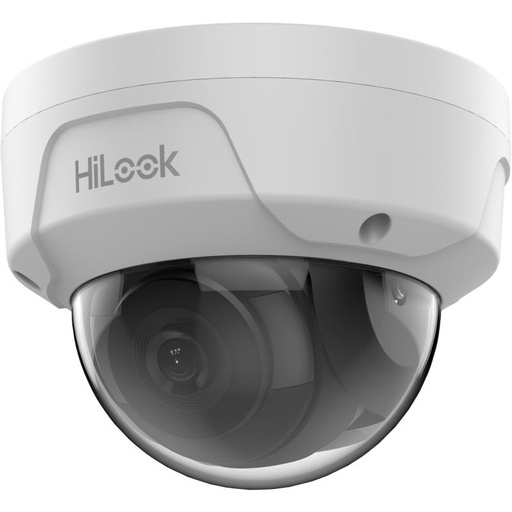

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Easy installation with power over Ethernet (PoE) technology
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100, 000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens MountM12
Iris TypeFixed
ApertureF2.0
DimensionØ111 mm × 82.4 mm (Ø4.4" × 3.2")
Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight Approx. 410 g (0.9 lb.)
With Package Weight Approx. 610 g (1.3 lb.)

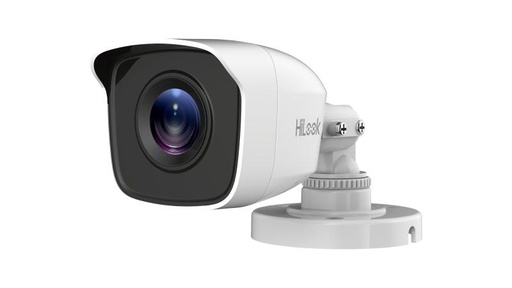

HiLook 2 MP Fixed Mini Bullet Camera
1080p bullet camera
Smart IR: up to 20 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm and 6 mm
Focal Length & FOV
2.8 mm, horizontal FOV: 103°
3.6 mm, horizontal FOV: 80.7°
6 mm, horizontal FOV: 50.1°
Lens MountM12

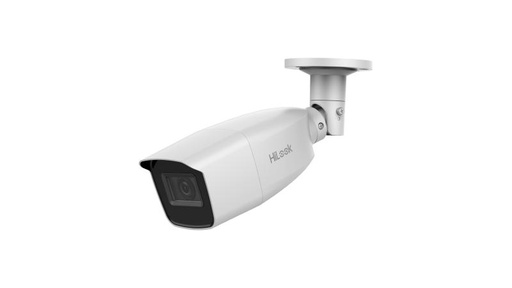

080p vari-focal bullet camera
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm to 12 mm
Focal Length & FOV111.5° to 33.4°
Lens MountΦ14

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes

Image Settings Brightness; Sharpness; Mirror; AGC
Frame Rate: PAL:1080p@25fps NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement BLC
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ± 15%, max. 5 W
MaterialFront cover: Metal, Main body: Plastic
Dimension256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")
WeightApprox. 605 g (1.33 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Language English

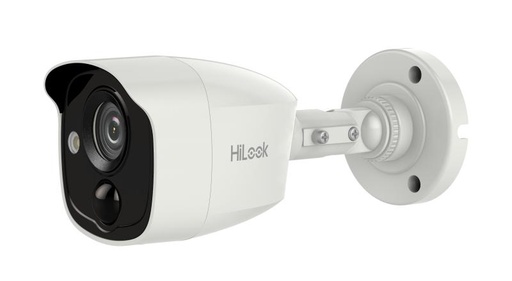

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Detects human body through heat-sensitive passive infrared (PIR)
Water and dust resistant (IP66)

Camera
Image Sensor2 MP CMOS
Signal System PAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame Rate TVI: 1080p@25fps, 1080p@30fps
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 44.7°, diagonal FOV: 94.5°
Lens MountM12
Light Alarm Flashing Light Alarm (White Light);Solid Light Alarm (White Light)
Day & Night IR Cut Filter
WDR (Wide Dynamic Range)Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White LightAuto/Off
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeGlobal;HLC;BLC;DWDR
Noise Reduction2D DNR
Language English
FunctionSharpness;Smart IR;Mirror;Brightness

General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Power Supply

12VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.6 W
Protection LevelIP66
Material Metal
IR Range Up to 20 m
White Light Range Up to 20 m
PIR Range Angle: 110°, Range: 11 m
Communication HIKVISION-C
Dimension166.7 mm × 68 mm × 69.3 mm (6.56" × 2.68" × 2.73")
Weight Approx. 296 g (0.65 lb.)

HiLook 24-Port 100 Mbps Long-Range Unmanaged PoE Switch
Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
230 W PoE power budget
Maximum transmission distance is 250 meters for port 17 to 24 in "extend" mode
MAC address auto learning and auto aging

Port number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 17 to 24
MAC address table4 K
Switching capacity8.8 Gbps
Packet forwarding rate6.547 Mpps
Internal cache2.75 Mbits
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port Ports 1 to 24
Max. port power30 W
PoE power budget230 W
Max. power consumption250 W
Shell Metal material
Gross weight3.33 kg (7.34 lb)
Net weight2.55 kg (5.6 lb)
Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity5% to 95% (no condensation)
Storage humidity5% to 95% (no condensation)
Power supply100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle20 W

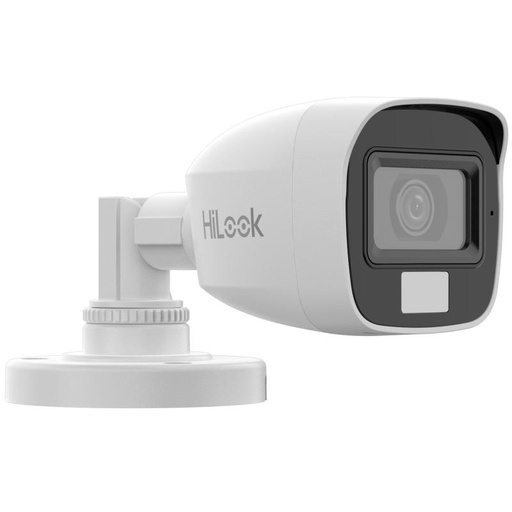

2MP Dual Light Audio Fixed Mini Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP66)
High quality audio with audio over coaxial cable, built-in microphone
Smart-Hybrid light, optimize your security with flexible lighting options

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, tilt: 0 to 180°, rotate: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
Lens Mount M12

Microphone
Pickup Distance In a radius of up to 5 m
Amount 1

Illuminator
Supplement Light Range IR : up to 20 m
White Light : up to 20 m
Supplement Light Type Smart, IR, White Light

Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 1080P @30 fps, 1080P @25 fps
AHD: 1080P @30 fps, 1080P@25 fps
CVI: 1080P @30 fps, 1080P @25 fps
CVBS: PAL/NTSC
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Day/Night Mode Auto/Color

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialPlastic
DimensionØ70 mm × 153.4 mm (Ø2.76" × 6.04")
WeightApprox. 164 g (0.36 lb)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.2 W

2MP Dual Light Fixed Mini Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
Smart Hybrid light, optimize your security with flexible lighting options
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal SystemPAL/NTSC

Illuminator
Supplement Light Range IR : Up to 20 m
White Light : Up to 20 m
Supplement Light TypeSmart,IR,White Light
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Sharpness, Smart IR
Frame Rate TVI: 1080p @ 30 fps, 1080p @ 25 fps AHD: 1080p @ 30 fps, 1080p @ 25 fps
CVI: 1080p @ 30 fps, 1080p @ 25 fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
DimensionØ70 mm × 153.4 mm (Ø2.76" × 6.04")
WeightMax. 145 g (0.32 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply 12 VDC ± 25%, Max. 3.2 W
*You are recommended to use one power adapter to supply the power for one camera.
Approval
ProtectionIP66

High quality imaging with 2 MP, 1920 × 1080 resolution
Smart-Hybrid light, optimize your security with flexible lighting options
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°
Lens MountM12
Illuminator
Supplement Light TypeWhite Light;IR
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m

General
MaterialPlastic
DimensionØ84.6 mm × 78.9 mm (3.33'' × 3.11'')
WeightMax. 135 g (0.3 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply

12 VDC ± 25%, Max. 3.2 W

*You are recommended to use one power adapter to supply the power for one camera.

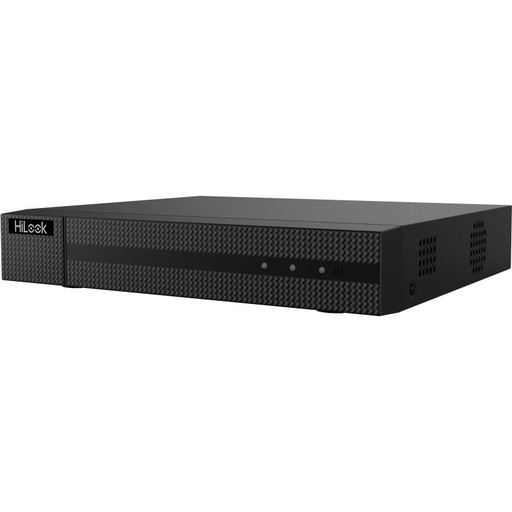

Professional and Reliable

 Dual-OS design to ensure high reliability of system running

 ANR technology to enhance the storage reliability when the network is disconnected HD Input

 H.265/H.265+/H.264/H.264+/MPEG4 video formats

 Connectable to the third-party network cameras

 Up to 32 IP cameras can be connected

 Recording at up to 8 MP resolution

 Supports live view, storage, and playback of the connected camera at up to 8 MP resolution HD Output

 HDMI and VGA independent outputs provided

 HDMI Video output at up to 4K (3840 × 2160) resolution HD Storage

 Up to 2 SATA interfaces connectable for recording and backup

 Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format HD Transmission

 1 self-adaptive 10 M/100 M/1000 Mbps network interfaces Various Applications

 Adopt stream over TLS encryption technology (enhanced SD K service and RTP over HTTPS protocol) which provides

 more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth)

 Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.

 Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized

 VCA detection alarm is supported

 Instant playback for assigned channel during multi-channel display mode

 Smart search for the selected area in the video; and smart playback to improve the playback efficiency

 Supports HDD quota and group modes; different capacity can be assigned to different channels

 Hik-Connect for easy network management

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
Lens MountM12
Iris TypeFixed
ApertureF1.0
MaterialFront cover: metal, body: plastic, bracket: plastic
Dimension69.8 mm × 67.9 mm × 172.9 mm (2.7" × 2.7" × 6.8")
Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Weight Approx. 490 g (1.1 lb.)
With Package Weight Approx. 710 g (1.6 lb.)

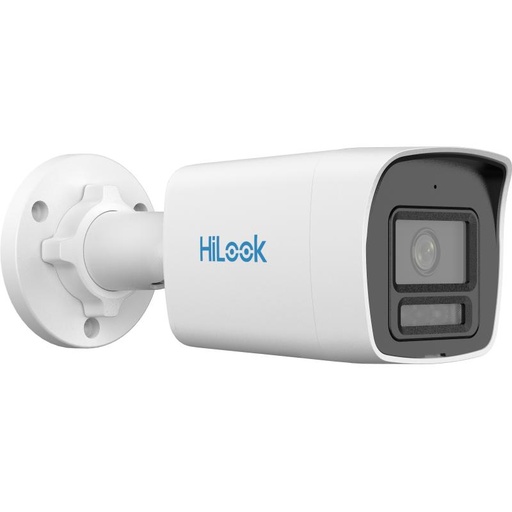

4 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength850 nm
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialMetal & Plastic
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 270 g (0.6 lb.)
With Package Weight Approx. 481 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

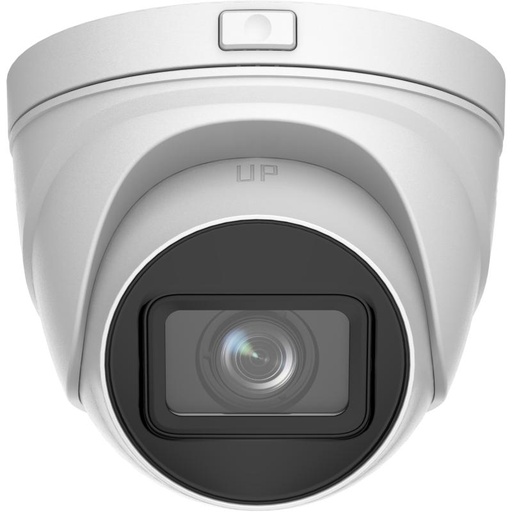

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensionØ141 mm × 99.9 mm (Ø5.6″ × 3.9″)
Package Dimension140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

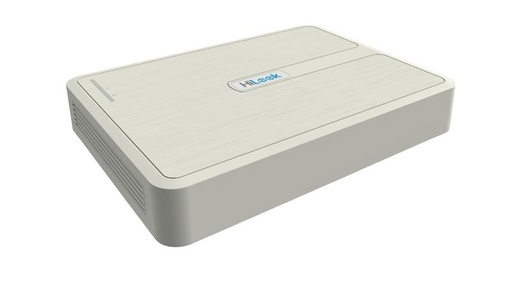

HiLook 4-ch Mini 1U 4 PoE 4K NVR
Up to 8 channel IP cameras can be connected
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports decoding H.264+/H.264 multiple video formats
Up to 4-ch @ 1080p decoding capacity
1 HDD for continuous video recording
Video and Audio
IP video input8-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
HDMI/VGA output1-ch, resolution:1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output1-ch, RCA (Linear, 1kΩ)
Recording resolution4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)

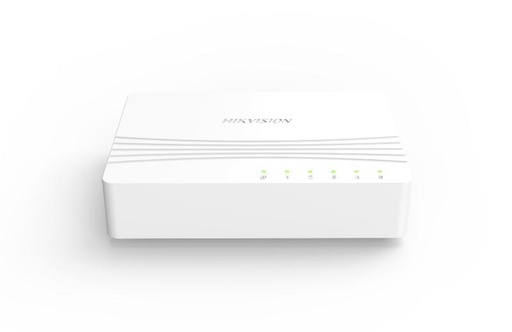

The HiLook 5-port, unmanaged, Gigabit desktop switch is designed for small-scale IP surveillance networks or networking applications.
The plug-and-play design simplifies installation without any configuration requirements, and its compact size minimizes the space required.


General
Dimensions (W × H × D)92.80 mm × 65.80 mm × 22.80 mm (3.65'' × 2.60'' × 0.90'')
ShellABS
Net Weight0.03 kg (0.07 lb)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity10%~90% RH non-condensing
Storage Temperature–40 °C to 70 °C (–40 °F to 158 °F)
Storage Humidity5%~90% RH non-condensing
Power Supply5 V DC, 0.6 A

Network Parameters
Ports5
Port Type10/100/1000 Mbps RJ45 ports
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Forwarding ModeStore-and-forward switching
MAC Address Table2 K
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps

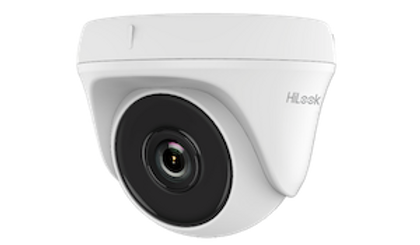

HiLook Dome Camera THC-T150-P 5MP 20m IR Specifications:
Image Sensor 5MP High Performance CMOS Sensor
Resolution 2560 x 1944 Resolution
Lens 2.8mm Fixed Lens
IR 24/7 Color Imaging with F1.0 Aperture
Power Supply 12v DC 4.3w Consumption
