Cudy's CD-M18003 is a 3 pack, dual band 802.11ax (WiFi 6) mesh system featuring 2x Gigabit Ethernet Ports, integrated antennas and an aggregate data rate of up to 1775Mbps. The router supports Cudy's whole home mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard, IPSec and Zerotier. It also supports OpenWRT, a popular open-sourced firmware, which allows access to more features and customisation. Access the OpenWRT firmware for this router here.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2.4GHz: 4.9dBi ; 5.8GHz: 6.04dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1201Mbps
Ethernet Ports: 2x 10/100/1000 (Per Mesh Point)
Hardware Button: Reset ; Pair
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 150 x 150 x 110 mm
Weight: 405g

Cudy's CD-M18001 is a dual band 802.11ax (WiFi 6) mesh router featuring 2x Gigabit Ethernet Ports, integrated antennas and an aggregate data rate of up to 1775Mbps. The router supports Cudy's whole home mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard, IPSec and Zerotier. It also supports OpenWRT, a popular open-sourced firmware, which allows access to more features and customisation. Access the OpenWRT firmware for this router here.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2.4GHz: 4.9dBi ; 5.8GHz: 6.04dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1201Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset ; Pair
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Cudy's CD-WR3000 is a dual-band WiFi 6 router featuring 4x Gigabit Ethernet ports and an aggregate data rate of up to 3000Mbps. The router supports Cudy's whole home mesh system, DNS over TLS (DoT), and various VPN server or client protocols as well as TR-069. It also supports OpenWRT, a popular open-sourced firmware, which allows access to more features and customisation. Access the OpenWRT firmware for this router here.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset ; WPS
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 183.3 x 109 x 35 mm
Device Weight 295g

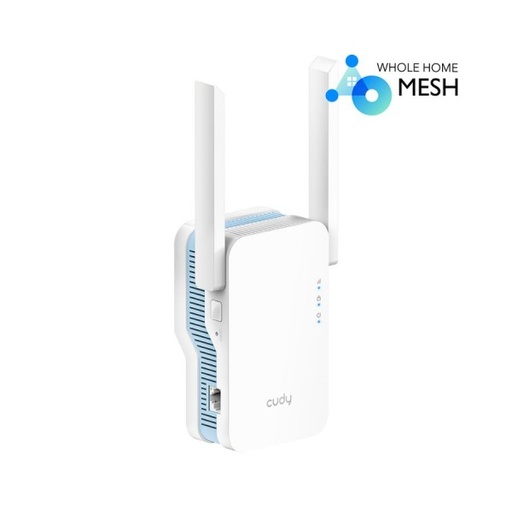

Cudy's CD-RE3000 is a dual band WiFi 6 (802.11ax) range extender featuring 1x Gigabit Ethernet Port, 2x 3.5dBi external antennas and an aggregate data rate of up to 3000Mbps. The range extender supports Cudy's Whole Home Mesh system and can operate in both range extender and access point mode.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: External: 2x 3.5dBi; Internal: 2.4GHz: 1.9dBi, 5GHz: 3.1dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset ; Pair
Max. Power Consumption: 10W
Mounting: Plug Point
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 2 Pin 5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 110V-240V
USB Ports: None

Cudy's CD-M30002 is a 2-Pack dual band WiFi 6 mesh system featuring 1x Gigabit Ethernet Port, 1x 2.5Gbps Ethernet Port, integrated antennas and an aggregate data rate of up to 3000Mbps. The router supports Cudy's Whole Home Mesh system, seamless roaming and multiple VPN Client protocols including PPTP, L2TP, OpenVPN, WireGuard and IPSec.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2.4GHz: 4.2dBi ; 5.8GHz: 5.1dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000 (LAN) ; 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset ; Pair
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Cudy's CD-M30002 is a 3-Pack dual band WiFi 6 mesh system featuring 1x Gigabit Ethernet Port, 1x 2.5Gbps Ethernet Port, integrated antennas and an aggregate data rate of up to 3000Mbps. The router supports Cudy's Whole Home Mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard and IPSec.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2.4GHz: 4.2dBi ; 5.8GHz: 5.1dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000 (LAN) ; 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset ; Pair
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Cudy's CD-M30001 is a dual band WiFi 6 mesh router featuring 1x Gigabit Ethernet Port, 1x 2.5Gbps Ethernet Port, integrated antennas and an aggregate data rate of up to 3000Mbps. The router supports Cudy's Whole Home Mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard and IPSec.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2.4GHz: 4.2dBi ; 5.8GHz: 5.1dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000 (LAN) ; 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset ; Pair
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Cudy's CD-MC220 is a Gigabit Ethernet to Fibre media converter. The unit supports both half and full duplex and includes support for jumbo frames up to 9 KB.

*Note: SFP module sold separately.
Ethernet Ports: 1x 10/100/1000
Max. Power Consumption: 3W
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: None
Power Input: 5V 1A Power Supply (Included)
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 5V 1A

Cudy's CD-SFP-MM is a duplex module designed for Multi-Mode fibre deployments up to 500m at 1.25Gbps. Ideal for short-distance fibre links or to provide uplink between switches, routers and media converters.

*Note: This module is multi vendor compatible.
Connector: 2x LC
Data Rate: 1.25Gbps
Form Factor: SFP
Mode: Multi Mode
Supported Distance: 500m
Wavelength: 850nm

Cudy's CD-SFP-MM10 is a duplex module designed for Multi-Mode fibre deployments up to 300m at 10Gbps. Ideal for short-distance fibre links or to provide uplink between switches, routers and media converters.

*Note: This module is multi vendor compatible.
Connector: 2x LC
Data Rate: 10Gbps
Form Factor: SFP
Mode: Multi Mode
Supported Distance: 300m
Wavelength: 850nm

Cudy's CD-SFP-MM25 is a duplex module designed for Multi-Mode fibre deployments up to 100m at 25Gbps. Ideal for short-distance fibre links or to provide uplink between switches, routers, and media converters.

*Note: This module is multi-vendor compatible. To achieve 25Gbps over 100m, we recommend using OM4 fibre cable.
Connector: 2x LC
Data Rate: 25Gbps
Form Factor: SFP28
Mode: Multi-Mode
Supported Distance: 100m
Wavelength: 850nm

Cudy's CD-SFP-RJ45 is a 1.25Gbps SFP+ to Gigabit RJ45 module allowing for easy conversion of existing SFP Ports to Gigabit Ethernet Ports.

Cudy's CD-SFP-RJ45P is a 10Gbps SFP+ to 10Gbps RJ45 module. Easily upgrade your network to 10Gbps using devices with existing SFP+ ports.

*Note: CD-SFP-RJ45P does not support auto negotiation. We only recommend using this model on SFP+ devices.
Connector: RJ45
Data Rate: 10Gbps
Form Factor: SFP
Mode: Copper
Supported Distance: 10Gbps at 30m and up to 1Gbps at 100m
Wavelength: None

Cudy's CD-SFP-SMB is a pair of Bi-directional modules designed for Single Mode fibre deployments up to 20km at 1.25Gbps. Bi-directional SFP's reduce installation costs by utilising a single fibre for duplex transmission by using two unique wavelengths for TX and RX on the same optical strand.

Modules are multi-vendor compatible.
Connector: LC
Data Rate: 1.25Gbps
Form Factor: SFP (BiDi)
Mode: Single Mode
Supported Distance: 20km
Wavelength: 1310nm / 1550nm

Cudy's CD-SFP-SM is a duplex module designed for Single Mode fibre deployments up to 20km at 1.25Gbps. Ideal for long-distance fibre links or to provide uplink between switches, routers and media converters.

*Note: This module is multi vendor compatible.
Connector: 2x LC
Data Rate: 1.25Gbps
Form Factor: SFP
Mode: Single Mode
Supported Distance: 20km
Wavelength: 1310nm

Cudy's CD-SFP-SMB10 is a pair of Bi-directional modules designed for Single Mode fibre deployments up to 20km at 10Gbps. Bi-directional SFP's reduce installation costs by utilising a single fibre for duplex transmission by using two unique wavelengths for TX and RX on the same optical strand.

Modules are multi-vendor compatible.
Connector: LC
Data Rate: 10Gbps
Form Factor: SFP (BiDi)
Mode: Single Mode
Supported Distance: 20km
Wavelength: 1330nm / 1270nm

Cudy's CD-SFP-SM10 is a duplex module designed for Single Mode fibre deployments up to 10km at 10Gbps. Ideal for long-distance fibre links or to provide uplink between switches, routers and media converters.

*Note: This module is multi vendor compatible.
Connector: 2x LC
Data Rate: 10Gbps
Form Factor: SFP
Mode: Single Mode
Supported Distance: 10km
Wavelength: 1310nm
