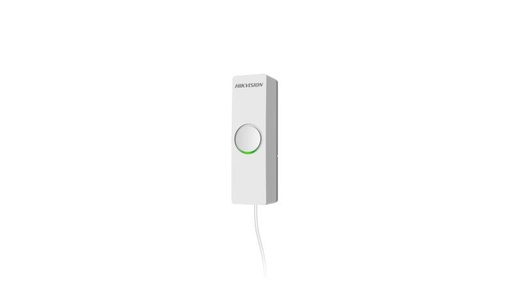

RF 868MHz, 1-input expander
Communicates up to 800 m (in open areas)
Status LEDs: One dual-color indicator

Hardware features
Tamper-ProofFront and rear
Power switch1 switch for turning on/​off LED

Electrical characteristics
Power supplyCR123 A/3 V
Operation humidity10% to 90% (non-condensing)
Operation temperature- 10 °C to 55 °C (14 °F to 131 °F)
Battery life span2 years

Wireless transmission
RF speed4.8 kbps
RF frequency868MHz
RF distance800 m (open area)

Display
Indicator1 red & green LED

General
Installation methodWall mounting
Dimension(WxHxD)84 mm × 25 mm × 21 mm (2.52" × 0.75" × 0.63")
Application scenarioIndoor
Shell materialPC + ABS
Weight38.5 g (0.085 lb)

Device management
Alarm input1 NC input

RF 868MHz, AES-128 encryption Two-way wireless communication
Reports exception automatically
Adjustable volume: low,medium, and high
Front and rear panel tamper-proof
Protection level: IP65
Indoor installation

16 Port Gigabit Smart POE Switch

16 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
Total PoE power budget 230 W
Unified cloud management for security systems
Network topology at your fingertips
Remote troubleshooting
Visualized topology management
Up to 300 m long-range PoE transmission
6 kV surge protection
Downlink Ports 16 Ports
Downlink Ports Speed 1Gb
Downlink Ports Type RJ45 Ethernet ports
Management Layer Smart Managed
POE 16 Ports
Switch Form Factor Rackmount
Uplink Ports 2 Ports
Uplink Ports Speed 1Gb
Uplink Ports Type SFP
Warranty 3 Year Warranty

8 Port Gigabit Smart POE Switch
8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
PoE watchdog to auto detect and restart the cameras that do not respond.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation,
SNMP, QoS and so on.
ShellMetal material
Net Weight1.21 kg (2.67 lb)
Gross Weight1.3 kg (2.87 lb)
Dimensions (W × H × D)217.60 mm × 27.80 mm × 108.55 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply48 VDC, 2.5 A
Installation ModeDesk-Mounted,Wall-Mounted
Max. Power Consumption120 W
Power Consumption in Idle7 W
Surge Protection6 KV

Network Parameters
Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table8 K
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
Internal Cache4.1 Mbits

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power PinEnd-span: 1/2(+), 3/6(-);
PoE PortPoE: Ports 1 to 8
Max. Port Power30 W
PoE Power Budget110 W

Software Function
Long Range

Ports 1 to 8: up to 300 m.

Long range performance may vary depend on camera model or cable condition.
Port Isolation

Ports 1 to 8: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 8 aggregation groups.
Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.
QoS

QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.

Support port-based priority configuration.

Support SP, WRR priority schedule mode.
VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 4094 VLAN.
HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.
System Maintenance Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Storm Control

Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.

Support port rate limiting based on broadcast, multicast, and unknown unicast packets.

New Model | Adjustable Voltage | Anti -Surge Protection | Flame Retardancy

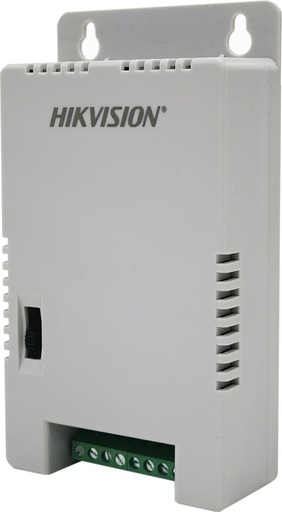

6 Way PSU DS-2FA1208-C16 (EUR) Hikvision has designed, manufactured and perfected this premium quality Power Supply Unit specifically for use in CCTV applications. It provides stable power with adjustable modes...

48 W, 12 VDC/1 A per channel
Over current/short circuit/over voltage protection
Good EMC performance
Compact size; applicable to cameras
150 to 285 VAC wide voltage input

Parameters
AppearanceWhite
Dimension144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30")
Operating Conditions0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
LED IndicatorGreen
Input150 to 285 VAC, 47 Hz to 63 Hz
Output12 VDC/1 A per channel
Ripple & Noise 150 mVp-p0.15 Vp-p (150 mV)
AC Input ConnectorC4
DC Output ConnectorDC Plug: grid terminal
Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation

Normal: 12 VDC

Long: 13.5 VDC

Ex-Long: 15 VDC

Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
Max.3000 faces capacity and Max.3000 cards
Supports TCP/IP

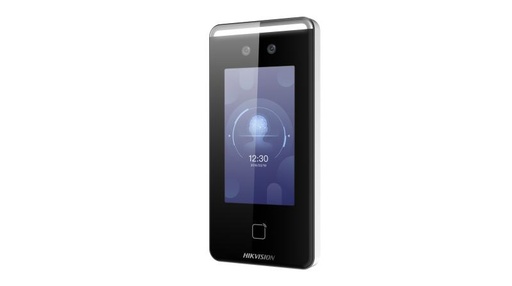

Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Supports ISUP5.0, ISAPI
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Two-way audio with client software, indoor station, and main station
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%; IP65


Display
Dimensions4.3-inch
TypeLCD
Operation methodCapacitive touch screen

Video
FOVHFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
Pixel2 MP (video stream: 720P)
Lens× 2

Audio
Tone qualityNoise suppression and echo cancellation

Network
Wired network10 M/100 M/1000 M self-adaptive

Interface
Network interface1
RS-4851
Wiegand1
Lock output1
Exit button1
Door contact input1
Power interface2-pin

Capacity
Card capacity3,000
Face capacity3,000
Event capacity150,000

Authentication
Card typeM1 card
Card reading frequency13.56MHz
Face recognition duration＜ 0.2 s
Face recognition accuracy rate＞99%
Face recognition distance0.3 to 1.5 m

General
buttonTouch Screen
Power supply method2 pin connecter
Power supply12 VDC, 2 A. (power adapter not included)
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity0 to 90% (No condensing)
Dimensions172.5 mm × 83.2 mm × 22.7 mm (6.79" × 3.27" × 0.89")
InstallationSurface mounting
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
PlatformHik-ProConnect and HikCentral Professional

Function
Face anti-spoofingSupport
Audio promptSupport
Time synchronizationSupport

Standalone access control fingerprint terminal
LCD display screen
3,000 fingerprints, 3,000 cards and 100,000 events storage
Built-in card reader for EM/Mifare1 card(optional)
Communication via TCP/TP and Wi-Fi
RS-485, wiegand interface
EHome for public network communication
Alarm input and output interface
Multiple time attendance status
General
Communication InterfaceTCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
Power Supply12 VDC/2 A
Audio1 Buzzer and 1 Loudspeaker
LED IndicatorPower/Status (Red/Green)
LCD Screen2.4-inch (320 × 240 LCD-TFT Display Screen)
Fingerprint CapacityUp to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
StorageUp to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records
Card Reading ModeNot Support
Input InterfaceExit Button × 1, Door Sensor × 1 and Alarm Input × 1
Output InterfaceRelay (Lock Output) × 1, and Alarm Output × 1
Operating SystemLinux
Fingerprint Comparing Mode1:1 and 1:N, N=3000
Card Reading Response Duration< 1 s
Fingerprint Authentication Duration< 1 s
FAR(False Accept Rate)≤ 0.001 %
FRR (False Rejection Rate)≤ 0.01 %
Fingerprint RecognizerOptical Fingerprint Recognizer Module
External Card ReaderStandard Wiegand26/34
Card Reading DistanceNot Support
KeyboardKeyboard (Back Light)
Reset Key× 1
Wi-FiSupport
Wiegand InterfaceOutput: Wiegand 26/34;Input: Wiegand 26/34
Transmission RateTCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
USBUSB 2.0; Type A

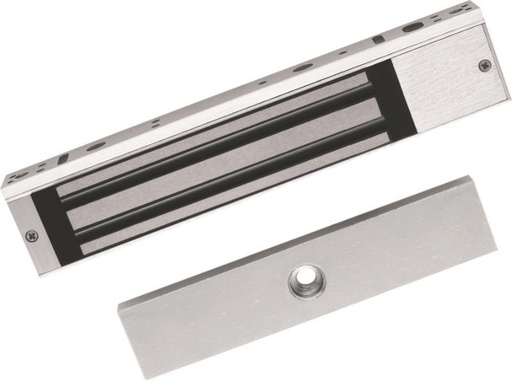

Magnetic lock supports static linear thrust of 280 kg (617 Lbs)
Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
Suitable for wooden door, glass door, metal door and fireproof door
LED indicator displays door lock status
Abrasion-proof materials


General
IndicatorGreen: Working Status
Power supply12 VDC, 340 mA × 2
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 95 % (relative humidity)
Dimensions

Lock Body: 238 mm × 45 mm × 25 mm (9.4" × 1.8\" × 1.0\")

Armature Plate: 182 mm × 38 mm × 12.5 mm (7.2 × 1.5\" × 0.5\")"
Weight2.1 kg (4.6 lb)
Material

Shell: hard Anodizing Electroplating Operated

Lock Body: eco-friendly Nickel Electroplating Operated

Armature Plate: eco-friendly Zinc Electroplating Operated
ThrustMax. 280 kg (617 lb)
Door typeSingle leaf, double leaf, wooden door, glass door, metal door, fireproof door

Magnetic Lock/General
Unlock methodCurrent Interruption
Surface temperature≤ Ambient Temperature +20 °C (68 °F)

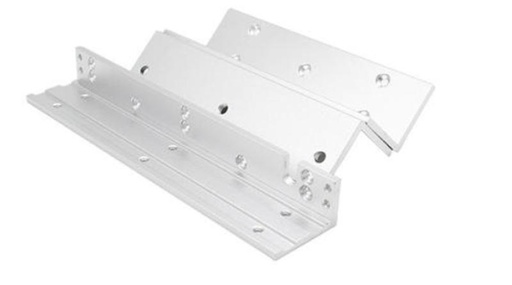

Value Series Magnetic Lock Bracket


General
Dimensions

L-bracket Dimension (L × W × H): 238 mm × 30 mm × 47 mm (9.4" × 1.2\" × 1.9\");

Z-bracket Dimension (L × W × H): 185 mm × 44 mm × 100 mm (7.3 × 1.7\" × 3.9\")"
Weight0.77 kg (1.7 lb)
MaterialShell: hard anodizing electroplated
Door typeWooden Door, and Metal Door

Bracket of Magnetic Lock/General
Suitable DoorWooden Door, and Metal Door

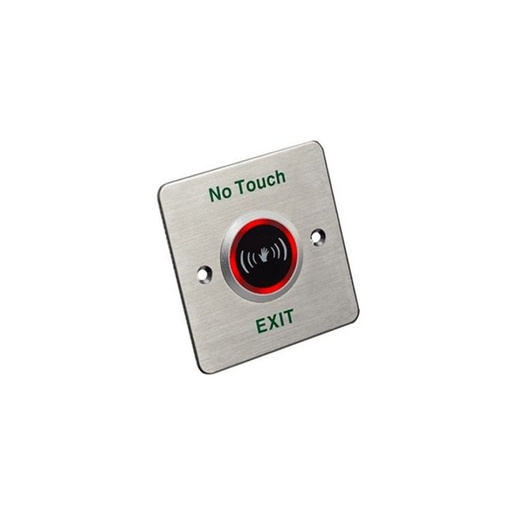

The Hikvision DS-K7P03 No Touch Exit Button is suitable for all kinds of narrow door frames. Featuring a stainless-steel panel and LED indicator, this product has passed the 1 million times ageing test.

Working temperature -20°C to 50°C
Working humidity 0 to 95% (relative humidity)
Current rating 1 A@30 VDC
Output contact NO/NC/COM contact
Already passed 1 million times ageing test
Stainless steel panel
Suitable for all kinds of narrow door frames
Time delay: 1 to 25 s (adjustable)
LED indicator status: green/red LED indicates working/standby

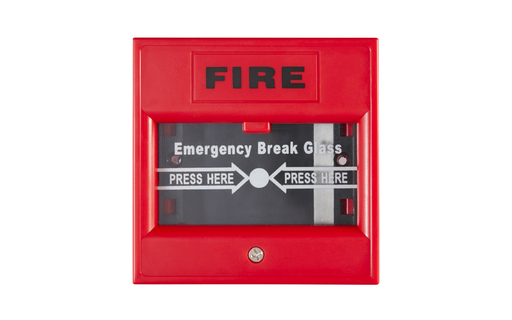

DS-K7PEB Emergency Break Glass Box isdesigned for exit doors and emergency doors. It ismade of fireproof material and has a sandblastfinish. Has Normally Open (N.O.), Normally Closed(N.C.), and common (COM) contact outputs.

Fireproof Material, Sandblast Finished
Output Contact:N.O/N.C/COM
Suitable for Exit Door, Emergency Door
3A @ 36 VDC Maximum
Optional Accessories: Glass/Transparent Cover Optional Accessories: Glass/Transparent Cover

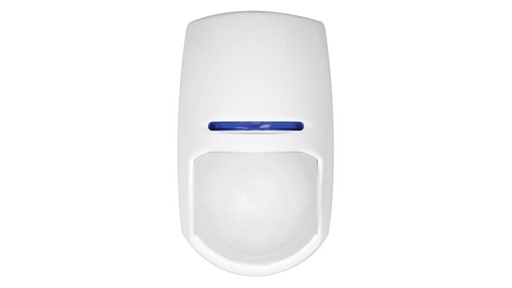

Wireless internal 25m longrang PIR detector

Detection range: 25 m x 25 m, 20 degrees

RF 868MHz

Offers reliable protection utilizing two-way wireless technology

PIR motion detection

Tamper alarm, intruder alarm

Communicates up to 800 m (in open areas)

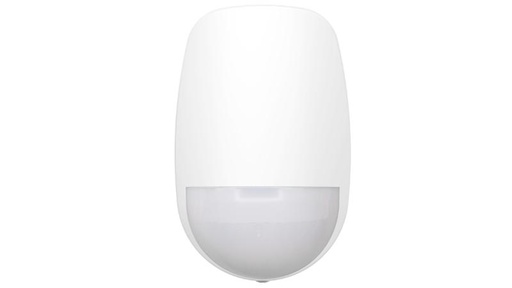

DS-PD2-P25-W(868M)

RF 868MHz
Two-way wireless
AES-128 encryption
Detection range: 10m*10m, 90 degrees
2 PIR+Microwave detection
Pet immunity: 24kg
Anti-masking, anti-blocking
Weather proof sealed optics
Communication distance: 800M (in open area)

Detection performance
Detection Range12m
Detection Angle90°
Velocity range0.25m/s ~ 3m/s
Pet Immunity24kg

Software features
Tamper-ProofSupport

Hardware features
IndicatorTri-color LED Indicator

RF transmission
RF Frequency868MHz
RF Range800m (in open area)

Electrical characteristics
Battery type2×3V 4700mAH Lithium Battery packs
Battery life span3 years

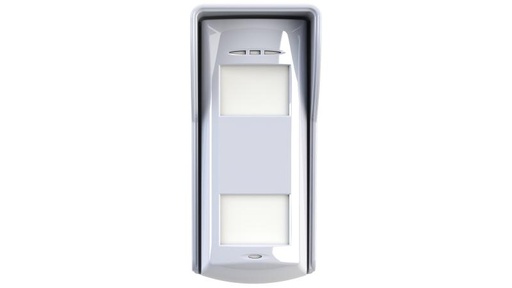

General
Operation temperature-25℃ ~ +60℃
Dimension(WxHxD)188mm*77mm*84mm
Weight300g (without bracket)
Application scenarioOutdoor
ColorWhite
Installation height1 ~ 1.5m
Installation methodWall mounted
BracketAdditional Wallbracket, Adaptor and Fixedbracket

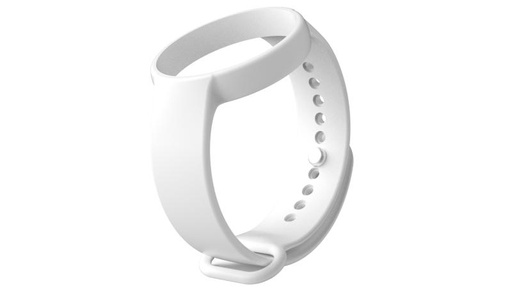

Wrist accessory for portable emergency button

Skin-friendly rubber

General

Shell MaterialSkin-friendly rubber

Dimension(WxHxD)38mm×255mm×12mm

Weight15g

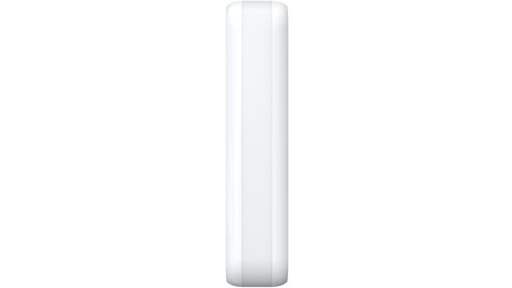

Slim design for window frame installation
IP65 weather resistance for outdoor application
Active IR anti-masking
Directional detection support
Multiple enrollment methods and easy installation
Frequency hopping against jamming for reliable transmission

Detection Performance
Detection MethodPassive Infrared;Microwave
Detection Range

Wall mount: 10 m

Ceiling mount: 5 m
Detection Angle5°
Detection Zones32
Detectable Speed0.3～2m/s
SensitivityAuto;Pet
White Light Filter6500lux
Microwave Frequency24GHz(24.15～24.25GHz)
Pet Immunity

Wall mount: 12 kg

Ceiling mount: None
Digital Temperature CompensationSupport
Creep Zone ProtectionSupport
Anti-maskingSupport

Feature
Digital ProcessingSupport
Sealed OpticsSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Directional DetectionSupport

Interface
Power SwitchPower up enrolling
LED IndicatorGreen (PIR), red (microwave), green+orange (mask), blue (alarm)

Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics
Standard Battery LifeUp to 5 years (standby time) (The battery working time can be
significantly reduced at low temperatures)
Power SupplyBattery powered
Battery TypeCR123A × 2
Typical Voltage3V

Long range with narrow angle detection
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission

3D optics including creep-zone protection, full coverage without dead angle
24G microwave to prevent wall penetration
Digital temperature compensation
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission
