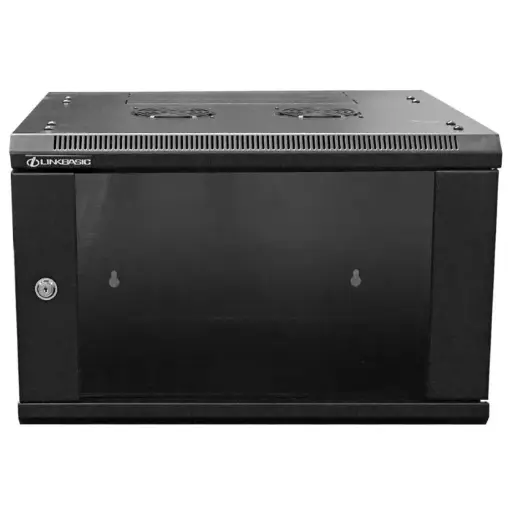

Linkbasic’s CAB-6US is a 6U Swing Frame wall box, manufactured from mild steel and powder coated with a glass front door. The Swing frame assembly allows easy access to the back of the cabinet with a 90-degree rotation from right to left.

*Note: Our wall boxes are supplied flat-packed.
Assembly: Supplied Flat Packed
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Swing Frame Wall-Mount
Shelves: Not Included
Size: 6U 550mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg

Dimensions: 370 x 600 x 550mm (H x W x D)
Weight: 23.40kg
Volumetric Weight: 26.20kg

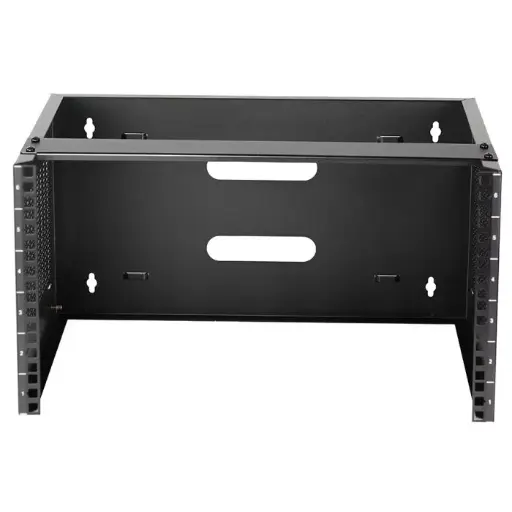

Linkbasic's CAB-6URW is a 6U wall-mount open rack with a maximum mounting depth of 350mm. It features a 2-post design and a maximum weight capacity of 20kg.
Assembly: Supplied Assembled
Fans: None
Material: Cold Rolled Steel; Powder Coated
Mounting: Wall Mount
Tray Compatibility: CAB-T300

Dimensions: 272 x 498 x 350 mm (H x W x D)

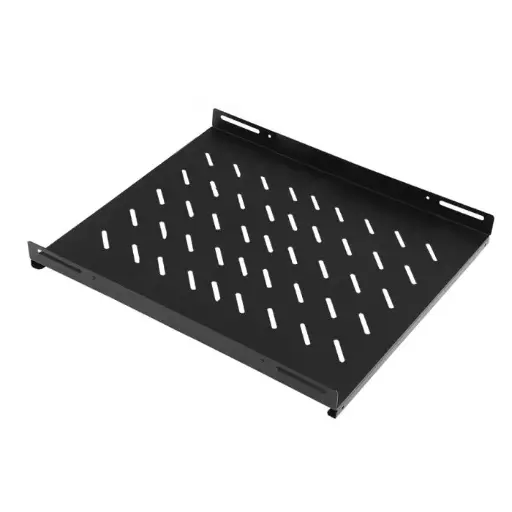

Linkbasic’s CAB-T700 is a 700mm, 1U, 19" Rear supported Tray which is compatible with our Linkbasic 27U 1M and 42U 1M deep cabinets.
Cabinet Compatibility: CAB-27U1M & CAB-42U1M
Material: SPCC cold-rolled steel; 1.2mm thickness
Weight Capacity: 50kg

Linkbasic's CAB-9U is a 9U wall box manufactured from mild steel, and is powder coated with a glass front door.

The CAB-9U is an ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite. Once assembled, the case can be stripped down to the basic framework in a matter of seconds via the slide and connect panels.

*Note: Our wallboxes are supplied flat-packed.
Assembly: Supplied Flat Packed
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Fixed Wall-Mount
Shelves: Not Included
Size: 9U 450mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg

Dimensions: 500 x 600 x 450mm (H x W x D)
Weight: 24.10kg
Volumetric Weight: 15.60kg

Linkbasic's CAB-9UB is a pre-assembled, powder-coated wall box manufactured from mild steel with a clear glass front door. This Linkbasic 9UB wall box is the ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite. Supplied fully assembled, the case can be stripped down to the basic framework in a matter of seconds via the slide and connect panels.
Assembly: Supplied Assembled
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Fixed Wall-Mount
Shelves: Not Included
Size: 9U 450mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg

Dimensions: 500 x 600 x 450 mm (H x W x D)
Weight: 17kg
Volumetric Weight: 39.60kg

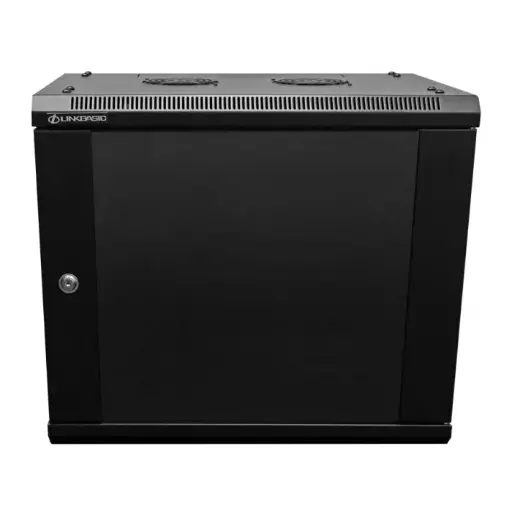

Linkbasic’s CAB-9US is a 9U Swing Frame wall box, manufactured from mild steel and powder coated with a glass front door. The Swing frame assembly allows easy access to the back of the cabinet with a 90-degree rotation from right to left.

*Note: Our wall boxes are supplied flat-packed.
Assembly: Supplied Flat Packed
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Swing Frame Wall-Mount
Shelves: Not Included
Size: 9U 550mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg

Dimensions: 505 x 600 x 550mm (H x W x D)
Weight: 28.20kg
Volumetric Weight: 26.20kg

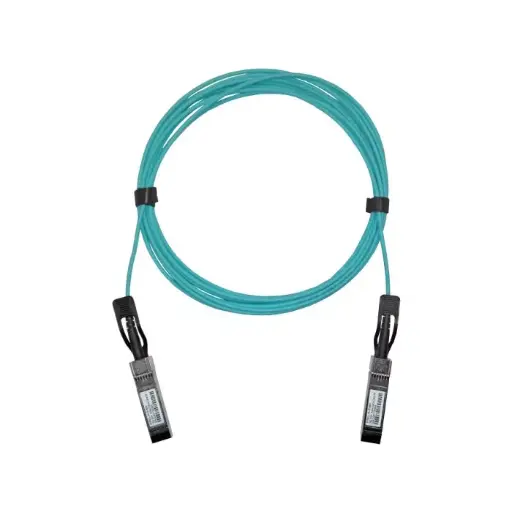

Linkbasic's SFP-AOC5 is a 5m Multi-Mode OM3 fibre cable with factory-terminated SFP connectors with transmission speeds up to 10Gbps. Ideal for high-capacity uplink between switches, routers and servers.
Cable Length: 5m
Connectors: 2x SFP Modules
Data Rate: 10Gbps
Form Factor: Active Optical Cable (OM3)
Mode: Multi-Mode
Wavelength: 850nm

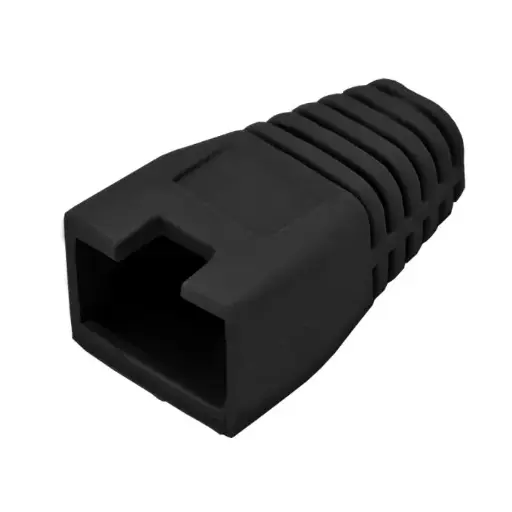

Linkbasic's Black RJ45 Boot provides plug tab protection and easy UTP cable-end colour identification.

*Note: Pre packed bags of 50 and 100 units are available

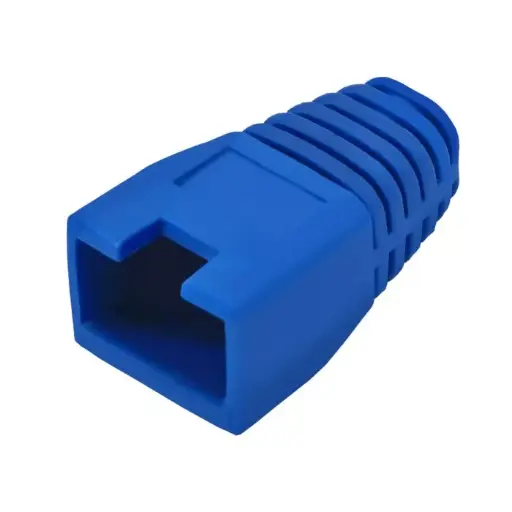

Linkbasic's Blue RJ45 Boot provides plug tab protection and easy UTP cable-end colour identification.

*Note: Pre packed bags of 50 and 100 units are available

Linkbasic's SFP-DQB100 copper break out cable offers up to 4x 25Gbps separate channels with an aggregate bandwidth up to 100Gbps.

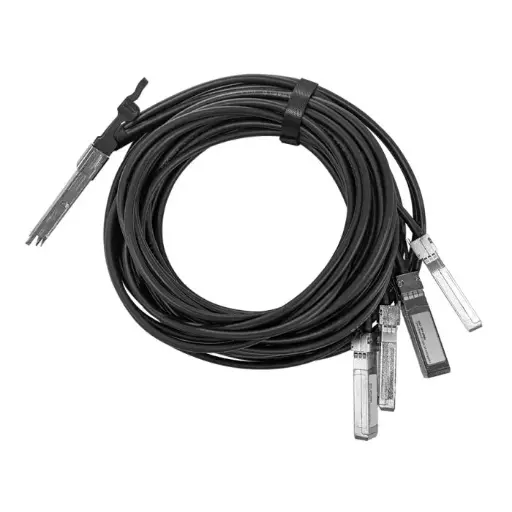

Linkbasic’s SFP-DQB4 copper break out cable offers up to 4x 10 Gbps separate channels with an aggregate bandwidth up to 40 Gbps.

Linkbasic's SFP-DQ1 DAC offers up to 40 Gbps bandwidth capacity. With low power consumption, the unit provides a cost-effective method to establish a 40G link between QSFP+ ports in uplink scenarios.

Linkbasic’s SFP-DC1 is a 1 metre high-performance SFP+ DAC designed for 10G Ethernet and 10G fibre applications. SFP+ copper assemblies provide a cost-effective uplink solution and simplify your deployment.

*Note: Compatible with MikroTik, Ubiquiti
Cable Length: 1M
Connectors: 2x SFP+ Modules
Data Rate: 10Gbps
Form Factor: Direct Attached
Mode: Copper
Wavelength: None

Linkbasic’s SFP-DC3 is a 3 metre high-performance SFP+ DAC designed for 10G Ethernet and fibre applications. SFP+ copper assemblies provide a cost-effective uplink solution and simplify your deployment.

* Note: Compatible with Mikrotik, Ubiquiti products.
Cable Length: 3M
Connectors: 2x SFP+ Modules
Data Rate: 10Gbps
Form Factor: Direct Attached
Mode: Copper
Wavelength: None

Linkbasic’s SFP-DC5 is a 5-metre high-performance SFP+ DAC designed for 10G Ethernet and fibre applications. SFP+ copper assemblies provide a cost-effective uplink solution and simplify your deployment.

* Note: Compatible with Mikrotik, Ubiquiti products.
Cable Length: 5M
Connectors: 2x SFP+ Modules
Data Rate: 10Gbps
Form Factor: Direct Attached
Mode: Copper
Wavelength: None

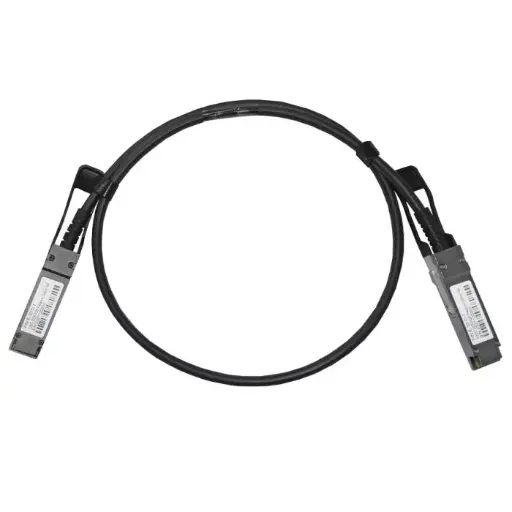

Linkbasic’s SFP-D100G1 is a 1 metre 100Gbps Twinax Copper DAC with factory-terminated QSFP28 connectors for transmission speeds up to 100Gbps. Ideal for high-capacity uplinks.
Cable Length: 1M
Connectors: 2x QSFP28 Modules
Data Rate: 100Gbps
Form Factor: SFP
Mode: Copper
Wavelength: None

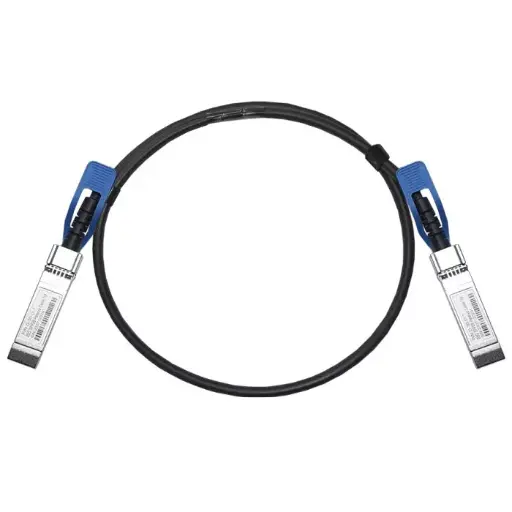

Linkbasic’s SFP-D25G1 is a 1-metre 25Gbps Twinax Copper DAC with factory-terminated SFP28 connectors for transmission speeds up to 25Gbps. Ideal for high-capacity uplinks.
Cable Length: 1M
Connectors: 2x SFP28 Modules
Data Rate: 25Gbps
Form Factor: SFP
Mode: Copper
Wavelength: None

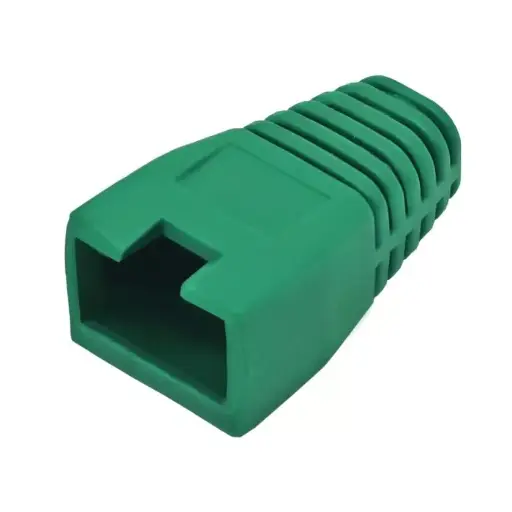

Linkbasic's Green RJ45 Boot provides plug tab protection and easy UTP cable-end colour identification.

*Note: Pre packed bags of 50 and 100 units are available

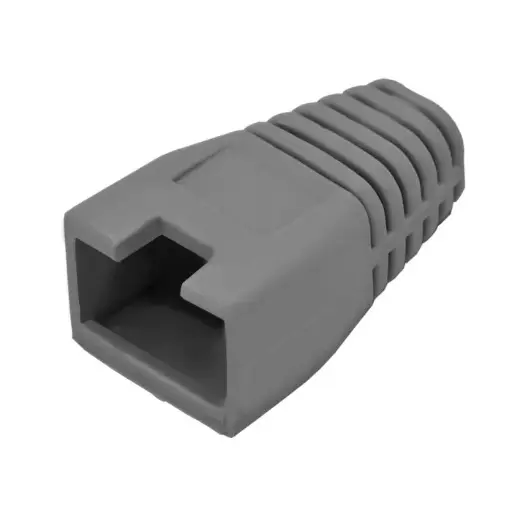

Linkbasic's Grey RJ45 Boot provides plug tab protection and easy UTP cable-end colour identification.

*Note: Pre packed bags of 50 and 100 units are available

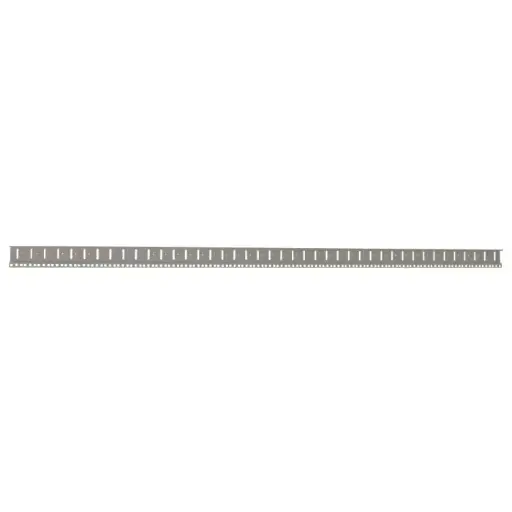

LinkBasic's CAB-MR27 is a 27U (1.2m) long, steel mounting rail that can be used in either the CAB-27U or CAB-27U1M. It is used to mount shelves, switches or other rack-mountable items/devices.

The rail is marked at every U-height in ascending order of U-height from both the bottom and top, so it can be used on either side of the cabinet and still have the correct marking in the correct place on the rail.
Colour: Grey
Material: Cold-rolled steel
