MikroTik hAP AC (RB962UiGS-5HacT2HnT)

The hAP AC is MikroTik's most universal home or office wireless device. It is a dual band device with Gigabit ports that allow you to take full advantage of 802.11ac technology while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.

The omni-directional antennas allows you to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for all devices in your home, office or public location.

Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and a SFP cage, for connecting active or passive optical network modules.

Product features:

Triple-chain wireless 2.4 GHz
Triple-chain wireless 5 GHz
720 MHz CPU
128 MB of RAM
5x Gigabit Ethernet ports
SFP cage
Passive PoE output on port 5
USB port for 3G/4G modem

MikroTik's RB-HAPL, HAP (home Access Point) Light is an ideal device for your apartment, house or office.
It supports button triggered WPS, eliminating the need for visitors or once-off users to type complicated passwords to gain wireless Internet access. It can also be made to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.

The device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others. The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 60°C
PoE Input: None
PoE Output: None
Power Input: 5V 1A USB Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V USB
USB Ports: 1x MicroUSB for Powering Device
Other: None

Dimensions: 113 x 89 x 28mm

MikroTik's RB-HAPLTC, Tower Case HAP (home Access Point) Light is an ideal device for your apartment, house or office. It supports button triggered WPS, eliminating the need for visitors or once-off users to type complicated passwords to gain wireless Internet access. It can also be made to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.

The device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others. The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. MicroUSB power supply is included.
Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop Tower Case
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 70°C
PoE Input: None
PoE Output: None
Power Input: 5V 1A USB Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V USB
USB Ports: 1x MicroUSB for Powering Device
Other: None

Dimensions: 124 x 100 x 54mm

MikroTik's RB-HAPACL, hAP ac lite is a Dual-concurrent Access Point, that provides simultaneous WiFi coverage for both 2.4GHz and 5GHz frequencies. It is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
Antenna Gain: 2.4GHz: 1.5dBi 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 433Mbps
Ethernet Ports: 5x 10/100
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature
PoE Input: 12V-30V (Passive PoE)
PoE Output: Passive PoE Pass-through on Port 5
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 8V-30V
USB Ports: 1x USB 2.0
Other: None
Dimensions: 113 x 89 x 28mm

MikroTik's RB-HAPACL Tower Case hAP ac lite is a Dual-concurrent Access Point, that provides simultaneous WiFi coverage for both 2.4GHz and 5GHz frequencies. It is equipped with a 650MHz CPU, 64MB RAM, 5x 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
Antenna Gain: 2.4GHz: 1.5dBi 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 433Mbps
Ethernet Ports: 5x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop Tower Case
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -30°C to 70°C
PoE Input: 10V-28V (Passive PoE)
PoE Output: Passive PoE Pass-through on Port 5
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 8V-30V
USB Ports: 1x USB 2.0
Other: None

Dimensions: 34 x 119 x 98mm

MikroTik's RB-HAPAC2 is a Dual-concurrent Access Point that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, and USB can be used for external storage or 4G/LTE modem.

The universal case design allows the unit to be positioned either horizontally or vertically.
Antenna Gain: 2.4GHz: 2.5dBi 5.8GHz: 2.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset & Mode
Max. Power Consumption: 15W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 50°C
PoE Input: 18V-28V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V-30V
USB Ports: 1x USB 2.0
Other: None

Dimensions: 34 x 119 x 98mm

MikroTik hAP ac³
A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage


Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

MikroTik's RB-HAPAXL is a 2.4GHz WiFi 6 router featuring a dual core 880MHz CPU, 4x Gigabit Ethernet Ports and a data rate of up to 600Mbps.
Antenna Gain: 2.4GHz: 4.3dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop
Operating System: RouterOS v7 (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: None
Power Input: 5V 2.4A USB-C Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V
USB Ports: None

Dimensions: 124 x 100 x 54 mm

MikroTik's RB-HAPAXLLTE6 is a 2.4GHz WiFi 6 router featuring 4x Gigabit Ethernet Ports, a dual-core ARM CPU and an integrated LTE6 modem.
Antenna Gain: 2.4GHz: 4.3dBi ; LTE: 4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 600Mbps ; LTE: 300Mbps Downlink; 50Mbps Uplink
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset & Mode
Max. Power Consumption: 12W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: None
PoE Output: None
Power Input: 5V USB Type C Power Supply (Included)
Serial Interface: None
SIM Slots: 1x Micro SIM
Supported Voltage Range: 5V
USB Ports: 1x USB Type C

Dimensions: 124 x 100 x 54 mm

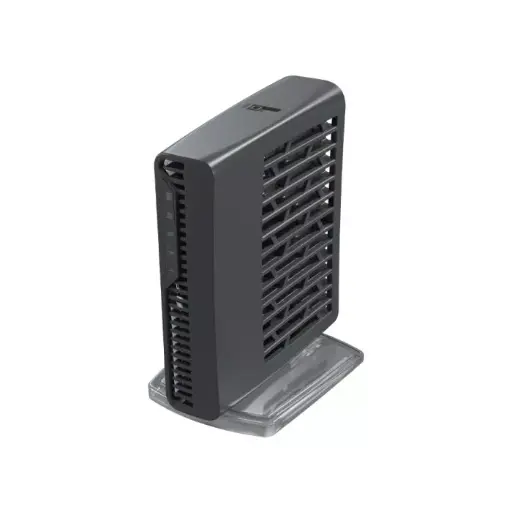

MikroTik's RB-HAPAX3 WiFi 6 router features a quad-core ARM 1.8GHz CPU, 4x Gigabit Ethernet Ports and 1x 2.5Gbps Ethernet Port and an aggregate data rate of up to 1800Mbps. It also features 1x USB 3.0 port for external storage or 4G/LTE modem as well as PoE input and output.

The universal case design allows the unit to be positioned either horizontally or vertically.
Antenna Gain: 2.4GHz: 3.3dBi 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps 5.8GHz: 1200Mbps
Ethernet Ports: 4x 10/100/1000 ; 1x 2.5Gbps
Hardware Button: Reset
Max. Power Consumption: 15W
Mounting: Desktop
Operating System: RouterOS v7 (Level 6 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18V-28V (Passive PoE)
PoE Output: Passive PoE on Port 1
Power Input: 24V 1.5A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V-28V
USB Ports: 1x USB 3.0
Other: None

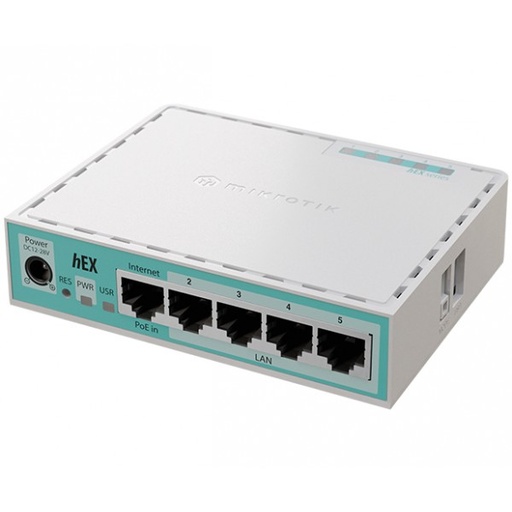

MikroTik's RB-HEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full-size USB port, affordable, small and easy to use. It features a very powerful dual-core 880MHz CPU and 256MB RAM, capable of all the advanced configurations supported by RouterOS.

IPsec Hardware encryption (~470Mbps) and dude server package is also supported. Its microSD slot provides improved r/w speed for database storage on a microSD card.
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Processor: 2 Core 880MHz , MT7621A
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 8V-30V
System Memory: 256MB
USB Ports: 1x USB 2.0
Other: 1x microSD Memory Card Slot

Dimensions: 113 x 89 x 28mm

MikroTik's RB-HEXLITE is a small five port ethernet router in a practical plastic case. It is well priced and the perfect choice when it comes to managing your wired home network.

No more compromise between price and features - RB-HEXLITE has both. With its compact design and clean looks, it will fit perfectly into any SOHO environment.
Ethernet Ports: 5x 10/100
Hardware Button: Reset
Max. Power Consumption: 2W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 6V-30V (Passive PoE)
PoE Output: None
Power Input: 12V 0.5A Power Supply (Included)
Processor: 1 Core 850MHz, QCA9533
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 6V-30V
System Memory: 64MB
USB Ports: None
Other: None

Dimensions: 113 x 89 x 28mm

MikroTik's RB-HEXPOE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fibre connectivity. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. This powerful 800MHz CPU is a cost-effective, small, easy to use and capable of all the advanced configurations supported by RouterOS. The maximum current is 1A per port and the Ethernet ports are shielded.
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at)
PoE Output: 12V-57V Passive PoE, 802.3af/at on Ports 2 to 5
Power Input: 24V 2.5A Power Supply (Included)
Processor: 1 Core 800MHz, QCA9557
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 12V-57V
System Memory: 128 MB
USB Ports: 1x USB 2.0
Other: None

Dimensions: 114 x 137 x 29mm

MikroTik's RB-HEXPOEL is a compact 5 port router featuring 5x shielded Fast Ethernet ports and 1x USB port. It accepts passive PoE input on Port 1 and Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit with a maximum of 1A per port.
Ethernet Ports: 5x 10/100
Hardware Button: Reset
Max. Power Consumption: 3W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 6-30V (Passive PoE)
PoE Output: 6-30V (Passive PoE) on Ports 2 to 5
Power Input: 24V 2.5A Power Supply (Included)
Processor: 1 Core 650MHz, QCA9531
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 6-30V
System Memory: 64 MB
USB Ports: 1x USB 2.0
Other: None

Dimensions: 113 x 89 x 28mm

The affordable, reliable router you know and trust is now stronger than ever. With the latest refresh, the MikroTik hEX delivers twice the performance for the same great price. Whether you’re looking for a rock-solid solution for your home or small office, hEX ensures seamless and stable connectivity with a powerful upgrade: we’ve increased the RAM from 256 MB to 512 MB, and replaced the CPU with a modern ARM64-bit dual-core workhorse!


Depending on your configuration, the performance increase can reach 100-134%! With 5x Gigabit Ethernet ports, hEX is the most cost-effective way to interconnect your main home or office devices. And you can use the full-sized USB port to add extra storage to stream high-quality media across devices!

MikroTik's RB-HEXS is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the RB-HEX, the RB-HEXS also features an SFP port and PoE output on the last port.

It is small and easy to use but comes with a very powerful dual-core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output on Ethernet port 5 and a 1.25G SFP cage.
thernet Ports: 5x 10/100/1000
Hardware Button: Rest
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at)
PoE Output: 12V-57V Passive PoE, 802.3af/at on Port 5
Power Input: 24V 1.2A Power Supply (Included)
Processor: 2 Core 880MHz, MT7621A
Serial Interface: None
SFP Ports: 1x 1.25Mbps
Supported Voltage Range: 12V-57V
System Memory: 256MB
USB Ports: 1x USB 2.0
Other: 1x microSD Memory Card Slot

Dimensions: 113 x 89 x 28mm

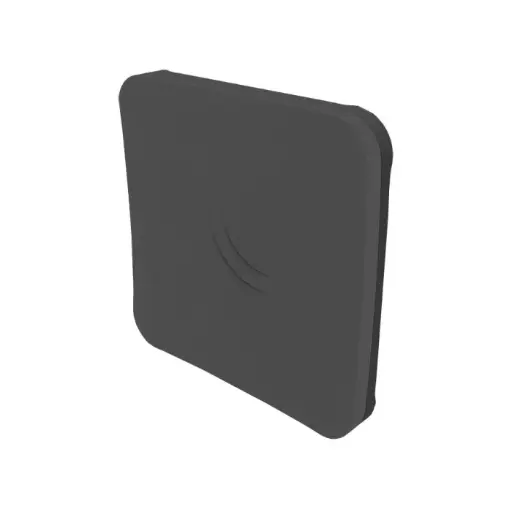

MikroTik's ANT-MLTE is a 5dBi LTE Omni Antenna operating on the 699 - 2690 MHz frequency range. The device housing is a flat design for easy mounting, but the antenna itself is omni directional and does not have to be accurately pointed, allowing for simple installation.
Antenna Gain: 5dBi
Beam-width: 360°
Connector: 2x SMA Female
Frequency Range: 699 to 2690MHz
Polarization: Vertical & Horizontal

Dimensions: 129 x 129 x 34mm

MikroTik's ANT-D530PA is a 5GHz 30dBi dish antenna and precision alignment mount built to accommodate the BaseBox series of products. It can also be used with any pole-mounted, 5GHz wireless device due to the adequate length of the included FlexGuide cable.

*Note: Radio not included
Antenna Gain: 30dBi
Beam-width: +/-2.5 deg
Connector: 2x RP SMA Female
Frequency Range: 4.7GHz-5.875GHz
Polarization: Vertical & Horizontal
Wind Loading: 181.4kg @ 200km/hr

Dimensions: Ø 700 x 450mm

PLEASE TAKE NOTE:
This product is the MikroTik Dish ONLY. Electronic devices/CPE’s such as the MikroTik BaseBox5 or Ubiquiti RocketM5 are sold separately and not included. Pictures for the mANT30 dish are for illustration purposes only and shows the CPE mounting position for items such as the BaseBox5.

MikroTik's RB-MANTBOX15AX is a dual band, WiFi 6 base station with an integrated sector antenna. The unit features a Gigabit Ethernet Port as well as a 2.5Gbps SFP slot and an aggregate data rate of up to 2974Mbps. On 2.4GHz the antenna offers 12dBi at 90°, and on 5.8GHz 15dBi at 60° coverage.

*Note: Maximum distance must be configured for client connections over 2km.
Antenna Gain: 2.4GHz: 12dBi ; 5.8GHz: 15dBi
Beam-width: 2.4GHz: 90°; 5.8GHz: 60°
Data Rate: 2.4GHz 574Mbps ; 5.8GHz 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-28 (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12-28V
USB Ports: 1x USB 2.0
Other: 1x 2.5Gbps SFP

Dimensions: 349 x 140 x 82 mm
