MikroTik's RB-MAP is a tiny sized, 2.4GHz wireless Access Point with full RouterOS capabilities. It is portable and accepts power from a wide variety of sources - USB, Passive or power jack. It also functions as a PoE injector - the second Ethernet port can provide up to 500mA of power to another device, for example, you can connect an SXT CPE device to it.
Antenna Gain: 1.2dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at) Or 5V 1A USB Power
PoE Output: 12V-57V PoE Pass-Through on Port 2
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V or 12V-57V
USB Ports: 1x MicroUSB
Other: None

Dimensions: 68 x 68 x 19mm

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.


The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.

MikroTik's RB-NETPOWER16P is an outdoor 18 port switch. It has 16x Gigabit Ethernet Ports, with PoE-out, and 2x SFP+ ports for 10G fibre uplinks. The sturdy and compact design allows this switch to be mounted in various environments, from damp attics and shafts to towers, masts and poles with the included hose clamps.

This product does not support voltage conversion but rather makes use of separate 24V and 48V input power supplies. The netPower will automatically select the correct PoE standard and voltage based on the devices connected to each port if both voltages are being used simultaneously. This can also be configured manually on the product interface.

*Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

thernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Pole-Mount
Operating System: RouterOS Level 5 License
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: 24v Passive PoE or 802.3af/at
Power Input: 2x DC Jacks (18V-30V or 48V-57V)
Processor: 98DX226S
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 18V-30V or 48V-57V
System Memory: 16MB
USB Ports: None

Dimensions: 303 x 212 x 78mm

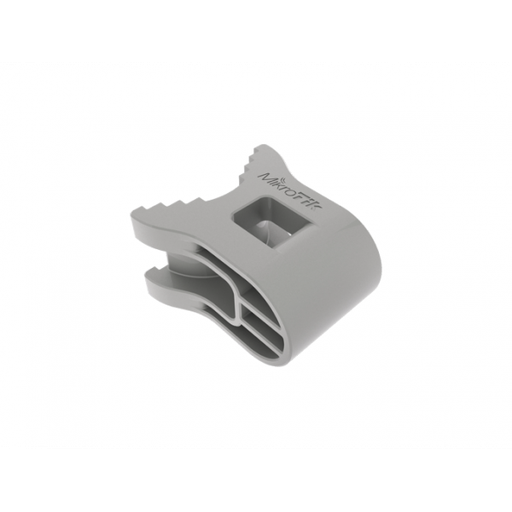

MikroTik quickMOUNT-X – additional axis for pole-mounting SXTsq devices


The new QM-X adapter enables vertical and horizontal adjustment on the pole. It is lightweight, easy to use, extremely durable and without any small parts that might break. Pick it up today for the price of a milkshake and enjoy simple positioning of your SXTsq devices like never before!


Specifications

Dimensions - 60 x 56 x 35 mm

Tube diameter - 30 mm

Max tube diameter to which mount can be attached - 60 mm

Maximum antenna weight - 2 kg

Compatible devices - SXTsq series, DISC 5

Material - Glass fibre reinforced nylon

MikroTik's RB-WAPLORA8 is an out-of-the-box LoRaWAN gateway solution. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers. It is an outdoor weatherproof wireless access point with 2.4GHz WLAN interface and Ethernet port that could be used as a back-end.
Antenna Gain: Lora: 2dBi Wireless: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop; Ceiling; Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: 9V-30V Passive PoE
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 Mini SIM
Supported Voltage Range: 9V-30V
USB Ports: None

Dimensions: 185 x 85 x 30mm

MikroTik's RB-WAPLTE is a small weatherproof wireless access point with a built-in LTE4 modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The RB-WAPLTE also has one 10/100 Ethernet LAN port for your wired devices.

LTE cards are connected to two internal antennas with u.FL connectors, making it possible to unplug the connectors and add your own external LTE antenna for larger coverage. The RB-WAPLTE has several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector for the car, bus or train. It includes LTE modem that supports International LTE bands 1,2,3,7,8,20,28,38 and 40.
Antenna Gain: LTE: 2 - 4.5dBi (with uFL connector) Wireless: 2dBi
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop; Ceiling; Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to +60°C
PoE Input: 9 – 30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Mini SIM)
Supported Voltage Range: 9V-30V
USB Ports: None

Dimensions: 185 x 85 x 30 mm

MikroTik's RB-WAPAC features a white outdoor weatherproof enclosure, 2x Gigabit Ethernet Ports, 802.11ac (WiFi 5) and a quad-core CPU. With multiple mounting options the RB-WAPAC can be wall, ceiling or pole mounted. It allows for an Ethernet cable to be run directly from the back of the case and is secured with an anti-vandal screw for added security.
Antenna Gain: 2.4GHz: 2.5dBi ; 5.8GHz: 2.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps ; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop, Ceiling, Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-57V Passive PoE ; 802.3af/at
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10-57V
USB Ports: None

Dimensions: 185 x 85 x 30 mm

MikroTik's RB-WAPLTE6AC is a small weatherproof, dual-band 802.11ac Access Point. LTE6 also enables carrier aggregation and allows the device to use multiple bands simultaneously, which is a great advantage when there are many LTE users in the area.
Antenna Gain: LTE: 4dBi ; Wireless: 2.5dBi
Beam-width: 360°
Data Rate: LTE: 300Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 License)
Operating Temperature: -30°C to 60°C
PoE Input: 18V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Micro SIM)
Supported Voltage Range: 10V-57V
USB Ports: None

Dimensions: 185 x 85 x 30mm

Mikrotik Level 4 (WISP) License


Purchase a MikroTik License upgrade should you wish to update a RouterBOARD which is running a Level 3 license, or if you are planning on running RouterOS on a computer.


For ease of use, a table is below highlighting the core differences between the license levels.


Level number 0 (Trial mode) 1 (Free Demo) 3 (WISP CPE) 4 (WISP) 5 (WISP) 6 (Controller)


Initial Config Support from MikroTik - - - 15 days 30 days 30 days
Wireless AP 24h trial - - yes yes yes
Wireless Client and Bridge 24h trial - yes yes yes yes
RIP, OSPF, BGP protocols 24h trial - yes(*) yes yes yes
EoIP tunnels 24h trial 1 unlimited unlimited unlimited unlimited
PPPoE tunnels 24h trial 1 200 200 500 unlimited
PPTP tunnels 24h trial 1 200 200 500 unlimited
L2TP tunnels 24h trial 1 200 200 500 unlimited
OVPN tunnels 24h trial 1 200 200 unlimited unlimited
VLAN interfaces 24h trial 1 unlimited unlimited unlimited unlimited
HotSpot active users 24h trial 1 1 200 500 unlimited
RADIUS client 24h trial - yes yes yes yes
Queues 24h trial 1 unlimited unlimited unlimited unlimited
Web proxy 24h trial - yes yes yes yes
User manager active sessions 24h trial 1 10 20 50 Unlimited
Number of KVM guests none 1 Unlimited Unlimited Unlimited Unlimited


Please note that you would need to provide the RouterBoard's SoftID in order to obtain a new license.

*All information regarding RouterOS listed on this page is subject to change without notice.

More info regarding MikroTik License levels is available on their Wiki page:

http://wiki.mikrotik.com/wiki/Manual:License

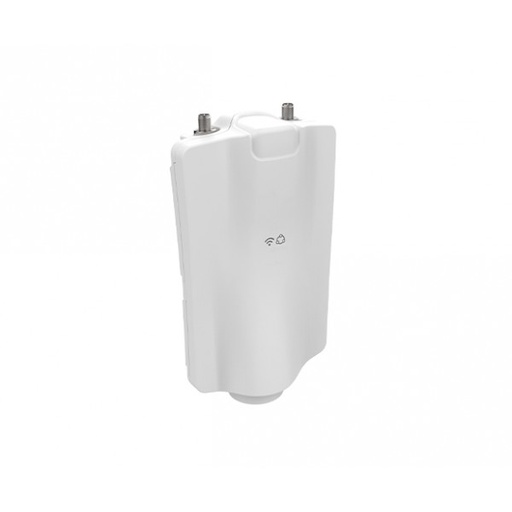

This is the A5X ROW (Rest of World) model which features an extended frequency range from 4.9GHz to 6.4GHz, and also offers GPS Sync for SRS (Spectrum Reuse Synchronization) deployments.

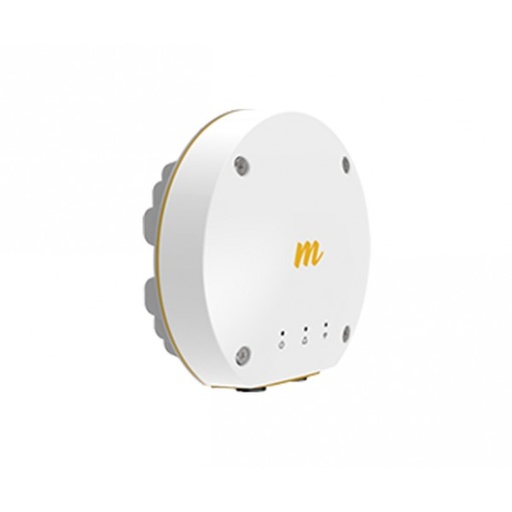

Mimosa B11 Point to Point Backhaul Radio 10.0 to 11.7 GHz
Product Code: MIM-B11

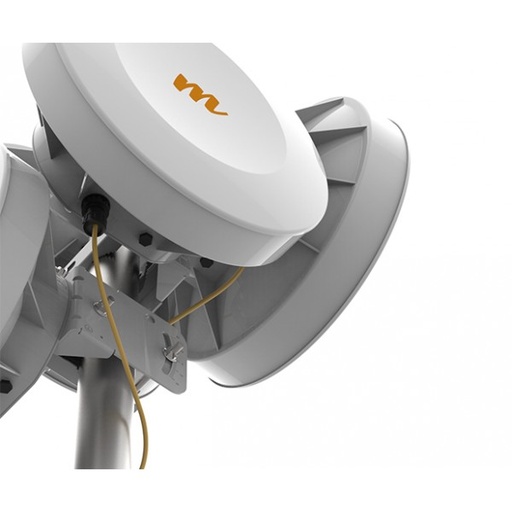

Mimosa B5 Point to Point Backhaul Radio 5.15 to 5.87 GHz
Product Code: MIM-B5

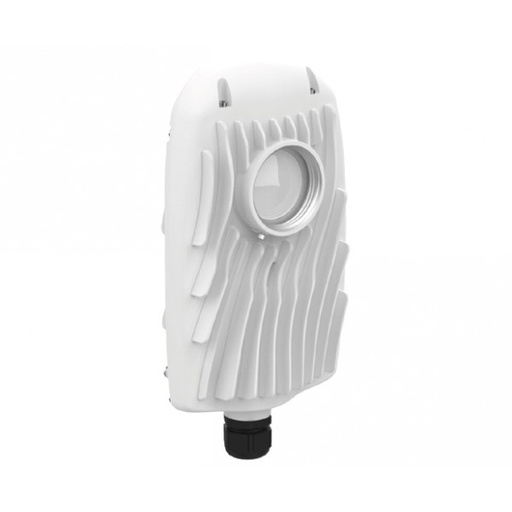

B5x - Point-to-Point (PTP) Backhaul Radio
Extreme Speed, Flexibility, and Reliability

The Mimosa B5x is one the industry’s fastest connectorized and unlicensed solutions. It’s ideal for short to medium range relay and tower links, custom-engineered collocation, and licensed 4.9 GHz spectrum. It’s modular, with the ability to connect N5-X compatible twist on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish—not included).

Fast and Flexible

As one of the highest capacity, unlicensed PTP solutions in the industry, it delivers up to 1.5 Gbps (IP). 160 MHz of aggregate channel capacity and GPS Sync mode provide flexibility for performance.

Ultra Rugged

Carrier-grade IP67 design allows the B5x to withstand the harshest of environmental conditions.

Double Reliability

Tame unlicensed spectrum interference via custom-engineered multi-channel and auto everything technology - as good as two smart links in one radio.

Easily Add New Links

The B5x is spectrum friendly. Unique, high-precision GPS Sync technology reuses the same channel network wide. Keep adding more capacity to more sites and waste less spectrum.

Extended Frequency

Rise above the noise with extended frequency support from 4.9–6.4 GHz.

Monitor With Ease

Assessing link health and identifying potential problems has never been easier. Links are instantly monitored from the Mimosa management platform

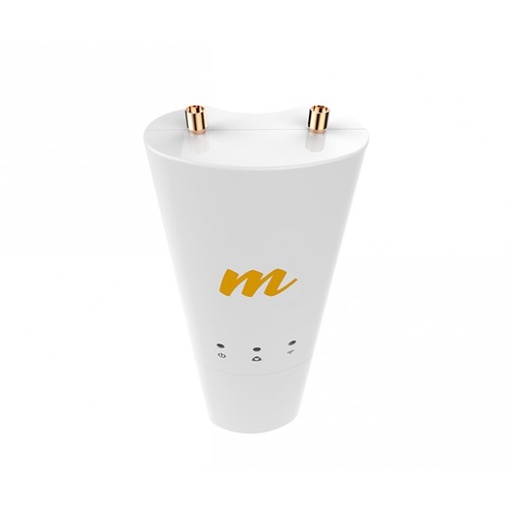

The Mimosa C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 700 Mbps of TCP throughput.


ADD SUBSCRIBERS WITH EASE

Auto-Provisioning together with the Mimosa Install App, now dramatically reduces subscriber installation time, automates device provisioning and allows seamless device integration into an ISP network.


FLEXIBLE ANTENNA OPTIONS

Connect to virtually any dual polarization antenna to custom-engineer longer distance client links. The C5c supports 2x2:2 MIMO dual connector RP-SMA for easy cabled antenna connectivity and can be mounted to any pole via hose clamps, or easily clipped onto antenna supporting compatible clip-on mounting bracket systems.


SPECTRUM REUSE SYNCHRONIZATION (SRS) CLIENT

In SRS mode, all uplink and downlink transmissions are scheduled by the Access Point (A5/A5c), which greatly improves medium access protocol (MAC) efficiency, allows interference coordination, and reduces jitter. In contrast, in WiFi-Interop mode, clients need to contend with each other to access the channel, which leads to reduced MAC efficiency, higher interference levels, and higher jitter.

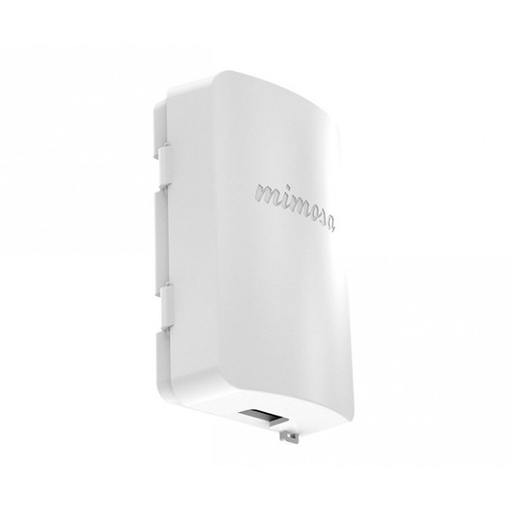

The Mimosa Gigabit Network Interface Device (NID) is a sleek and cost-effective surge protector or arrestor. It's designed for exterior wall mounting, providing outdoor technician access, ESD (electrostatic discharge) protection and grounding point for any installation that requires Ethernet cabling. The dust and water resistant design has a foam cable entry seal and a security fastener tie point.


Outdoor technician access, ESD protection and grounding point. Easy to install technician physical access interface, with surge suppression and grounding point — a must have for any Mimosa installation.
Compatible with:

C5c
C5x
A5x
B5
B5c
B11
A5c

Mimosa 24V 0.5A Gigabit POE adapter

This 24 V Power-over-Ethernet (PoE) injector is designed for a clean installation in any environment. Mimosa's PoE is the best power solution for your wireless installations.

Includes an EU power cable.
Supports the A5x, C5x, and C5c.
PoE Injector Specs
Power Output 24 V === 0.5 A
Power Input 0.5A @ 90 VAC 100-240 VAC ~ 50/60 Hz MAX 0.75 A

Mimosa N5-X12 twist-on 5GHz 12dBi antenna 70mm

The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

The N5X12 is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

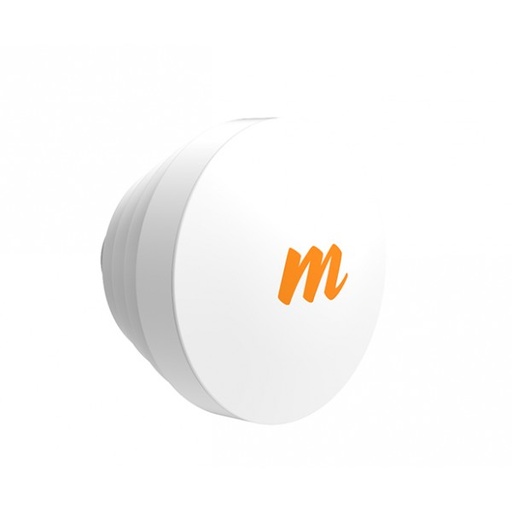

Mimosa N5-X16 twist-on 5GHz 16dBi antenna 160mm


The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.


The N5X16 is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.
