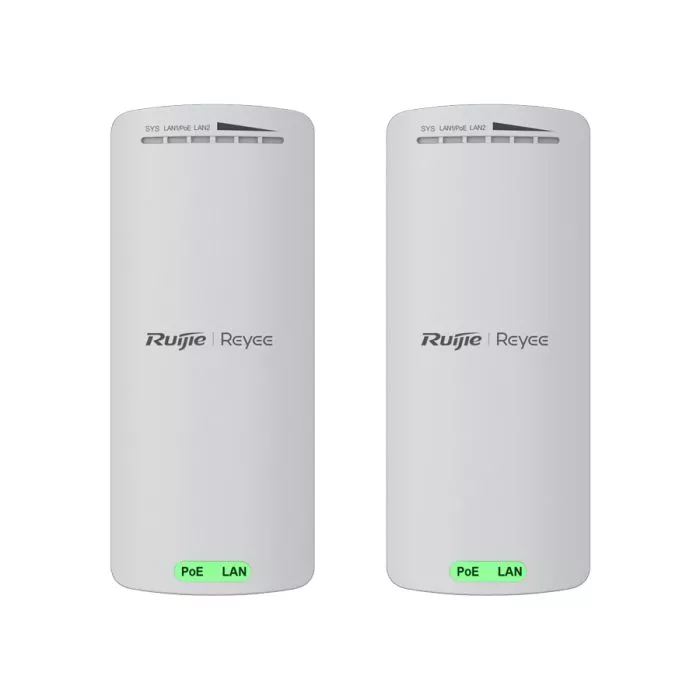

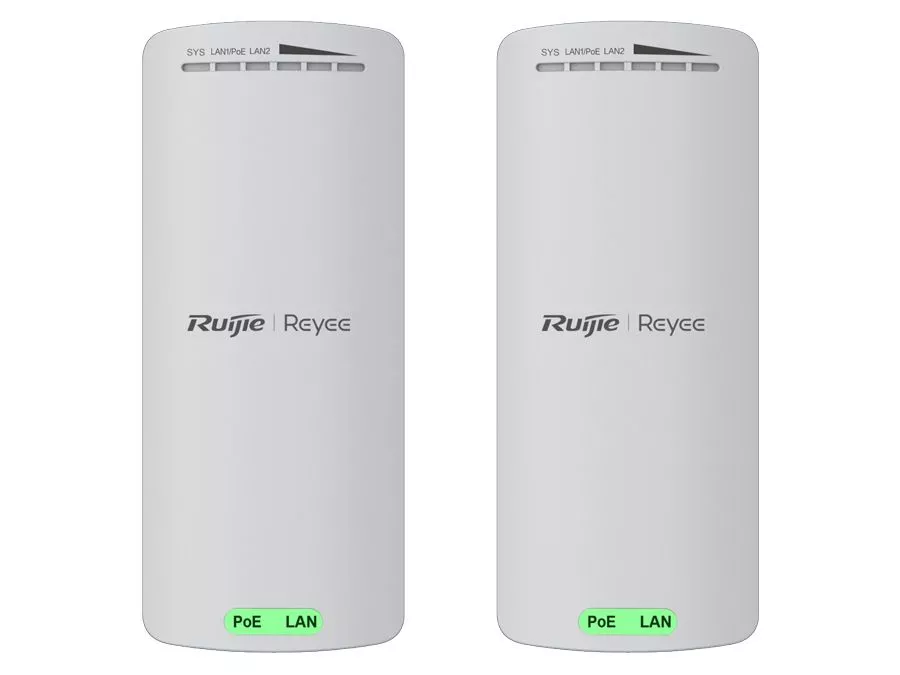

Reyee 2.4GHz 300Mbps 8dBi 70° Pre-Paired Kit | RG-EST100-E

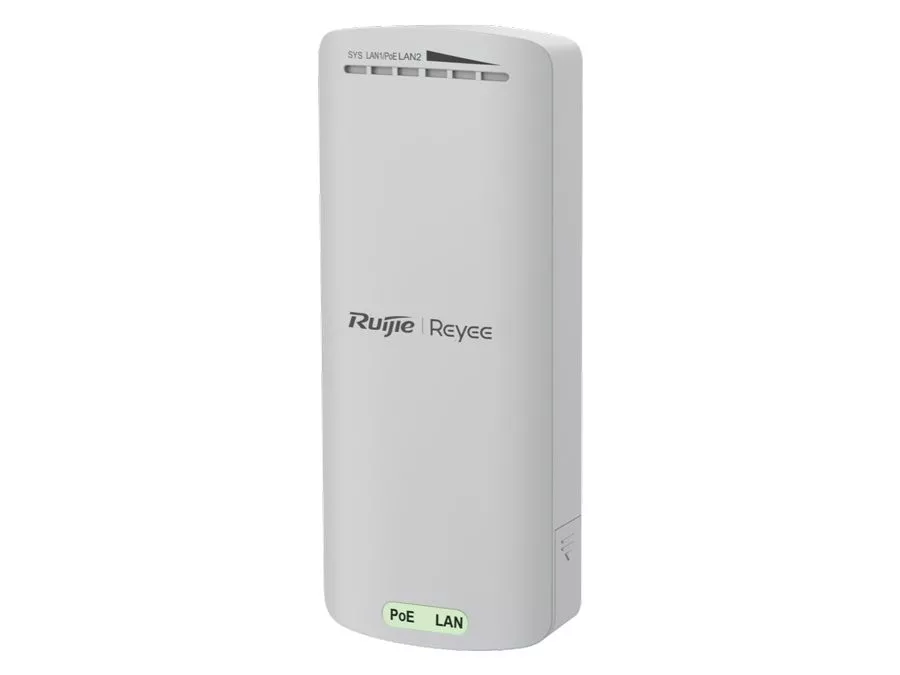

Introducing the Reyee RG-EST100-E, a 2.4GHz wireless bridge kit optimized for short-distance point-to-point (PTP) connections. Elevate your surveillance systems with stable, real-time data transmission even from 500 meters away. With factory-free configuration, you're spared from complex alignments. Its robust IP55 weatherproof design ensures unwavering performance in the harshest conditions, from bone-chilling cold to scorching heat.

Key Features:

500-Meter Real-Time Transmission: Stay connected and ensure stable signal for wireless connections even at a distance.

Plug-and-Play Design: Hassle-free setup without the need for intricate configurations or alignments.

Rugged & Weatherproof: IP55 rated to withstand the elements; confidently use it outdoors or in challenging environments like elevators.

Optimized for Surveillance: Support up to 10 x 3MP cameras at 100m and 5 x 3MP cameras at 500m, making it ideal for CCTV scenarios.

Remote Monitoring & Maintenance: With intuitive statistics viewable on Ruijie Cloud, you can monitor and manage your setup remotely with ease.

Better Visibility: Incorporated fluorescent stickers ensure easy recognition even in the dark.

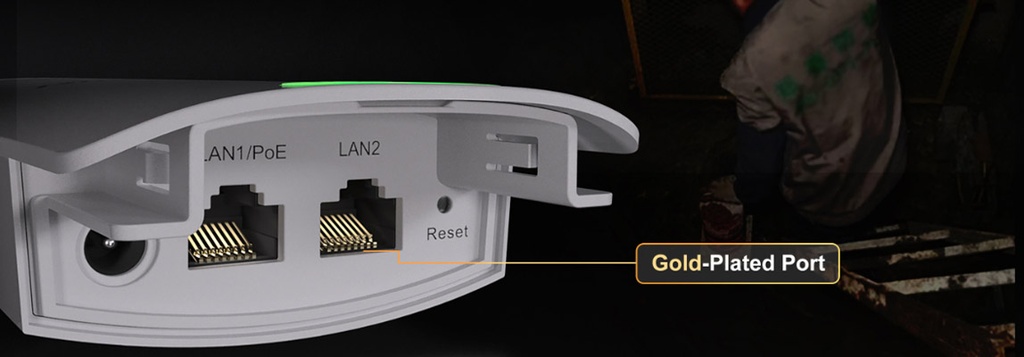

Rust-Proof for Reliability: A design focused on longevity, ensuring a lower failure rate.


With the RG-EST100-E, experience unparalleled stability in your wireless connections, designed with CCTV systems in mind.

Specifications
Antenna Gain: 2.4GHz: 8dBi
Beam-width: 70°
Data Rate: 2.4GHz: 300Mbps

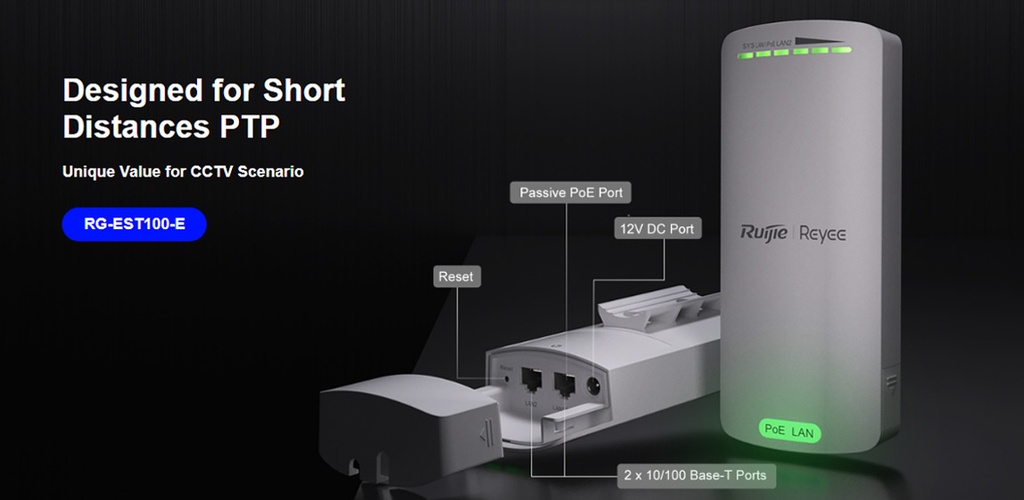

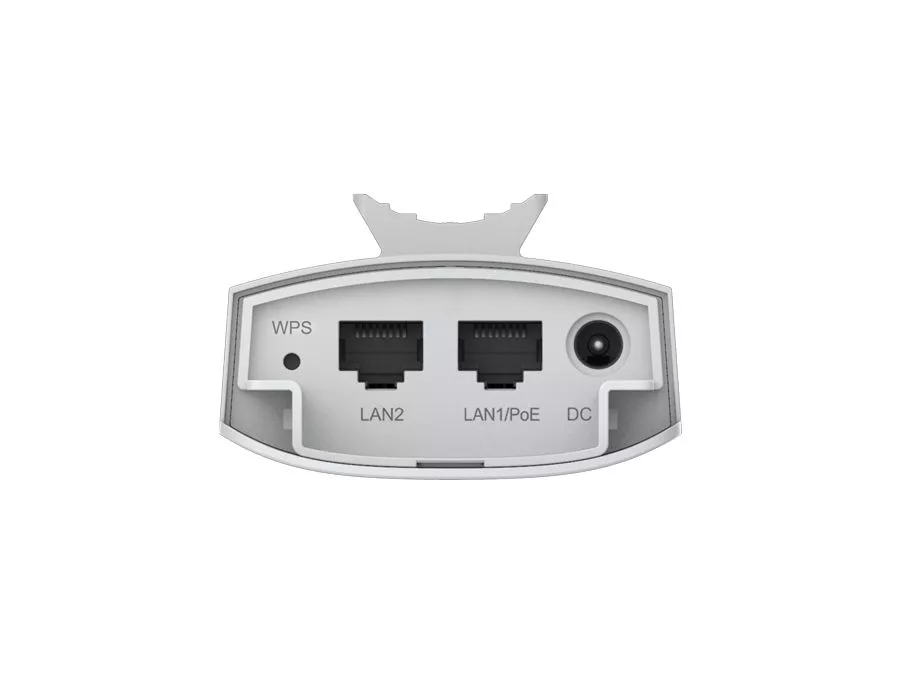

Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W

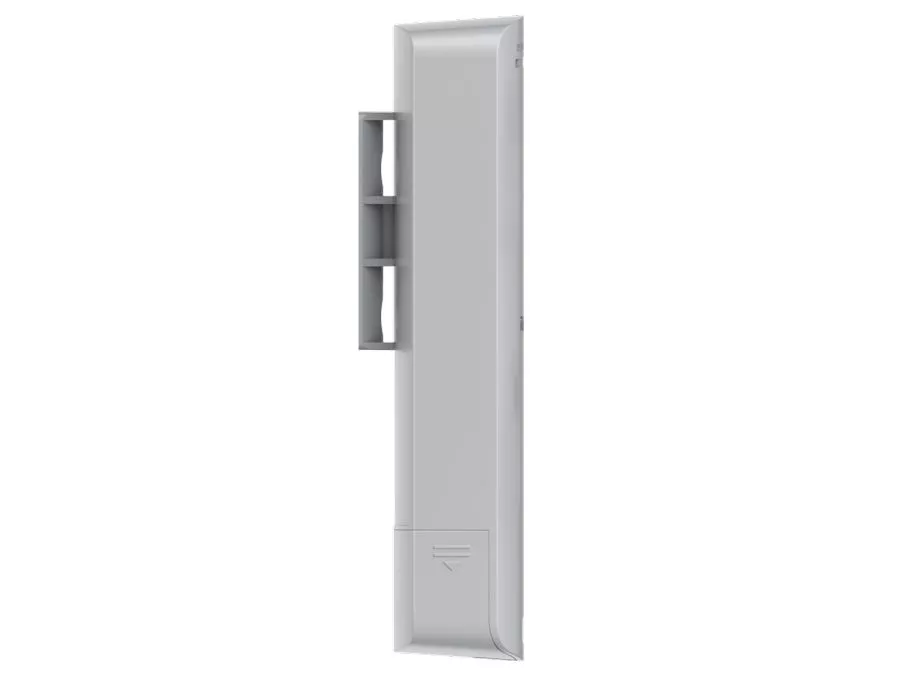

Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 60°C

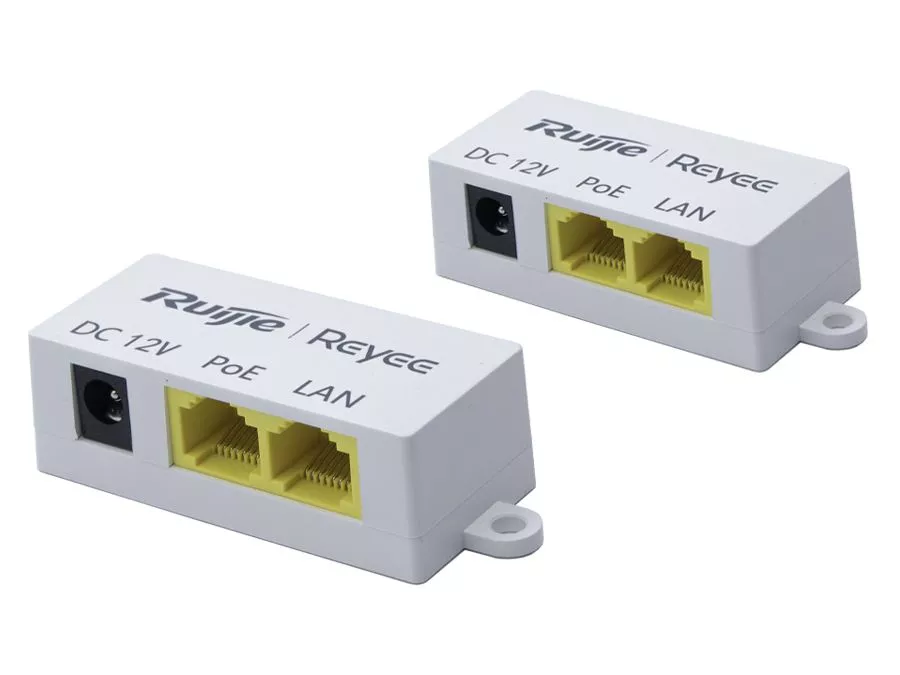

PoE Input: 12V Passive PoE
PoE Output: None

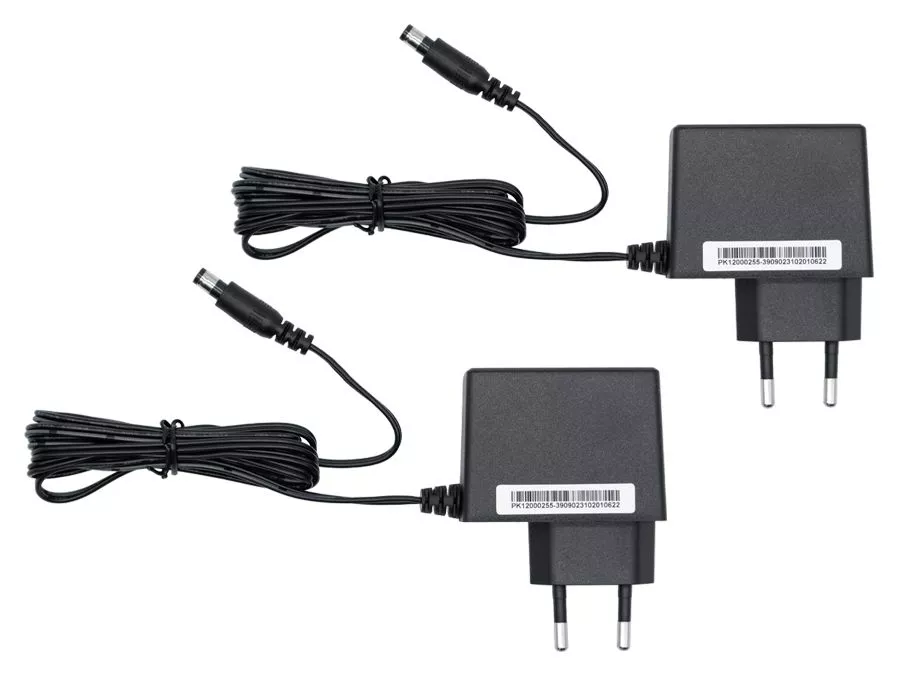

Power Input: 12V Passive PoE or 12V Power Supply (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V
USB Ports: None
Dimensions: 165.5 × 68.7 x 42mm
Weight: 0.30kg
