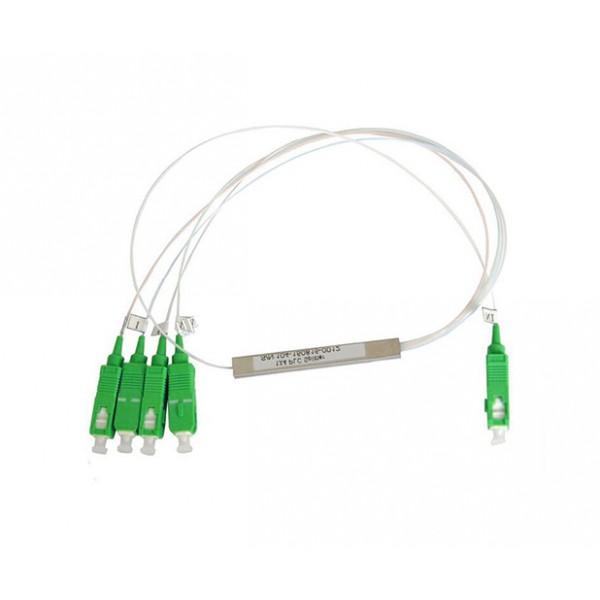

UltraLAN 1x4 SC/APC 900μm PLC Splitter

UltraLAN 1x4 SC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration
1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85
