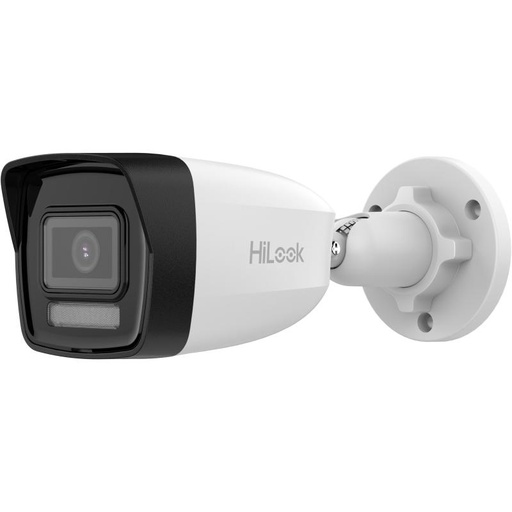

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
Lens MountM12
Iris TypeFixed
ApertureF1.0
MaterialFront cover: metal, body: plastic, bracket: plastic
Dimension69.8 mm × 67.9 mm × 172.9 mm (2.7" × 2.7" × 6.8")
Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Weight Approx. 490 g (1.1 lb.)
With Package Weight Approx. 710 g (1.6 lb.)

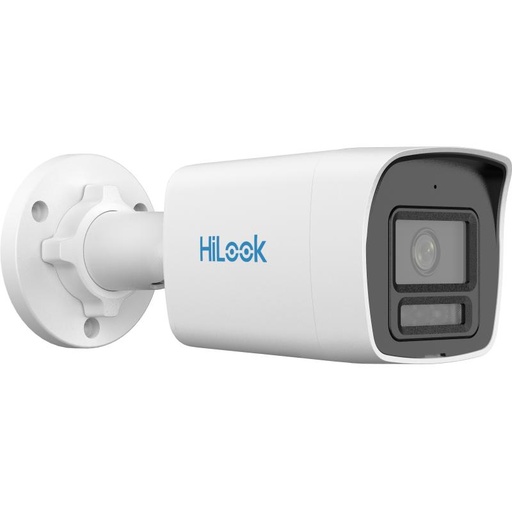

4 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength850 nm
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialMetal & Plastic
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 270 g (0.6 lb.)
With Package Weight Approx. 481 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensionØ141 mm × 99.9 mm (Ø5.6″ × 3.9″)
Package Dimension140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

HiLook 4-ch Mini 1U 4 PoE 4K NVR
Up to 8 channel IP cameras can be connected
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports decoding H.264+/H.264 multiple video formats
Up to 4-ch @ 1080p decoding capacity
1 HDD for continuous video recording
Video and Audio
IP video input8-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
HDMI/VGA output1-ch, resolution:1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output1-ch, RCA (Linear, 1kΩ)
Recording resolution4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)

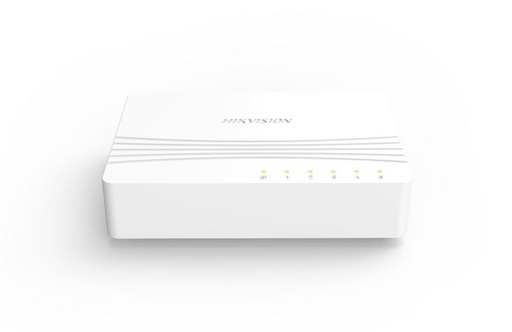

The HiLook 5-port, unmanaged, Gigabit desktop switch is designed for small-scale IP surveillance networks or networking applications.
The plug-and-play design simplifies installation without any configuration requirements, and its compact size minimizes the space required.


General
Dimensions (W × H × D)92.80 mm × 65.80 mm × 22.80 mm (3.65'' × 2.60'' × 0.90'')
ShellABS
Net Weight0.03 kg (0.07 lb)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity10%~90% RH non-condensing
Storage Temperature–40 °C to 70 °C (–40 °F to 158 °F)
Storage Humidity5%~90% RH non-condensing
Power Supply5 V DC, 0.6 A

Network Parameters
Ports5
Port Type10/100/1000 Mbps RJ45 ports
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Forwarding ModeStore-and-forward switching
MAC Address Table2 K
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps

HiLook Dome Camera THC-T150-P 5MP 20m IR Specifications:
Image Sensor 5MP High Performance CMOS Sensor
Resolution 2560 x 1944 Resolution
Lens 2.8mm Fixed Lens
IR 24/7 Color Imaging with F1.0 Aperture
Power Supply 12v DC 4.3w Consumption

High quality imaging with 6 MP resolution Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range Clear imaging even with strong back lighting due to 120 dB WDR technology Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) Provide real-time security via built-in two-way audio
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Water and dust resistant (IP67)
Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 106° to 35.6°, vertical FOV 55.9° to
20°, diagonal FOV 127.4° to 40.8°
Lens MountØ14
Iris TypeFixed
ApertureF1.6
DORI
DORID: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m
General
Power 12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 12.9 W
Material Metal
Dimension Ø105 mm × 285.8 mm (Ø4.13 × 11.25\")"
Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight Approx. 805 g (1.8 lb.)
With Package Weight Approx. 1405 g (3.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

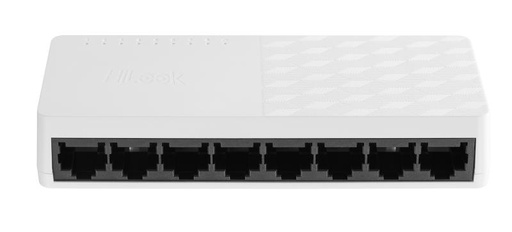

8 Port Gigabit Unmanaged Desktop Switch

8 x 10/100/1000 Mbps ethernet ports
Supports MDI/MIDX
Store-and-forward switching
Supports MAC address auto-learning and aging
Simple, compact body design
Supports desktop and wall-mounting
Plug & play, easy to use.
General
ShellABS
Net Weight0.093 kg (0.205 lb)
Gross Weight124.00 mm × 25.00 mm × 61.00 mm (4.88'' × 0.98'' × 2.40'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply5 VDC, 1 A
Installation ModeDesk-Mounted
Network Parameters
Ports8 × Gigabit RJ45 port
MAC Address Table4 K
Switching Capacity16 Gbps
Packet Forwarding Rate11.90 Mpps
Internal Cache1.5 Mbits

8 Port Fast Ethernet Unmanaged POE Switch

Unmanaged switch with 8 x 100 Mbps PoE ports, 1 x 100 Mbps RJ45 port
All ports support 6 kV lighting protection
60 W PoE power budget
Maximum transmission distance is 250 meters for port 1 to 8 in "extend" mode
MAC address auto learning and auto aging
General
Shell Metal material, fan-free design
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply48 VDC, 1.35 A
Storage humidity5% to 95% (no condensation)
Net weight0.35 kg (0.77 lb)
Gross weight0.89 kg (1.96 lb)
Dimension (L × H × D)170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle5 W
Network parameters
Port number8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table2 K
Switching capacity1.8 Gbps
Packet forwarding rate1.339 Mpps
Internal cache1 Mbits
High priority ports Ports 1 to 2
Ports for long-distance transmission Ports 1 to 8

HiLook 8-ch 1080p Lite 1U H.265 eSSD DVR
Powered by eSSD technology
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
Scene-Adaptive Bitrate Control video compression
Up to 1080p Lite@15 fps encoding capability
Low power consumption
Audio via coaxial cable
Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
Video and Audio
IP Video Input
2-ch
Up to 5 MP resolution
Support H.265+/H.265 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input8-ch via coaxial cable
Audio Output1-ch via HDMI
Synchronous playback8-ch
Recording
Video CompressionH.265 Pro/H.265
Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame Rate
Main stream:
1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
Note:
1080p Lite/720p is 15 fps by default
Sub-stream:
CIF/QVGA@15 fps
Video Bitrate According to the actual scene, scene-adaptive bitrate control technology would automatically allocate appropriate bitrate to ensure the stability of recording period.

General
Power Supply12 VDC, 1 A
Consumption≤ 6.2 W (with eSSD)
Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
Working Humidity10% to 90%
Dimension (W × D × H)152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
Weight≤ 0.5 kg (with eSSD, 1.1 lb.)

THC-B150-M5 MP Fixed Mini Bullet CameraHigh quality imaging with 5 MP, 2560 × 1944 resolution2.8 mm and 3.6 mm fixed focal lensUp to 20 m IR distance for bright night imagingOne port for four switchable signals (TVI/AHD/CVI/CVBS)Water and dust resistant (IP66)

Short Specifications:

Image Sensor 2MP High Performance CMOS Sensor
Resolution 1920 x 1080 Resolution
Lens 2.8mm Fixed Lens
IR 24/7 Color Imaging with F1.0 Aperture
Power Supply 12v DC 2.4w Consumption

Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)

Camera
Image Sensor1/2.8" progressive scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC
ON),
0 Lux with IR
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Zoom25x optical, 16x digital
Lens
Focal Length4.8 mm to 120 mm, 25× optical
FOV
Horizontal field of view: 57.6° to 2.5° (Wide-Tele),
Vertical field of view: 34.4° to 1.4° (Wide-Tele),
Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
FocusAuto, semi-auto, manual
ApertureF1.6 to F3.5
Zoom SpeedApprox. 3.2 s (optical lens, wide-tele)
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 100 m
Smart Supplement Light Yes
PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)From -15° to 90° (Auto-flip)
Pan Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Tilt Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Proportional Pan Yes Presets300 Preset Freezing Yes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan PTZ Status DisplayYes Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust Power-off MemoryYes

General
Power
12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4
Max.:18 W (IR Max.6 W)
DimensionØ 165.9 mm × 290 mm (Ø 6.53" × 11.42")
WeightApprox. 2.5 kg (5.51 lb)
MaterialADC 12, PC+10% GF
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

8 Independent 100MPS POE ports; Video Content Analytics; 1-Ch Audio input; HDMI and VGA output at up to 1920×1080P; 1x SATA interface(Up to 6TB); Mini 1U case; 12VDC
Description
NVR-108-B
8-ch Mini 1U 4 PoE 4K NVR
Connectable to the third-party network cameras
Up to 8 network cameras can be connected
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
HDMI/VGA output at 1080p resolution
2-ch playback at 4 MP resolution or 4-ch at 1080p resolution
1 SATA hard disk can be connected with 6TB capacity
HDD quota management: different capacity can be assigned to different channel
Supports line crossing detection and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the
playback efficiency
One-key operation: automatically search, modify and add IP cameras after device is
activated
Hik-Connect and DyDDNS for easy network management
100 Mbps Ethernet network interface

General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)

16 Port Fast Ethernet Unmanaged POE Switch
Unmanaged switch with 16 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
130 W PoE power budget
Maximum transmission distance is 250 meters for port 9 to 16 in "extend" mode
MAC address auto learning and auto aging
General
Shell Metal material
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Storage humidity5% to 95% (no condensation)
Net weight1.8 kg (4.0 lb)
Gross weight2.58 kg (5.69 lb)
Dimension (L × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle20 W

Network parameters
Port number16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table4 K
Switching capacity7.2 Gbps
Packet forwarding rate5.356 Mpps
Internal cache2.75 Mbits
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 9 to 16
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE portPorts 1 to 16
Max. port power30 W
PoE power budget130 W
Max. power consumption150 W

Hikvision 16-ch 1080p Mini 1U H.265 AcuSense DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 6 MP)
Encoding ability up to 3K/5M Lite @ 12 fps

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported
Perimeter Protection
Line Crossing Detection/Intrusion Detection4-ch
Facial Detection
Facial Detection and CaptureFace picture detection, face picture search
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Network
Remote Connection128
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface
General
Power Supply12 VDC, 2A
Consumption≤ 24W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Weight≤ 1 kg (2.2 lb)

Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

32 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/ 5MP Lite@12fps
Up to 40 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Quick search by object or event type is supported.
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search.
4-ch face picture capture
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

Hikvision 7100 Value Series 4-ch 1080P AcuSense 1U Mini DVR iDS-7104HQHI-M1/S

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Up to 2-ch Human/Vehicle Analysis
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
4-ch BNC interface, supporting coaxitron connection
Audio via coaxial cable
Up to 6-ch IP camera inputs (up to 6 MP)
1x RJ45 10/100 Mbps self-adaptive Ethernet interface (Additional switch required for IP Camera's)
Encoding ability up to 3K/5M Lite @ 12 fps
2x USB 2.0 Real panel

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 3K/5 MP Lite resolution
Storage and Playback

1x SATA interface (up to 6 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Hikvision 4-ch 720p Mini 1U H.265 DVR
Smart Function

Deep learning-based motion detection 2.0

Compression and Recording

H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs

Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Playback

Smart search for efficient playback

Network & Ethernet Access

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 2 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
1 SATA interface - Up to 10 TB capacity (HDD not included)

General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 0.8 kg (without HDD, 1.8 lb.)

Hikvision 7100 Series 16-ch 720p Mini DVR DS-7116HGHI-M1 - 16 channels and 1 HDD 1U Ausens DVR, Efficient H.265 pro+ compression technology, encoding ability up to 3K/5M Lite @ 12 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 24 network cameras can be connected.

Product Overview

The DS-7116HGHI-M1 is a 16-channel 720p Mini 1U H.265 DVR featuring deep learning-based Motion Detection 2.0 for accurate human and vehicle classification, reducing false alarms. It supports multiple video inputs including HDTVI, AHD, CVI, CVBS, and up to 18 IP channels at 5MP resolution, with efficient H.265 Pro+ video compression for reduced storage needs. With up to 1080p Lite encoding at 15 fps, audio via coaxial cable, and a maximum 1200m transmission distance for 720p HDTVI signals, it offers versatile, high-quality surveillance recording and playback.

Features

•Smart Function
Deep learning-based motion detection 2.0
•Compression and Recording
H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
•Storage and Playback
1x SATA interface (up to 10 TB capacity)
Smart search for efficient playback
•Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Specifications

•Product Code: DS-7116HGHI-M1
•Description: Hikvision 7100 Series 16-ch 720p Mini DVR
•Deep learning-based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Max. 1200 m for 720p HDTVI signal
•Encoding ability up to 1080p lite @ 15 fps
•Audio via coaxial cable
•Up to 18-ch IP camera input (up to 5 MP)
Dimension (W × D × H) 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Weight≤ 1.8 kg (without HDD, 4.0 lb.)

Hikvision 7100 Series 8-ch AcuSense 1080p Mini 1U DVR

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 4 MP Lite resolution

Storage and Playback

1 SATA interface (up to 10 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
2x USB 2.0
Audio via coaxial cable
Up to 12-ch IP camera inputs (up to 6 MP)
Up to 1080p@15 fps encoding capability
General
Power Supply12 VDC, 1.33 A
Consumption≤ 12 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 1 kg (without HDD, 2.2 lb.)
