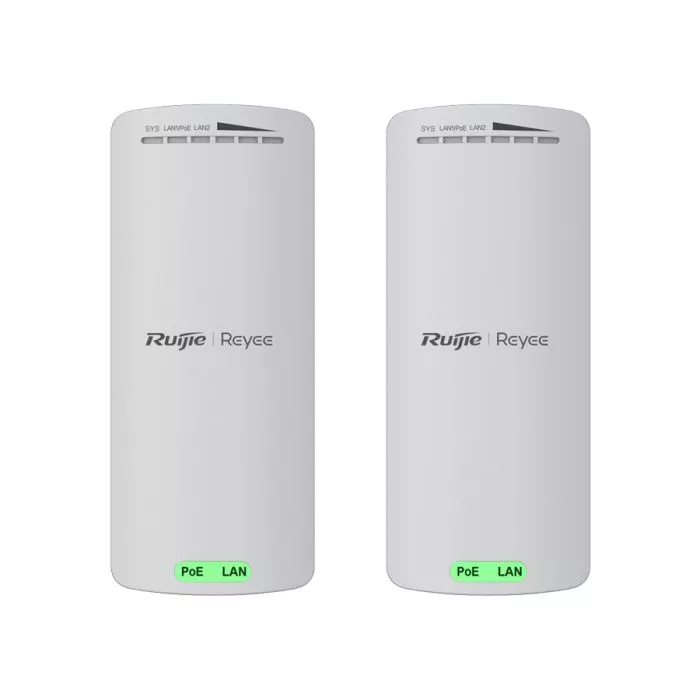

Introducing the Reyee RG-EST100-E, a 2.4GHz wireless bridge kit optimized for short-distance point-to-point (PTP) connections. Elevate your surveillance systems with stable, real-time data transmission even from 500 meters away. With factory-free configuration, you're spared from complex alignments. Its robust IP55 weatherproof design ensures unwavering performance in the harshest conditions, from bone-chilling cold to scorching heat.

Key Features:

500-Meter Real-Time Transmission: Stay connected and ensure stable signal for wireless connections even at a distance.

Plug-and-Play Design: Hassle-free setup without the need for intricate configurations or alignments.

Rugged & Weatherproof: IP55 rated to withstand the elements; confidently use it outdoors or in challenging environments like elevators.

Optimized for Surveillance: Support up to 10 x 3MP cameras at 100m and 5 x 3MP cameras at 500m, making it ideal for CCTV scenarios.

Remote Monitoring & Maintenance: With intuitive statistics viewable on Ruijie Cloud, you can monitor and manage your setup remotely with ease.

Better Visibility: Incorporated fluorescent stickers ensure easy recognition even in the dark.

Rust-Proof for Reliability: A design focused on longevity, ensuring a lower failure rate.


With the RG-EST100-E, experience unparalleled stability in your wireless connections, designed with CCTV systems in mind.

Specifications
Antenna Gain: 2.4GHz: 8dBi
Beam-width: 70°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 60°C
PoE Input: 12V Passive PoE
PoE Output: None
Power Input: 12V Passive PoE or 12V Power Supply (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V
USB Ports: None
Dimensions: 165.5 × 68.7 x 42mm
Weight: 0.30kg

Reyee's RG-NBS24G4S is a Layer 2+ smart switch featuring 24x Gigabit Ethernet Ports and 4x 1.25Gbps SFP Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 25W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 × 165 × 44mm
Ean code 2000111121279
Gross weight (kg) 22.00

Reyee's RG-NBS24P2S is a Layer 2+ smart switch featuring 24 Gigabit 802.3af/at PoE Ports and 4 x1.25Gbps SFP Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 × 293 × 44mm

Reyee's RG-ES228GP is a 26 port Layer 2 managed Gigabit switch with 24x 802.3af/at PoE ports, 2x Gigabit and 2x SFP uplink ports. The switch offers a 370W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 26x 10/100/1000
Hardware Button: None
Max. Power Consumption: 21W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100 to 240V
Dimensions: 440 x 214.9 x 44 mm
Weight: 4kg

Reyee's RG-NBS48P4XS is a Layer 2+ smart switch featuring 48 Gigabit 802.3af/at PoE Ports and 4 x10 Gbps SFP+ Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 48x 10/100/1000
Hardware Button: None
Max. Power Consumption: 48W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 50°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 48
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10 Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 x 357.6 x 43.6 mm
Weight: 5.4kg

Reyee's RG-EG105GP is a cloud-managed router featuring 5x Gigabit Ethernet Ports with up to x2 WAN ports and 4x 802.3af/at PoE ports. It supports up to 100 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 4x 802.3af/at on Ports 1-4
Power Input: 54V 1.11A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 220V
System Memory: 128MB
USB Ports: None

Dimensions: 206.5 x 108.5 x 28mm
Weight: 840g

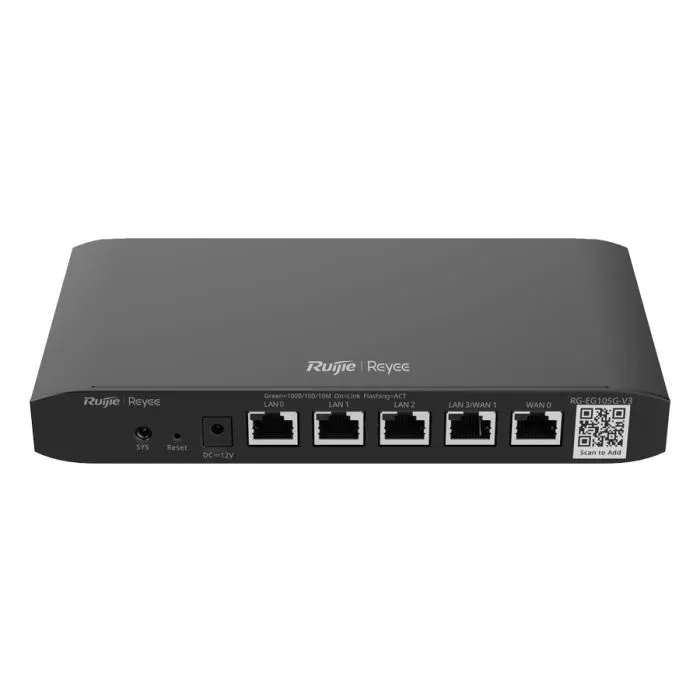

Reyee's RG-EG105G is a cloud-managed router featuring 5x Gigabit Ethernet Ports with up to x2 WAN ports. It supports up to 100 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12v Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 220V
System Memory: 128MB
USB Ports: None

Dimensions: 206.5 x 108.5 x 28mm
Weight: 840g

Reyee's RG-E305GP is a 5 port cloud-managed, dual-core router featuring 4 Gigabit Ethernet PoE ports and up to x4 WAN ports. It supports up to 300 users with a maximum WAN bandwidth of 1.5Gbps.

The router integrates with Ruijie's free cloud service allowing users to quickly and easily auto-provision, deploy, and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 1x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 0-3
Power Input: 54V 1.4A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 54V
System Memory: 512MB
USB Ports: None

Dimensions: 202 x 108 x 28 mm
Weight: 0.55kg

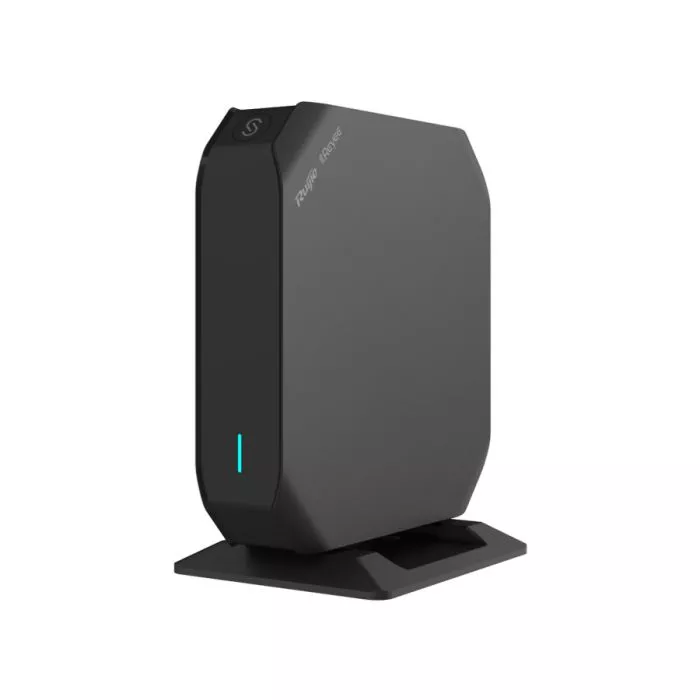

Reyee's RG-EG105GW is a cloud-managed, WiFi 5 MU-MIMO Wave 2 router with 5 Gigabit Ethernet ports and up to 4 WAN ports. With concurrent 2.4G and 5G wireless, the unit supports up to 1267Mbps aggregate over wireless, as well as up to 150 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Antenna Gain: 2.4GHz : 3dBi; 5.8GHz : 4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 3x 10/100/1000 (LAN/WAN)
Hardware Button: Reset, MESH
Max. Power Consumption: 15W
Mounting: Desktop / Wall Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: DC 12V 1.5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 220V
USB Ports: 1x USB 2.0

Dimensions: 120 x 120 x 28mm
Weight: 0.251Kg

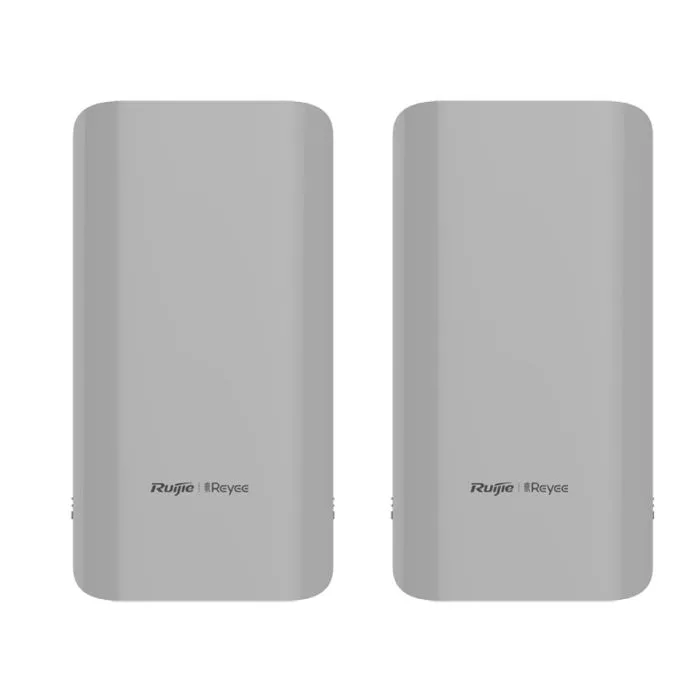

Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.

RG-EST310 V2 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.

Specifications

Antenna Gain: 5GHz: 10dBi
Beam-width: 60°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 55°C
PoE Input: 24v Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included) or 12V 1A Power Supply (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24v PoE PoE or 12V 1A DC
USB Ports: None

Dimensions: 400 x 231 x 88 mm
Weight: 0.35g

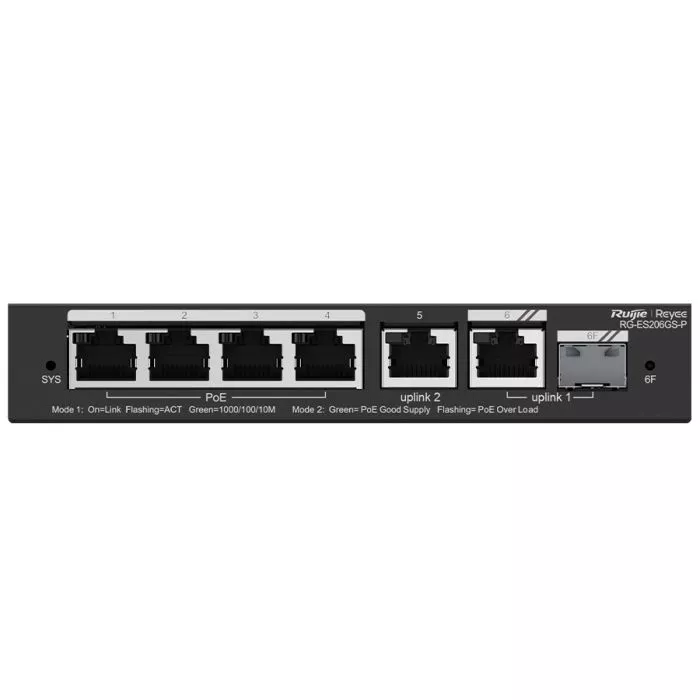

Reyee's RG-ES206GSP is a 6 port Layer 2 Gigabit smart switch with 4x 802.3af/at PoE ports, 2x Gigabit Ethernet uplink ports and 1x SFP combination port. The switch offers a 54W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 6x 10/100/1000
Hardware Button: None
Max. Power Consumption: 6W
Mounting: Desktop or Wall Mount
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 4
Power Input: 54V 1.11A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x SFP Combo Port
Supported Voltage Range: 54V

Dimensions: 148 x 78 x 26mm
Weight: 308g

Reyee's RG-NBS8P2S is a Layer 2+ smart switch featuring 8 Gigabit PoE Ports and 2x 1.25Gbps SFP Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
Specifications
Ethernet Ports: 8x 10/100/1000
Hardware Button: None
Max. Power Consumption: 25W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 50°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 300 x 205 x 44mm

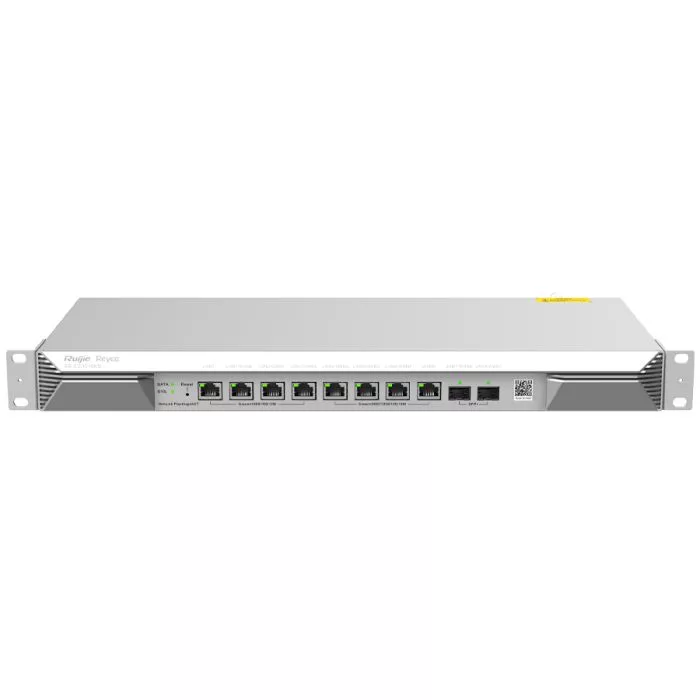

Reyee's RG-EG1510XS is a 10 port cloud-managed, 4-core router featuring 4x Gigabit Ethernet ports, 4x 2.5Gbps Ethernet ports, 2xSFP+ ports, and caters for up to 7 WAN ports. It supports up to 1500 users with a maximum WAN bandwidth of 4Gbps.

The unit is equipped with a 2.5'' SATA HDD bay for local syslog storage and integrates with Ruijie's free cloud service allowing users to quickly and easily auto-provision, deploy, and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 3x 10/100/1000/2500 (LAN/WAN); 1x 10/100/1000 (LAN) ; 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Rack-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4GB
USB Ports: None

Dimensions: 440 x 210 x 43.6 mm
Weight: 3kg

Reyee's RG-RAP1206X is a WiFi 6 (802.3ax) Dual Band, In-Wall Access Point featuring 5x Gigabit Ethernet Ports with PoE-Input and smart AI roaming. The unit supports up to 2976Mbps with 574Mbps on 2.4GHz and 2402Mbps on 5.8GHz and includes a mounting plate for quick and easy installation. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 3dBi ; 5.8GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps ; 5.8GHz: 2402Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall-Mount (Mounting Bracket Included)
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V
USB Ports: None
Dimensions: 124 × 86 × 24 mm
Weight: 500g

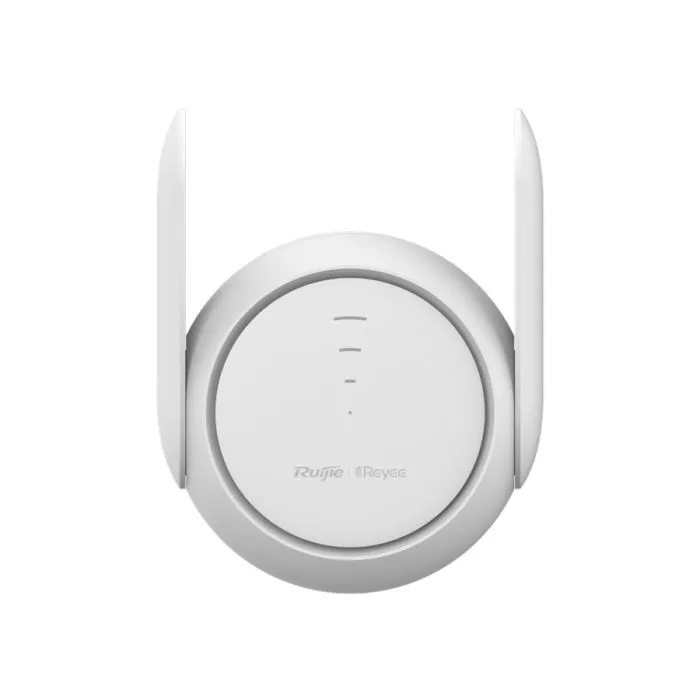

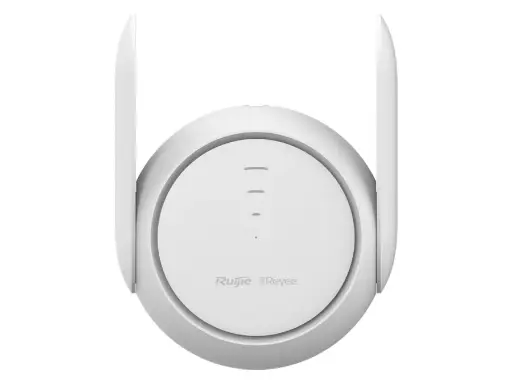

Reyee's RG-EW1200R is a dual band, 802.11ac (WiFi 5) range extender featuring 1x Fast Ethernet Port, 2x 4dBi external antennas and dual band 2x2 MU-MIMO with speeds up to 1167Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2x4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset ; Mesh ; Reset
Max. Power Consumption: 15W
Mounting: Plug Point
Operating System: Reyee
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 2 Pin 5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 100-240V
USB Ports: None
Dimensions: 128 x 102 x 60 mm
Weight: 250g

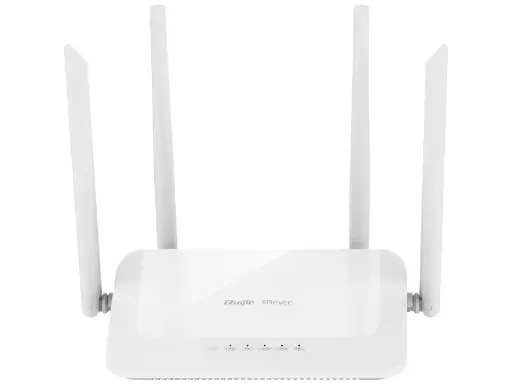

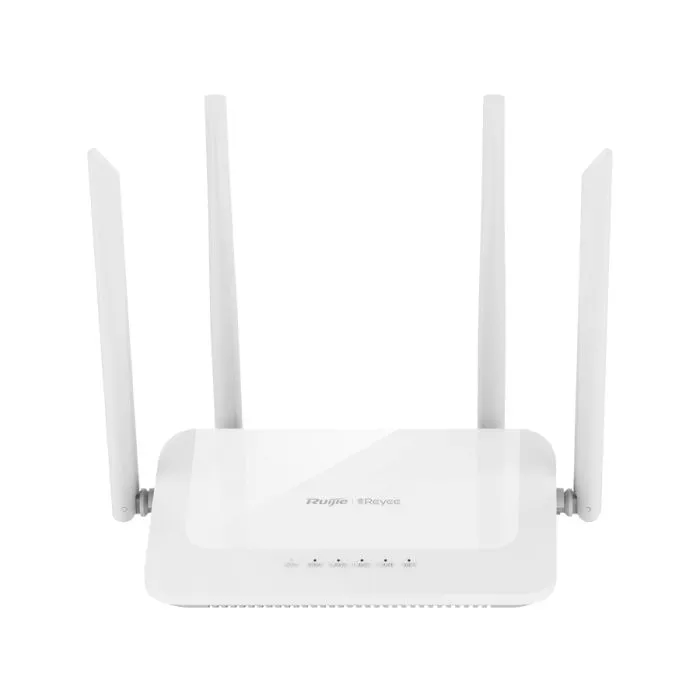

Reyee's RG-EW1200F is a dual-band Fast Ethernet router featuring 802.11ac (WiFi 5) MU-MIMO Wave 2 technology with speeds up to 1167Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: This device does not support WPS for third party devices. WiFi password settings do not support special characters.

Specifications

Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset ; Mesh
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 182 x 120 x 32mm
Weight: 400g

Reyee's RG-EW1200R is a dual band, 802.11ac (WiFi 5) range extender featuring 1x Fast Ethernet Port, 2x 4dBi external antennas and dual band 2x2 MU-MIMO with speeds up to 1167Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2x4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset ; Mesh ; Reset
Max. Power Consumption: 15W
Mounting: Plug Point
Operating System: Reyee
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 2 Pin 5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 100-240V
USB Ports: None

Dimensions: 128 x 102 x 60 mm
Weight: 250g

Reyee's RG-EW1200F is a dual-band Fast Ethernet router featuring 802.11ac (WiFi 5) MU-MIMO Wave 2 technology with speeds up to 1167Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: This device does not support WPS for third party devices. WiFi password settings do not support special characters.

Specifications
Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset ; Mesh
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 182 x 120 x 32mm
Weight: 400g

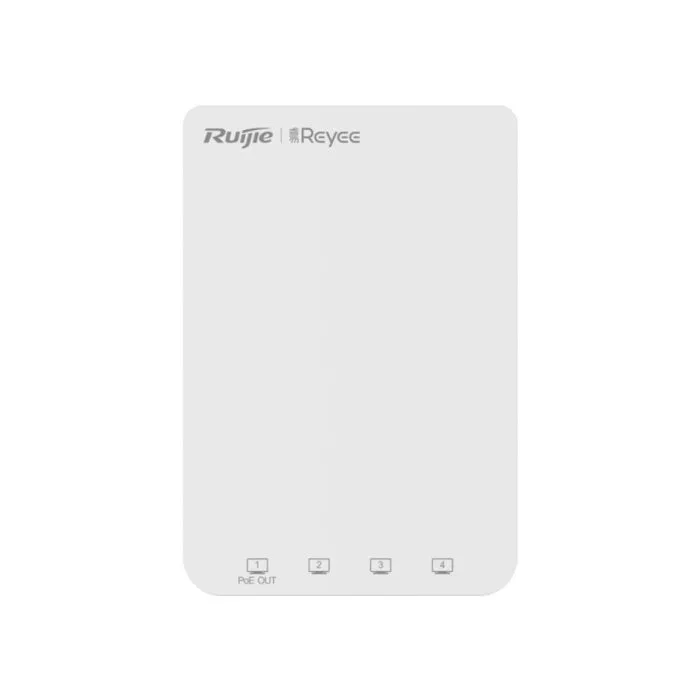

Reyee's RG-RAP1200GP is an 802.11ac (WiFi 5) Wave 2 In-Wall Access point with 5x Gigabit Ethernet Ports, PoE-Input and PoE Pass-through. The unit supports up to 1267Mbps with 400Mbps on 2.4GHz and 867Mbps on 5.8GHz and includes a mounting plate for quick and easy installation. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi ; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps ; 5.8GHz: 867Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Wall-Mount (Mounting Bracket Included)
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: PoE Pass-through
Power Input: 802.3af/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V
USB Ports: None
Dimensions: 126 × 86 × 50 mm
Weight: 240g

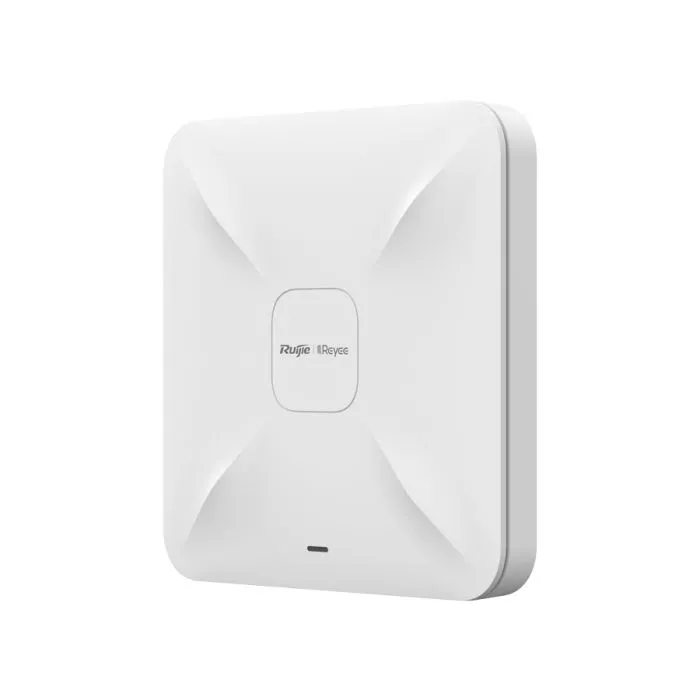

Reyee's RG-RAP2200F Reyee's is an 802.11ac (WiFi 5) dual-band ceiling mount access point featuring MU-MIMO Wave 2 technology, dual Fast Ethernet ports, seamless roaming and speeds up of up to 1267Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: Power Supply/PoE Injector not included.

Specifications

Antenna Gain: 2.4GHz: 2dBi; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 12.95W
Mounting: Ceiling or Wall-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at or 12V 1.5A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 194 x 194 x 35mm
Weight: 450g
