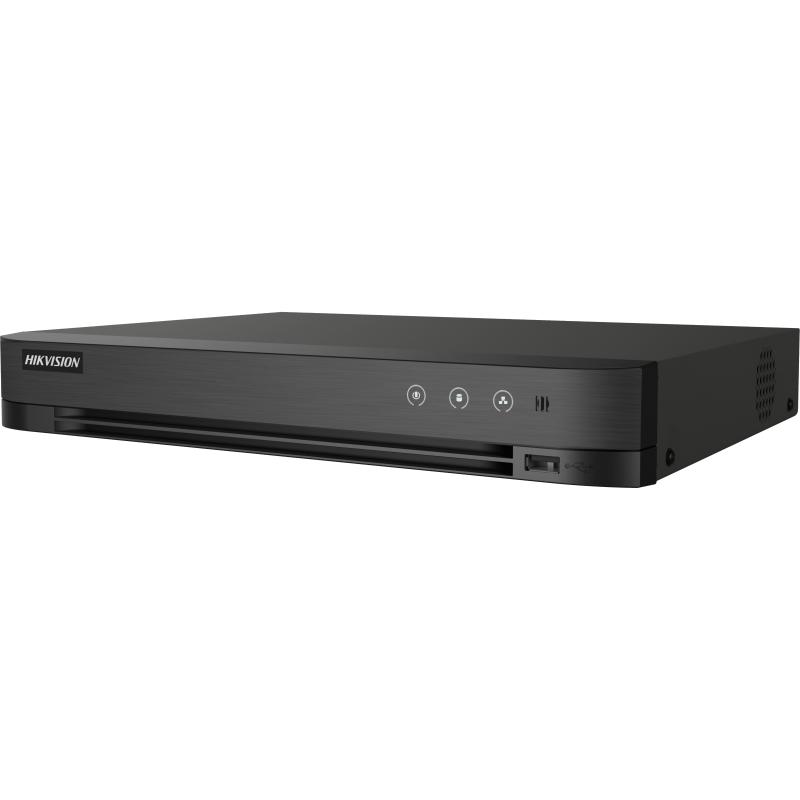

Hikvision 8-ch 1080P Mini 1U H.265 AcuSense DVR | iDS-7208HQHI-M1/XT
Hikvision 8-ch 1080p 1U H.265 AcuSense DVR 1 SATA 12TB supports 2ch facial recognition or 4ch advanced perimeter VCA or 8ch Motion 2.0
Feature
8 channels and 1 HDD 1U AcuSense DVR
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 4-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5M Lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 -ch network cameras can be connected
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Network
Remote Connection64
Total Bandwidth96 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial InterfaceRS-485 (half-duplex)
SATA1 SATA interface, up to 10 TB capacity for each disk
Alarm In/OutN/A (optional to support)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply12 VDC, 1.5 A
Consumption≤ 18 W (without HDD)
Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight≤ 1.78 kg (3.9 lb) (without HDD)
