AVT808 offers 16 channels of video analysis using AME ( the Artificial Mind Engine )
Capable of Analyzing any rtsp video stream of VGA Resolution at 6 Frames per second per channel. Model includes Power supply, battery, relay outputs, tamper detection and indoor enclosure. Detection regions of up to 50 Meters

AVT332 offers 32 channels of video analysis using AME ( the Artificial Mind Engine )
Capable of Analysing any rtsp video stream of 1Megapixel Resolution at 6 Frames per second per channel. Model includes Power supply, battery, relay outputs, tamper detection and indoor enclosure. Ideal for detection regions of up to 50 Meters

AVT808 offers 8 channels of video analysis using AME ( the Artificial Mind Engine )
Capable of Analyzing any rtsp video stream of VGA Resolution at 6 Frames per second per channel. Model includes Power supply, battery, relay outputs, tamper detection and indoor enclosure. Detection regions of up to 30 Meters

HiLook 16-ch 1080p Lite 1U H.265 DVR
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 18-ch IP camera input (up to 5 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
Motion Detection 2.0 Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
Video and Audio
IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30

General
Power Supply12 VDC, 2 A
Consumption≤ 10 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 1.1 kg (without HDD, 2.4 lb.)

FEATURES

HiLook 16-ch 1080pLite 1U H.265 eSSD DVR

Powered by eSSD technology
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Scene-adaptive bitrate control video compression
Up to 1080p Lite@15 fps encoding capability
Low power consumption
Audio via coaxial cable

PRODUCT SPECIFICATIONS
Brand HiLook
Item model number IL-HIL052E-DVR-E16G-B
Product Type DVR
Power Supply 12 VDC, 1 A
Consumption ≤ 9.5 W (with eSSD)
Working Temperature -10 °C to 45 °C (14 °F to 113 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 235 × 146.6 × 46.6 mm (9.25 × 5.77 × 1.83 inch)

High quality imaging with 2 MP resolution
Excellent low-light performance
Efficient H.265+ compression technology
Water and dust resistant (IP67)
24/7 colorful imaging
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Day & Night24/7 Color imaging
Min. Illumination Color: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Speed1/3 s to 1/100, 000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1°
4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
Lens MountM12
Iris Type Fixed
ApertureF1.0
Camera Material Aluminum alloy body
Camera DimensionØ76.6 mm × 164.4 mm (Ø3" × 6.5")
Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Camera Weight Approx. 400 g (0.9 lb.)
With Package Weight Approx. 670 g (1.5 lb.)

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 2.4 W
Material Plastic
White Light Range Up to 20 m
Dimension162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
Weight Approx. 152.5 g (0.34 lb.)

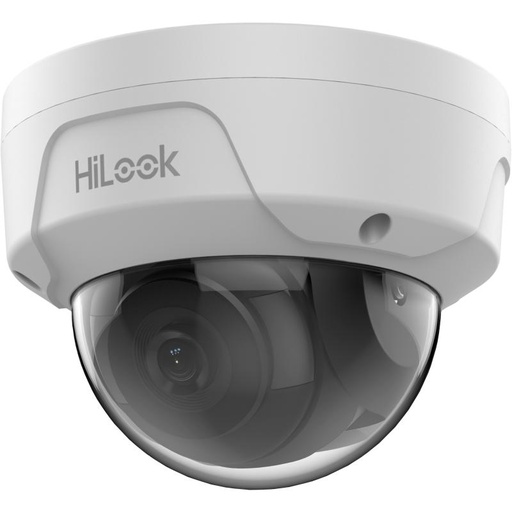

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100, 000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens MountM12
FocusFixed
ApertureF2.0
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Iris TypeFixed
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 270 g (0.6 lb.)
With Package Weight Approx. 490 g (1.1 lb.)

HiLook 2 MP Indoor Audio Fixed Turret Camera

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 103 3.6 mm, horizontal FOV: 80.7
6 mm, horizontal FOV: 50.1
Lens Mount M12

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 20 m

Image Settings Brightness;Sharpness;Mirror;Smart IR;AGC
Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Image Enhancement BLC;DWDR
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ±15%, max. 4 W
MaterialPlastic
DimensionØ 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
WeightApprox. 130 g (0.29 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language English

HiLook 2 MP Indoor Audio Fixed Turret Camera

1080P turret camera
Up to 20 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together.
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12

General
Power12 VDC ± 25%, max. 2.7 W
Material Plastic
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Weight Approx. 140.5 g (0.31 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language English

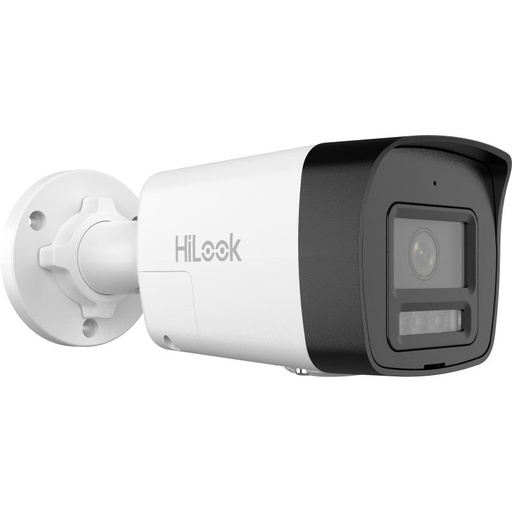

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens MountM12
Iris TypeFixed
ApertureF1.6
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
WeightApprox. 265 g (0.6 lb.)
With Package WeightApprox. 495 g (1.1 lb.)

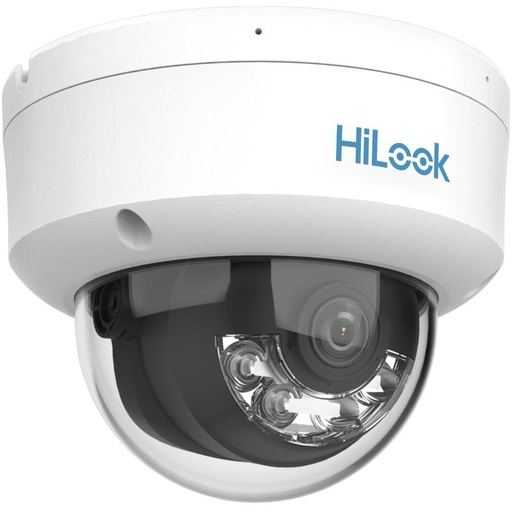

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK08)
Efficient H.265+ compression technology
Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens MountM12
Iris TypeFixed
ApertureF1.6
DimensionØ121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 550 g (1.2 lb.)
With Package Weight Approx. 800 g (1.8 lb.)

Three 2 MP cameras face different directions to cover larger areas
One 2 MP camera for close-up view with 4x zoom ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Good night-time performance with up to 10 m IR
Lens
FOVHorizontal field of view: 120° to 56.6° (wide - tele),Vertical field of view: 61.8° to
31.7° (wide - tele),Diagonal field of view: 149° to 65° (wide - tele)
Focal Length2.8 mm to 12 mm, 4× optical zoom
Zoom SpeedApprox.5.4 s (optical, wide - tele)
Working Distance10 mm to 1500 mm (wide - tele)
Aperture RangeF2.0 to F2.4
Smart Features
Basic Event Detection Motion Detection, Video Tampering Detection, Exception
Smart Detection Audio Exception Detection, Intrusion Detection, Line Crossing
Detection
Smart Record ANR (Automatic Network Replenishment)
ROIMain stream supports eight fixed areas.
Smart Image Enhancement HLC/BLC/3D DNR/Regional Exposure/Regional Focus
MaterialPC + ABS & Aluminum alloy
DimensionsΦ 183 mm × 133 mm (Φ 7.20" × 5.24")
WeightApprox. 0.9 kg (1.98 lb)
Protection LevelTVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power 12 VDC, 2.0 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class 4
Max.24 W (Max. 6 W for IR)
Working Temperature-10°C to 50°C (14°F to 122°F)
Working Humidity≤ 90%

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK08)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
DimensionØ121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 550 g (1.2 lb.)
With Package WeightApprox. 800 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Motorized varifocal lens for easy installation and monitoring
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to
18°, diagonal FOV 122° to 36°
Lens MountØ14
Iris TypeFixed
ApertureF1.6
General
Power 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Dimension Ø105 mm × 244.4 mm (Ø4.1" × 9.6")
Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight Approx. 1035 g (2.3 lb.)
With Package Weight Approx. 1550 g (3.4 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)

HiLook 4-ch 1080p Lite 1U H.265 DVR
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 5-ch IP camera input (up to 2 MP)
Encoding ability up to 1080p lite @ 30 fps
Max. 1200 m for 720p HDTVI signal
Motion Detection 2.0 Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights Quick search by object or event type is supported.
Video and Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Input Support
HDTVI Input1080p25, 1080p30, 720p25, 720p30
Synchronous playback4-ch
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
Video Output Mode HDMI/VGA simultaneous output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Two-Way Audio Reuse the first audio input

General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 0.8 kg (without HDD, 1.8 lb.)

HiLook 8-ch 1080p 1U H.265 DVR
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
Supports 4 MP lite, and when enabled the image effect is similar with 4 MP
One HDD for continuous video recording
Smart search for efficient playback.
Video and Audio
IP Video Input
4-ch (up to 12-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
*: The 3 MP signal input is only available for channel 1/2.
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input PAL/NTSC
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Synchronous playback8-ch

General
Power Supply12 VDC, 1.33 A
Consumption≤ 12 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight≤ 1 kg (2.2 lb.)

HiLook 8-ch 1080p Lite 1U H.265 DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 10-ch IP camera input (up to 5 MP)
Encoding ability up to 1080p lite @ 15 fps
Max. 1200 m for 720p HDTVI signal

Motion Detection 2.0 Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio
IP Video Input
2-ch (up to 10-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way AudioReuse the first audio input
Synchronous playback8-ch

General
Power Supply12 VDC, 1.5 A
Consumption≤ 17 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 1 kg (without HDD, 2.2 lb.)

High quality imaging with 6 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot)
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens MountM12
Iris TypeFixed
ApertureF1.6

DORI 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression Mainstream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile ,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI)1 fixed region for mainstream
Scalable Video Coding (SVC)H.264 and H.265 encoding

Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
ClientiVMS-4200,HiLookVision
Web Browser Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Product Overview

The Hilook 4Ch 4x 2MP Bullet Cameras with 330GB SSD CCTV DIY Kit provides an effective security solution for homes and small businesses, featuring four high-definition 2MP bullet cameras that capture clear footage in various weather conditions. With a user-friendly design, this kit allows for easy installation without professional assistance and includes a robust 330GB SSD for reliable video storage. Equipped with night vision capabilities, it ensures continuous monitoring, making it an ideal choice for enhancing your security system.

Specifications

Product Code: HIL-2402-330GB
Description: Hilook 4Ch 4x 2MP Bullet Cameras with 330GB SSD CCTV DIY Kit
High-Resolution Cameras: Four 2MP bullet cameras for sharp and detailed imagery.
Reliable Storage: 330GB SSD providing robust storage for extensive footage.
Weatherproof Design: Cameras built to endure both sunny and rainy conditions.
Easy Installation: DIY installation suitable for homes and small businesses.
Remote Viewing: Monitor your premises from anywhere via a user-friendly interface.
Night Vision: Clear night vision ensures reliable security around the clock.
