MikroTik's RB-HEXS is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the RB-HEX, the RB-HEXS also features an SFP port and PoE output on the last port.

It is small and easy to use but comes with a very powerful dual-core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output on Ethernet port 5 and a 1.25G SFP cage.
thernet Ports: 5x 10/100/1000
Hardware Button: Rest
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at)
PoE Output: 12V-57V Passive PoE, 802.3af/at on Port 5
Power Input: 24V 1.2A Power Supply (Included)
Processor: 2 Core 880MHz, MT7621A
Serial Interface: None
SFP Ports: 1x 1.25Mbps
Supported Voltage Range: 12V-57V
System Memory: 256MB
USB Ports: 1x USB 2.0
Other: 1x microSD Memory Card Slot

Dimensions: 113 x 89 x 28mm

MikroTik's RB-MANTBOX15AX is a dual band, WiFi 6 base station with an integrated sector antenna. The unit features a Gigabit Ethernet Port as well as a 2.5Gbps SFP slot and an aggregate data rate of up to 2974Mbps. On 2.4GHz the antenna offers 12dBi at 90°, and on 5.8GHz 15dBi at 60° coverage.

*Note: Maximum distance must be configured for client connections over 2km.
Antenna Gain: 2.4GHz: 12dBi ; 5.8GHz: 15dBi
Beam-width: 2.4GHz: 90°; 5.8GHz: 60°
Data Rate: 2.4GHz 574Mbps ; 5.8GHz 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-28 (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12-28V
USB Ports: 1x USB 2.0
Other: 1x 2.5Gbps SFP

Dimensions: 349 x 140 x 82 mm

MikroTik's RB-MAP is a tiny sized, 2.4GHz wireless Access Point with full RouterOS capabilities. It is portable and accepts power from a wide variety of sources - USB, Passive or power jack. It also functions as a PoE injector - the second Ethernet port can provide up to 500mA of power to another device, for example, you can connect an SXT CPE device to it.
Antenna Gain: 1.2dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at) Or 5V 1A USB Power
PoE Output: 12V-57V PoE Pass-Through on Port 2
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V or 12V-57V
USB Ports: 1x MicroUSB
Other: None

Dimensions: 68 x 68 x 19mm

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.


The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.

MikroTik's RB-NETPOWER16P is an outdoor 18 port switch. It has 16x Gigabit Ethernet Ports, with PoE-out, and 2x SFP+ ports for 10G fibre uplinks. The sturdy and compact design allows this switch to be mounted in various environments, from damp attics and shafts to towers, masts and poles with the included hose clamps.

This product does not support voltage conversion but rather makes use of separate 24V and 48V input power supplies. The netPower will automatically select the correct PoE standard and voltage based on the devices connected to each port if both voltages are being used simultaneously. This can also be configured manually on the product interface.

*Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

thernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Pole-Mount
Operating System: RouterOS Level 5 License
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: 24v Passive PoE or 802.3af/at
Power Input: 2x DC Jacks (18V-30V or 48V-57V)
Processor: 98DX226S
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 18V-30V or 48V-57V
System Memory: 16MB
USB Ports: None

Dimensions: 303 x 212 x 78mm

MikroTik's RB-WAPLORA8 is an out-of-the-box LoRaWAN gateway solution. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers. It is an outdoor weatherproof wireless access point with 2.4GHz WLAN interface and Ethernet port that could be used as a back-end.
Antenna Gain: Lora: 2dBi Wireless: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop; Ceiling; Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: 9V-30V Passive PoE
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 Mini SIM
Supported Voltage Range: 9V-30V
USB Ports: None

Dimensions: 185 x 85 x 30mm

MikroTik's RB-WAPLTE is a small weatherproof wireless access point with a built-in LTE4 modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The RB-WAPLTE also has one 10/100 Ethernet LAN port for your wired devices.

LTE cards are connected to two internal antennas with u.FL connectors, making it possible to unplug the connectors and add your own external LTE antenna for larger coverage. The RB-WAPLTE has several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector for the car, bus or train. It includes LTE modem that supports International LTE bands 1,2,3,7,8,20,28,38 and 40.
Antenna Gain: LTE: 2 - 4.5dBi (with uFL connector) Wireless: 2dBi
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop; Ceiling; Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to +60°C
PoE Input: 9 – 30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Mini SIM)
Supported Voltage Range: 9V-30V
USB Ports: None

Dimensions: 185 x 85 x 30 mm

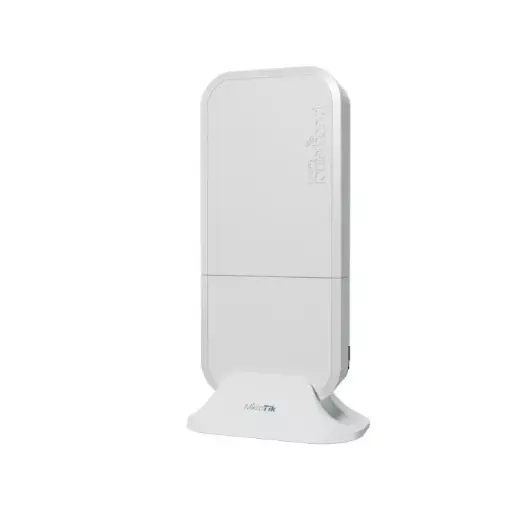

MikroTik's RB-WAPAC features a white outdoor weatherproof enclosure, 2x Gigabit Ethernet Ports, 802.11ac (WiFi 5) and a quad-core CPU. With multiple mounting options the RB-WAPAC can be wall, ceiling or pole mounted. It allows for an Ethernet cable to be run directly from the back of the case and is secured with an anti-vandal screw for added security.
Antenna Gain: 2.4GHz: 2.5dBi ; 5.8GHz: 2.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps ; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop, Ceiling, Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-57V Passive PoE ; 802.3af/at
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10-57V
USB Ports: None

Dimensions: 185 x 85 x 30 mm

MikroTik's RB-WAPLTE6AC is a small weatherproof, dual-band 802.11ac Access Point. LTE6 also enables carrier aggregation and allows the device to use multiple bands simultaneously, which is a great advantage when there are many LTE users in the area.
Antenna Gain: LTE: 4dBi ; Wireless: 2.5dBi
Beam-width: 360°
Data Rate: LTE: 300Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 License)
Operating Temperature: -30°C to 60°C
PoE Input: 18V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Micro SIM)
Supported Voltage Range: 10V-57V
USB Ports: None

Dimensions: 185 x 85 x 30mm

Mikrotik Level 4 (WISP) License


Purchase a MikroTik License upgrade should you wish to update a RouterBOARD which is running a Level 3 license, or if you are planning on running RouterOS on a computer.


For ease of use, a table is below highlighting the core differences between the license levels.


Level number 0 (Trial mode) 1 (Free Demo) 3 (WISP CPE) 4 (WISP) 5 (WISP) 6 (Controller)


Initial Config Support from MikroTik - - - 15 days 30 days 30 days
Wireless AP 24h trial - - yes yes yes
Wireless Client and Bridge 24h trial - yes yes yes yes
RIP, OSPF, BGP protocols 24h trial - yes(*) yes yes yes
EoIP tunnels 24h trial 1 unlimited unlimited unlimited unlimited
PPPoE tunnels 24h trial 1 200 200 500 unlimited
PPTP tunnels 24h trial 1 200 200 500 unlimited
L2TP tunnels 24h trial 1 200 200 500 unlimited
OVPN tunnels 24h trial 1 200 200 unlimited unlimited
VLAN interfaces 24h trial 1 unlimited unlimited unlimited unlimited
HotSpot active users 24h trial 1 1 200 500 unlimited
RADIUS client 24h trial - yes yes yes yes
Queues 24h trial 1 unlimited unlimited unlimited unlimited
Web proxy 24h trial - yes yes yes yes
User manager active sessions 24h trial 1 10 20 50 Unlimited
Number of KVM guests none 1 Unlimited Unlimited Unlimited Unlimited


Please note that you would need to provide the RouterBoard's SoftID in order to obtain a new license.

*All information regarding RouterOS listed on this page is subject to change without notice.

More info regarding MikroTik License levels is available on their Wiki page:

http://wiki.mikrotik.com/wiki/Manual:License

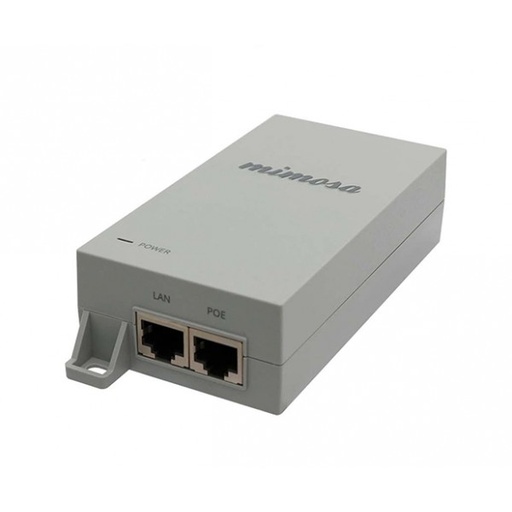

Mimosa 24V 0.5A Gigabit POE adapter

This 24 V Power-over-Ethernet (PoE) injector is designed for a clean installation in any environment. Mimosa's PoE is the best power solution for your wireless installations.

Includes an EU power cable.
Supports the A5x, C5x, and C5c.
PoE Injector Specs
Power Output 24 V === 0.5 A
Power Input 0.5A @ 90 VAC 100-240 VAC ~ 50/60 Hz MAX 0.75 A

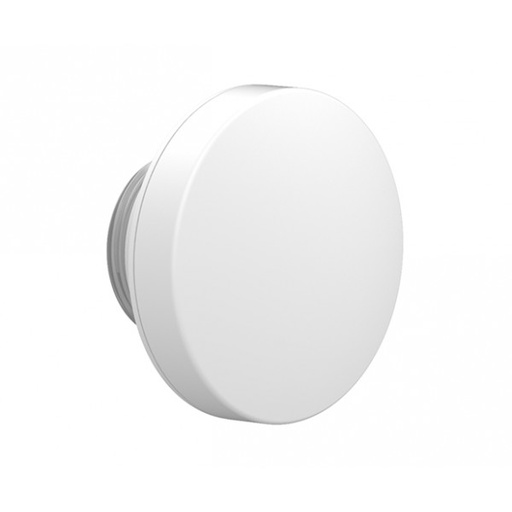

Mimosa N5-X12 twist-on 5GHz 12dBi antenna 70mm

The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

The N5X12 is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

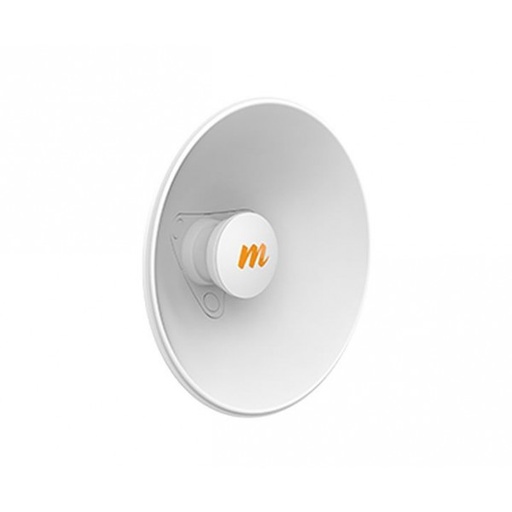

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm


The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.


The N5X20 is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

Smart mini-UPS for Wi-Fi Routers, Modems, POE CCTV cameras, etc., 9-12V DV, 10400mAh battery for smart devices
The Astrum PB070 small power packed UPS comes with 10400mAh rechargeable battery and 2A fast charge USB port, power-packed solution for all your smartphones and devices.

This finest mini-sized UPS (Uninterruptible power supply) is a handy device for power outage situations. Supplies power to Wifi routers, modems, security cameras, smartphones, fax machines, fingerprint systems, DSL’s and others. Up to 4 hours of continuous work time without interruptions.

It comes with a built-in 2A USB port designed to keep your smartphones and other devices powered up during power outages whether at home or office, so you can enjoy maximum productvity all day long.

PB070 features a microprocessor controller guaranteeing high reliability with a high capacity lithium battery, LED indicator lights and a manual power off switch to control the power bank, Thereby saving your battery life and ensuring no overcharging of devices.

The power bank delivers the appropriate charging voltage to your device, which means a safer and more efficient charge every single time. Built for safe charging, its smart circuit protects the power bank and your devices against over-voltage, over-temperature, over-current, and short-circuit damages.

Features:

Manual power off switch
Auto start while AC is recovering
Overload and short-circuit protection
Over-charge and over-discharge protection
Allows to set output voltage 9 / 12V DC via switch
Application: router, modem, wireless phone, CCTV cameras
Microprocessor controller guarantees high reliability

Technical Specifications:

Working voltage: 100-240V AC / 50-60Hz
Work time: Up to 6 hours (Max.)
Capacity: 10400mAh
Output voltage:
– USB interface — 5V DC
– DC interface — 9V DC / 12V DC
Output current:
– USB interface — 5V / 2A
– DC interface — 12V / 2A
Dimensions: 160 x 105 x 32mm (L x W x H)
Weight: 370g (Approx.)

The HiLook 5-port, unmanaged, Gigabit desktop switch is designed for small-scale IP surveillance networks or networking applications.
The plug-and-play design simplifies installation without any configuration requirements, and its compact size minimizes the space required.

5 Port Gigabit Unmanaged Desktop Ethernet Switch

Hilook Gigabit Desktop Switches

Network Only

8 Port Gigabit Unmanaged Desktop Ethernet Switch

Unmanaged; 4 100M PoE port; 1 100M uplink port; 802.3af/at; PoE power budget 35W; max. 250m long distance transmission

Unmanaged; 8 100M PoE port; 2 Gigabit uplink ports; 802.3af/at; PoE power budget 58W; max. 250m long distance transmission

16 x 10/100 Mbps PoE ports, 2 x 10/100/1000 Mbps combo uplink ports
IEEE 802.3 af & at high PoE power supply
Maximum 250 m long distance PoE transmission
VIP port transmission priority
Safe and reliable using 6 KV high surge protection
Supports store-and-forward
Supports MAC address auto learning and auto aging
Supports smart cache optimization
Supports desktop / wall mounting.
Unmanaged; 16 100M PoE port; 1 1000M RJ45; 1 1000M SFP; 802.3af/at; PoE power budget 135W; "Extend" Mode: Port 9-16;max. 250m long distance transmission
