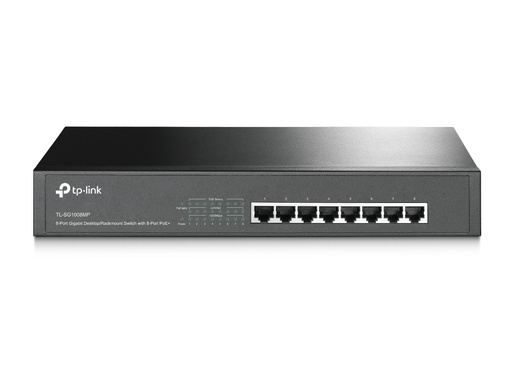

8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power consumption by up to 75%*
Supports PoE+ standard with total power budget of 126W and up to 30W per port
Plug and play design, no configuration required

*Actual data may vary in different usage environment.
Downlink Ports 8 Ports
Downlink Ports Speed 1Gb
Downlink Ports Type RJ45 Ethernet ports
Management Layer Unmanaged
POE 8 Ports
Switch Form Factor Rackmount
Uplink Ports 8
Uplink Ports Speed 1Gb
Uplink Ports Type RJ45 Ethernet ports
Warranty Limited Lifetime Warranty

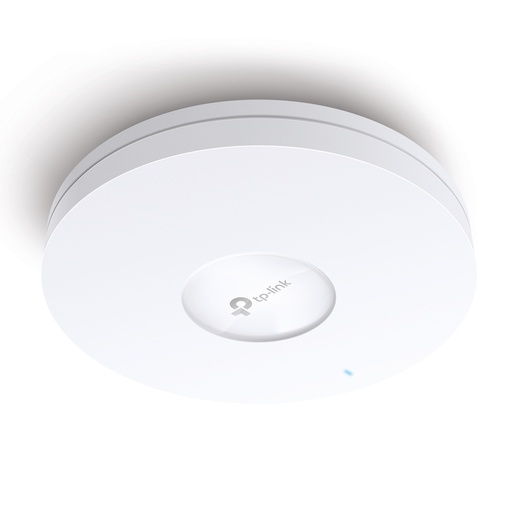

EAP620 HD
AX1800 Wireless Dual Band Ceiling Mount Access Point
Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
LAN Ports 1 Port
LAN Ports Speed 1 Gbps
Mesh Capable No
POE 1 Port
Wireless Bands Dual Band
Wireless Standard Wi-Fi 6
Warranty Limited Lifetime Warranty

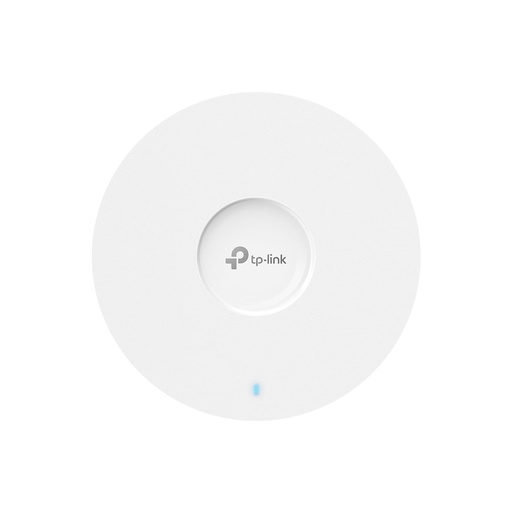

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§ Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
Mesh Capable No
POE 1 Port
Wireless Bands Dual Band
Wireless Standard Wi-Fi 6
Warranty 2 Year Warranty

Ubiquiti's UPOE48-30W-2G is a 48V, 0.65A, 2.5Gbps, PoE injector. The unit is compatible with products that require 802.3at PoE and features Electrostatic Discharge (ESD) protection, surge protection, clamping protection, peak pulse current and maximum surge discharge, all of which aid in protecting your PoE devices.

*Note: Power cable not included, we recommend POWU.
Specifications Ethernet Ports: 2x 10/100/1000/2500
PoE Output: 48V 0.65A Passive PoE
Power Input: Clover Power Cord (Not Included)
Supported Voltage Range: 100V-240V

Ubiquiti's UPOE-48G30W is a 48V, 0.65A, Gigabit, PoE injector. The unit is compatible with products that require 802.3at PoE and features Electrostatic Discharge (ESD) protection, surge protection, clamping protection, peak pulse current and maximum surge discharge, all of which aid in protecting your PoE devices.

*Note: Power Cable Not Included, we recommend POWU.

Ubiquiti's UDM-SE is an all-in-one enterprise-grade UniFi OS Console. It is designed to host the full UniFi application suite. It comes with an advanced security gateway feature set and a built-in 8-Port Switch with 6 PoE and 2 PoE+ ports. It also features Dual WAN Ports (one 10G SFP+ and one 2.5Gbps RJ45), a 10G SFP+ LAN Port and a 3.5" HDD Bay for NVR Storage (2.5" HDD also supported). It features a 1.3" LCM (Liquid Crystal Monitor) colour touchscreen to display key system and connection information. PoE budget on the unit is 190W.

*Note: Hard drive not included.

Ethernet Ports: 1x 10/100/1000/2500 (WAN); 8x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: 6x 802.3af ; 2x 802.3at
Power Input: 1x IEC Power Cord (Included); 1x RPS DC Input
Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 2x 10Gbps (1xLAN; 1xWAN)
Supported Voltage Range: 100V-240V ; 44-57V (802.3af) ; 50-57V (802.3at)
System Memory: 4 GB DDR4
USB Ports: None

Dimensions: 442.4 x 43.7 x 285.6 mm
Weight: 4.95kg

Ubiquiti's USW-E8P is an 8 port, fully managed Layer 3 switch with 8x 2.5GbE, 802.3at PoE+ ports, 2x 10Gbps SFP+ ports and a PoE budget of 120W. The switch includes a wall mount kit and features a 1.3" LCM colour touchscreen to display key system and connection information.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 8x 100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop or Wall Mount (Kit Included)
Operating System: UniFi
Operating Temperature: -5°C to 45°C
PoE Input: None
PoE Output: 8x 802.3af/at
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V

Dimensions: 200 x 248 x 44 mm
Weight: 2.4Kg

Ubiquiti's USW-5FLEXMINI is an indoor, fully managed, 5 port, Gigabit UniFi switch with 1x 802.3af PoE+ input on port 1.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 2.5W
Mounting: Desktop
Operating System: UniFi
Operating temperature: -5°C to 45°C
PoE Input: 802.3af/at on Port 1
PoE Output: None
Power Input: 5V 1A USB-C Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 4.7V-5.3V DC or 802.3af/at PoE

Dimensions: 107.16 x 70.15 x 21.17mm
Weight: 150g

Ubiquiti's USW-5FLEX is a managed, Layer 2, UniFi switch with 5x Gigabit Ethernet Ports. It includes 4x 802.3af PoE+ Ports and 1x 802.3af/at/bt PoE input. It is designed for indoor or outdoor use with its weatherproof housing and versatile mounting options. The USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.
We recommend using the UPOE-48G60W or a Ubiquiti UniFi Switch to power these devices. When making use of the UPOE-48G60W, be sure to set the power source on the UniFi Network Application to injector.

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop, Wall and Pole-Mount
Operating System: UniFi
Operating Temperature: -40°C to 55°C
PoE Input: 802.3af/at/bt
PoE Output: 802.3af on Ports 2~5
Power Input: 802.3af/at/bt on Port 1
Serial Interface: 1x RJ45 Ethernet In-Band
SFP Ports: None
Supported Voltage Range: 44–57V (802.3af) 50-57V (802.3bt)

Dimensions: 122.5 x 107.1 x 28.0mm
Weight: 230g

Ubiquiti's USW-MAX16P is a 16 port, fully managed, Layer 3 Etherlighting™ switch. The switch includes a rack-mount kit for 10-inch racks and wall mounting. The UACC-MAX16P-RM accessory makes provision for 19 inch rack-mount deployments. The unit features a 180W PoE budget with 12x Gigabit PoE+ (802.3af/at) Ports, 4x 2.5Gbps PoE++ (802.3af/at/bt) ports and 2x SFP+ Uplink Ports. It can be configured and managed with the UniFi Network Application.

Ethernet Ports: 12x 10/100/1000; 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop & 10-Inch Wall-Mount, or 19-Inch Rack Mount with UACC-MAX16P-RM (Not Included)
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 2.5Gbps: 4x 802.3af/at/bt ; Gigabit: 12x 802.3af/at
Power Input: 1x 54V, 3.9A, 210W DC adapter (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 54V

Dimensions: 325.1 x 160 x 43.7 mm
Weight: 2.1kg

Ubiquiti's USW-MAX24P is a 24 port, fully managed, Layer 3 Etherlighting™ switch. The unit features a 400W PoE budget with 16 Gigabit PoE Ports (8x PoE++ and 8x PoE+), 8x 2.5Gbps PoE++ ports and 2x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps PoE links to your WiFi 6 devices as well as 10Gbps fibre uplinks to your network.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 16x 10/100/1000; 8x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 2.5Gbps: 8x 802.3af/at/bt ; Gigabit: 8x 802.3af/at ; 8x 802.3af/at/bt
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V

Dimensions: 442 x 325 x 44mm
Weight: 5.2kg

Ubiquiti's USW-MAX48P is a 48 port, fully managed, Layer 3 Etherlighting™ switch. The unit features a 720W PoE budget with 32 Gigabit PoE Ports (24x PoE+ and 8x PoE++), 16x 2.5Gbps PoE ports (8x PoE+ and 8x PoE++) and 4x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps PoE links to your WiFi 6 devices as well as 10Gbps fibre uplinks to your network.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 32x 10/100/1000; 16x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 2.5Gbps Ports: 8x 802.3af/at/bt ; 8x 802.3af/at ; Gigabit Ports: 24x 802.3af/at ; 8x 802.3af/at/bt
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100V to 240V

Dimensions: 442 x 325 x 44mm
Weight: 5.2kg

Ubiquiti's USW-16P is a configurable Layer 2 switch. It has 16x Gigabit Ethernet ports that are made up of 8x auto-sensing 802.3at PoE+ ports, 2x 1.25Gbps SFP uplink ports and a PoE budget of 42W. It features a 1.3" touch LCM to provide status information and with a depth of 7.9", the compact fanless design can be easily installed in a SOHO network cabinet.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1~8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240VAC; 50/60Hz

Dimensions: 442.4 x 200 x 43.7 mm
Weight: 2.8kg

Ubiquiti's USW-24P is a managed Layer 2 switch with 24x Gigabit Ethernet ports. It consists of 16x auto-sensing 802.3at PoE+ ports, 2x 1.25Gbps SFP uplink ports and a PoE budget of 95W. The unit features a 1.3" touch LCM to provide status information.

It can be configured and managed with the UniFi Network Application.

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1~16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100 to 240VAC

Dimensions: 442.4 x 200 x 43.7mm
Weight: 3.09kg

Ubiquiti's USW-48P is a managed Layer 2 switch with 48x Gigabit Ports. It includes 32x 802.3at PoE+ ports, 4x 1.25Gbps SFP uplink ports and a PoE budget of 195W. The unit features a 1.3" touch LCM to provide status information.

It can be configured and managed with the UniFi Network Application.

Ethernet Ports: 48x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 45W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5 to 40° C
PoE Input: None
PoE Output: 802.3af/at on Ports 1~32
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 1.25Gbps
Supported Voltage Range: 100 to 240VAC

Dimensions: 442.4 x 285 x 43.7mm
Weight: 4.61kg

Ubiquiti's USW-LITE16P is a fully managed layer 2 switch with 16x Gigabit Ethernet ports, 8x 802.3af/at PoE+ ports and a PoE budget of 45W. The device offers an extensive suite of advanced layer 2 switching protocols and features. A wall-mountable kit is included with the switch. The device is fanless, meaning that it will be silent no matter where it is used.

It can be configured and managed with the UniFi Network Application.

Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 15W
Mounting: Desktop or Wall-Mount
Operating System: UniFi
Operating Temperature: -15 to 40° C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100 to 240VAC

Dimensions: 99.6 x 163.7 x 31.7mm
Weight: 450g

Ubiquiti's USW-LITE8P is a fully managed, Layer 2, UniFi switch with 8x Gigabit Ethernet ports, 4x auto-sensing 802.3at PoE+ ports and a PoE budget of 52W. The device offers an extensive suite of advanced layer 2 switching protocols and features. A wall-mountable kit is included with the switch. The device is fanless, meaning that it will be silent no matter where it is used.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktp or Wall-Mount
Operating System: UniFi
Operating Temperature: -15 to 40° C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 4
Power Input: 54V 1A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 50-57V

Dimensions: 99.6 x 163.7 x 31.7 mm
Weight: 450g

Ubiquiti's USW-PRO24P is a fully managed 24-Port Gigabit Layer 3 UniFi switch. It has 16x 802.3at PoE+ Ports, 8x 802.3bt PoE++ Ports, 2x 10Gbps SFP+ and a PoE budget of 400W. It features innovative near-silent cooling and a 1.3" touch LCM (Liquid Crystal Monitor) to provide status information.

It can be configured and managed with the UniFi Network Application.

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 16x 802.3af/at ; 8x 802.3bt
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V

Dimensions: 442.4 x 285.4 x 43.7mm
Weight: 4.39kg

Ubiquiti’s USW-PRO48P is a fully managed 48-Port Gigabit Layer 3 UniFi Switch. It has 40x 802.3at PoE+ Ports, 8x 802.3bt PoE++ Ports, 4x 10Gbps SFP+ and a PoE budget of 600W. It features innovative near-silent cooling and a 1.3" touch LCM (Liquid Crystal Monitor) to provide status information.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 48x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 60W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: Ports 1~40 802.3af/at ; Ports 41~48 802.3bt
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100 to 240VAC

Dimensions: 442.4 x 399.6 x 43.7mm
Weight: 6.34kg

Ubiquiti's USW-PRO8P is a fully managed 8-Port Gigabit Layer 3 UniFi switch. It has 6x 802.3at PoE+ Ports, 2x 802.3bt PoE++ Ports, 2x 10Gbps SFP+ and a PoE budget of 120W. It features innovative near-silent cooling and a 1.3" touch LCM (Liquid Crystal Monitor) to provide status information.

It can be configured and managed with the UniFi Network Application.
Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -5°C to 45°C
PoE Input: None
PoE Output: 6x 802.3af/at ; 2x 802.3bt
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V

Dimensions: 200 x 248 x 44mm
Weight: 2.1kg
