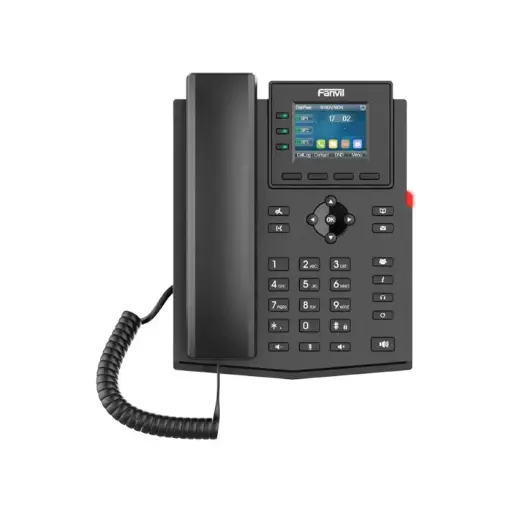

Fanvil's FAN-X303W features dual Fast Ethernet ports, 4 SIP lines, IPv4/IPv6, Opus support, HD audio, built-in 2.4GHz & 5GHz Wi-Fi and an easy-to-read 2.4" colour screen. The FAN-X303W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom and others.

*Note: Can be powered by the included PSU or 802.3af/at PoE.
Bluetooth Support: None
Ethernet Ports: 2x 10/100
Max Power Consumption: 2.39W (PSU); 3.49W (PoE)
Headset Port: 1x RJ9
Mounting: Desktop or Wall-Mount when used with FAN-WB108
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 0.6A (included) or 802.3af/at PoE
SIP Lines: 4
WiFi Support: Dual Band WiFi 4

Dimensions: 169 x 201.1 x 177.4 mm

Fanvil's FAN-V61W is a WiFi 6 desktop phone featuring dual Gigabit Ethernet ports, 4 SIP lines, Bluetooth & Opus support, integrated hall switch and a 2.4' colour LCD display. The FAN-V61W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: Bluetooth 5.4
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 6.7W
Headset Port: 1x RJ9
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 1A (Not included) or 802.3af/at PoE
SIP Lines: 4
WiFi Support: Dual Band WiFi 6

Dimensions: 295 x 222 x 56 mm

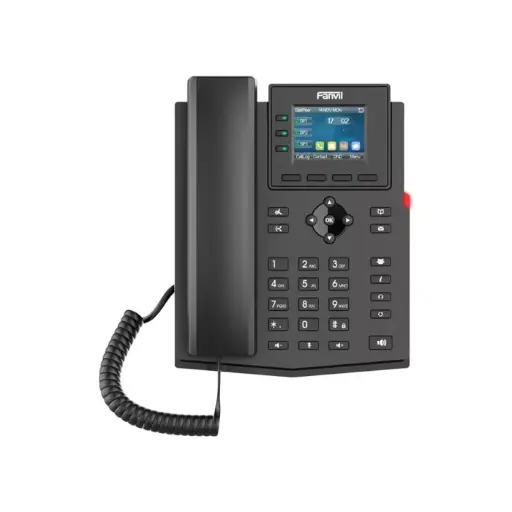

Fanvil's FAN-X303 features dual Fast Ethernet ports, 4 SIP lines, HD Voice, IPv4/IPv6, Opus support, a 3-way conference function and a 2.4' colour LCD display. The FAN-X303 is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: This IP Phone is not compatible with PoE. A 5V 0.6A Power Supply is included.
Bluetooth Support: None
Ethernet Ports: 2x 10/100

Max Power Consumption: 2.09W
Headset Port: 1x RJ9
Mounting: Desktop or Wall-Mount when used with FAN-WB108
Operating Temperature: 0°C to 45°C
PoE Input: None
Power Input: 5V 0.6A Power Supply (Included)
SIP Lines: 4
WiFi Support: None

Dimensions: 169 x 201.1 x 177.4 mm

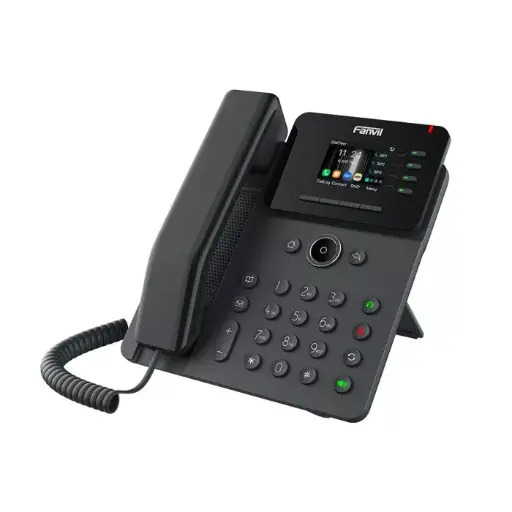

Fanvil's FAN-V61G features dual Gigabit Ethernet ports, 4 SIP lines, HD Voice, Opus support, a 6-way conference function, integrated hall switch and a 2.4' colour LCD display. The FAN-V61G is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: None
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 6.7W
Headset Port: 1x RJ9
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 1A (Not included) or 802.3af/at PoE
SIP Lines: 4
WiFi Support: None

Dimensions: 295 x 222 x 56 mm

Fanvil's FAN-W610W features a 2.0” colour screen, IEEE802.11k/v/r roaming, built in Bluetooth and dual band WiFi with up to 9 hours of talk time. The FAN-W610W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom and others.
Bluetooth Support: Integrated Bluetooth 5.0
Ethernet Ports: None
Battery Capacity: 1900mAH Rechargable
Headset Port: Compatible with Bluetooth 5.0
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: None
Power Input: 5V 2A Power Supply (Included)
SIP Lines: 4
WiFi Support: Dual Band WiFi 4

Dimensions: 156 x 53 x 17.7 mm
Weight: 147g

8 Independent 100MPS POE ports; Video Content Analytics; 1-Ch Audio input; HDMI and VGA output at up to 1920×1080P; 1x SATA interface(Up to 6TB); Mini 1U case; 12VDC
Description
NVR-108-B
8-ch Mini 1U 4 PoE 4K NVR
Connectable to the third-party network cameras
Up to 8 network cameras can be connected
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
HDMI/VGA output at 1080p resolution
2-ch playback at 4 MP resolution or 4-ch at 1080p resolution
1 SATA hard disk can be connected with 6TB capacity
HDD quota management: different capacity can be assigned to different channel
Supports line crossing detection and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the
playback efficiency
One-key operation: automatically search, modify and add IP cameras after device is
activated
Hik-Connect and DyDDNS for easy network management
100 Mbps Ethernet network interface

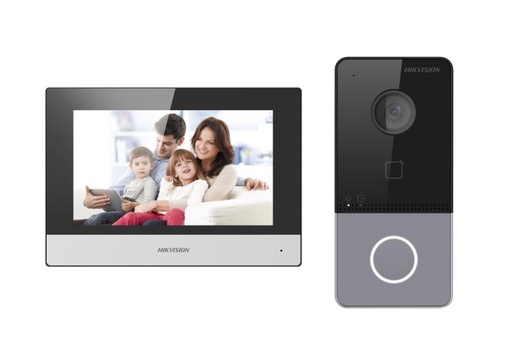

IP video intercom kit for villa or house, only one call button;
DS-KV6113-WPE1 x1;
DS-KH6320-WTE1 x1;
PSU x2;


Door station/System parameters
Operation systemEmbedded Linux operation system
Flash32 MB
RAM128 MB

Door station/Video parameters
Camera2MP HD camera
Night visionLow illumination IR supplement mode:3 m
Backlight compensationSupport
Digital noise reductionSupport
WDRTrue WDR
Field of viewHorizontal: 129° Vertical: 75°
Video Compression StandardH.264
StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
Motion detectionSupport
Flash-avoid frequency50 Hz, 60 Hz

Door station/Audio parameters
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio qualityNoise suppression and echo cancellation
Audio compression standardG.711 U
Audio compression Rate64 Kbps
Audio intercomTwo-way audio communication

Door station/Network parameters
Network protocolTCP/IP, RSTP
Wired network10/100 Mbps Ethernet

Door station/Device interfaces
RS-485 1
Alarm input4
Debugging port1
Grounding1
TAMPER switch1

Door station/General
Power consumption＜ 10 W
Working temperature-40° C to 53° C(-40° F to 127.4° F)
Working humidity10% to 95%
Dimension138 mm × 65 mm × 27 mm
InstallationSurface mounting
Protection level IP65
Indicator2
Power supply

IEEE802.3af, standard PoE

12 VDC

Indoor station/System parameters
Operation systemEmbedded Linux operation system
Memory128 MB
Flash 32 MB

Indoor station/Display parameters
Display screen7-inch colorful TFT screen
Display resolution1024 × 600
Operation methodCapacitive touch screen

Indoor station/Audio parameters
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio qualityNoise suppression and echo cancellation
Audio compression standardG.711 U
Audio compression Rate64 Kbps

Indoor station/Network parameters
Wired network 10/100 Mbps self-adaptive
Wireless networkWi-Fi 802.11 b/g/n
ProtocolTCP/IP, SIP, RTSP
RS-4851 RJ-45 10/100 Mbps self-adaptive

Indoor station/Device interfaces
RS-4851
Alarm input8-ch alarm inputs
Relay output2
TF cardMax to 32 G, SD 2.0 or lower version

Indoor station/General
Power consumption≤ 6 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 90%
Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

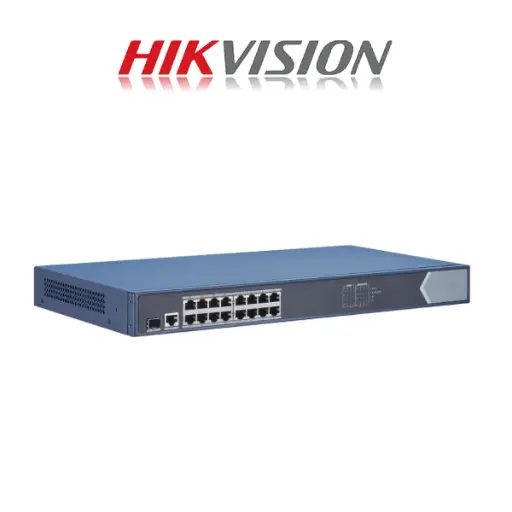

16 Port Gigabit Smart POE Switch

16 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
Total PoE power budget 230 W
Unified cloud management for security systems
Network topology at your fingertips
Remote troubleshooting
Visualized topology management
Up to 300 m long-range PoE transmission
6 kV surge protection
Downlink Ports 16 Ports
Downlink Ports Speed 1Gb
Downlink Ports Type RJ45 Ethernet ports
Management Layer Smart Managed
POE 16 Ports
Switch Form Factor Rackmount
Uplink Ports 2 Ports
Uplink Ports Speed 1Gb
Uplink Ports Type SFP
Warranty 3 Year Warranty

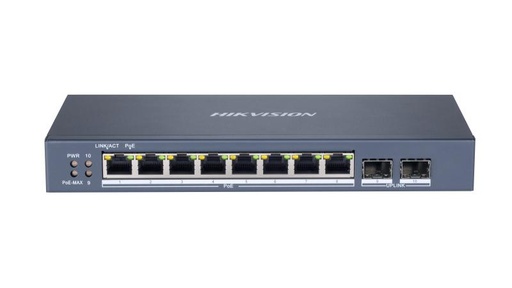

8 Port Gigabit Smart POE Switch
8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
PoE watchdog to auto detect and restart the cameras that do not respond.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation,
SNMP, QoS and so on.
ShellMetal material
Net Weight1.21 kg (2.67 lb)
Gross Weight1.3 kg (2.87 lb)
Dimensions (W × H × D)217.60 mm × 27.80 mm × 108.55 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply48 VDC, 2.5 A
Installation ModeDesk-Mounted,Wall-Mounted
Max. Power Consumption120 W
Power Consumption in Idle7 W
Surge Protection6 KV

Network Parameters
Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table8 K
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
Internal Cache4.1 Mbits

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power PinEnd-span: 1/2(+), 3/6(-);
PoE PortPoE: Ports 1 to 8
Max. Port Power30 W
PoE Power Budget110 W

Software Function
Long Range

Ports 1 to 8: up to 300 m.

Long range performance may vary depend on camera model or cable condition.
Port Isolation

Ports 1 to 8: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 8 aggregation groups.
Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.
QoS

QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.

Support port-based priority configuration.

Support SP, WRR priority schedule mode.
VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 4094 VLAN.
HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.
System Maintenance Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Storm Control

Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.

Support port rate limiting based on broadcast, multicast, and unknown unicast packets.

The changing landscape of security systems demands effective remote management. Hikvision’s latest Smart Managed Switches facilitate precise remote deployment and configuration. These switches are cloud-managed and seamlessly integrate with the Hik-Partner Pro (HPP) app, providing an easy way to securely manage your network anytime, anywhere.

Now you can quickly deploy and maintain your system and troubleshoot issues without having to go to the site. Security system management is now more convenient than ever.
Downlink Ports 16 Ports
Downlink Ports Speed 10/100
Downlink Ports Type RJ45 Ethernet ports
Management Layer Layer 2
POE 16 Ports
Switch Form Factor Rackmount
Uplink Ports 2 Ports
Uplink Ports Speed 1Gb
Uplink Ports Type SFP
Warranty 3 Year Warranty

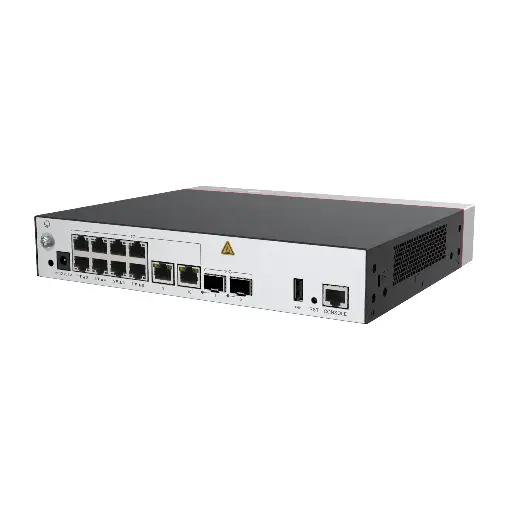

Huawei Wireless Access Controller 256 AP| AC650-256AP

The AC650-256AP is a small-capacity box wireless access controller (WAC) for small office home office (SOHO) enterprises. It can manage up to 256 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for wired and wireless users
Product Features:
Supports up to 256 access points
Wi-Fi 6 compatibility for enhanced performance
Robust security features to safeguard your network
Simplified network administration with a user-friendly interface
Scalable design allows for easy network expansion
Reliable fibre Ethernet switch function ensures stable connectivity
LAN Ports 4 Ports
LAN Ports Speed 1000 Mbps
Mesh Capable No
POE 1 Port
Wireless Bands Dual Band
Wireless Standard Wi-Fi 5
Warranty 2 Year Warranty

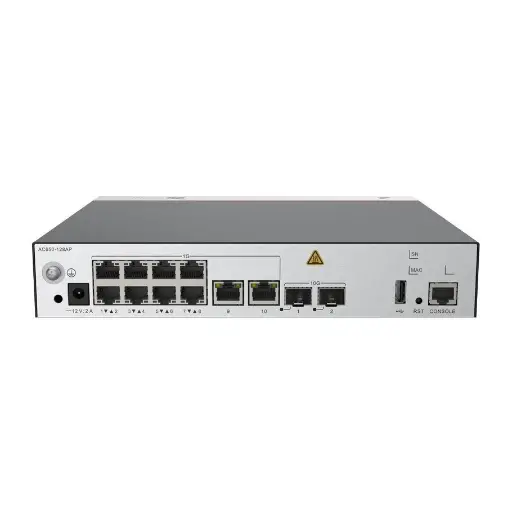

The AC650-128AP is a wireless access controller (AC) developed by Huawei for SME Network markets. It works with Huawei access points (APs) to build wireless networks such as small campus networks, office networks of small enterprises, and hotspot coverage.
LAN Ports 4 Ports
LAN Ports Speed 1000 Mbps
Mesh Capable No
POE 1 Port
Wireless Bands Dual Band
Wireless Standard Wi-Fi 5
Warranty 2 Year Warranty

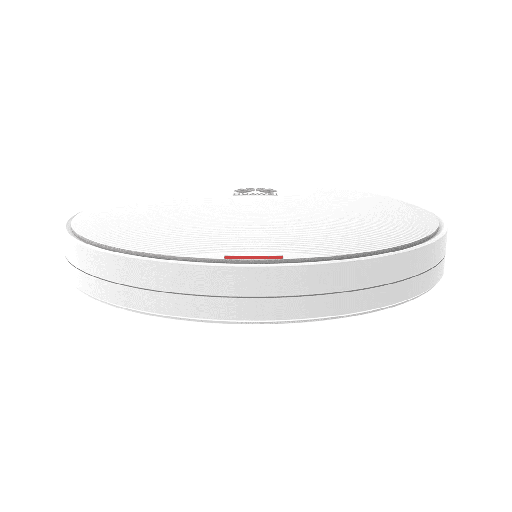

AirEngine 6761-21 and AirEngine 6761-21E are indoor Wi-Fi 6 (802.11ax) Access Points (APs) designed for high-density scenarios such as small and midsize enterprise offices, education institutions, and stadiums.

AirEngine 6761-21 features built-in Dynamic-Zoom Smart Antennas that automatically adjust the coverage angle to optimize for high- and low-density scenarios. Both APs support 4 x 4 Multiple-Input Multiple-Output (MIMO), and can simultaneously deliver services on both the 2.4 GHz and 5 GHz frequency bands, achieving a rate of up to 3.55 Gbit/s.

Parameters AirEngine 6761-21 & 6761-21E Access Points
Dimensions (Diameter x Height) Φ220 x 53 mm
Power Input DC: 43.2–57.6 V
PoE power supply: In compliance with 802.3at
Maximum Power Consumption 22 W (excluding USB)
Note: The actual maximum power consumption depends on local laws and regulations
Maximum Number of Users ≤ 1024
Note: The actual number of users varies according to the environment
Operating Temperature –10°C to +50°C
Antenna Type AirEngine 6761-21: Built-in Dynamic-Zoom Smart Antennas
AirEngine 6761-21E: External antennas
MIMO:Spatial Streams 2.4 GHz: 4 x 4:4, 5 GHz: 4 x 4:4
Radio Protocols 802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate 3.55 Gbit/s
Warranty 2 Year Warranty

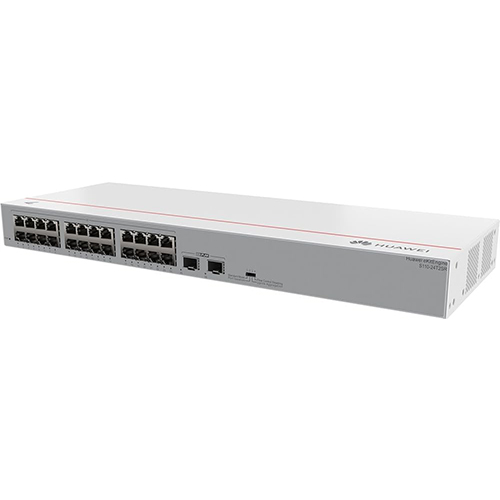

Description S110-24LP2SR (24*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power)
Features Downlink: (24*10/100/1000BASE-T ports, PoE+)
Uplink: 2 x GE SFP ports
MAC Address Entry: 8K MAC address entries
Dimensions (H x W x D): 43.6 mm x 442 mm x 260 mm
Weight: 3.4 kg
Input Voltage: 110 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum Power Consumption: Without PoE: 27 W
Maximum Power Consumption: With PoE: 151 W (PoE: 124 W)
Operating Temp: 0°C to 45°C (0 m to 1800 m)
Storage Temp: –40°C to +70°C
Operating Humidity: 5% to 95%
Working Modes: Standard mode, port isolation, flow control disabling
Heat Dissipation Mode: Fanless, natural heat dissipation
Downlink Ports 24 Ports
Downlink Ports Speed 1 Gbps
Downlink Ports Type RJ45 Ethernet ports
Management Layer Layer 2
POE 8 Ports
Switch Form Factor Rackmount
Uplink Ports 4 Ports
Uplink Ports Speed 1 Gbps
Uplink Ports Type SFP+
Warranty 1 Year Warranty

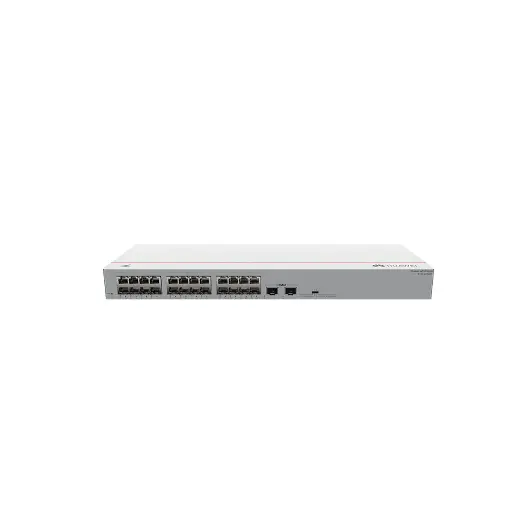

Introducing the Huawei S11024T2SR Switch – your ultimate solution for high-performance networking. With 24 high-speed Gigabit Ethernet ports and 2 robust SFP+ uplink ports, this switch offers seamless connectivity and lightning-fast data transfer rates. Ideal for small to medium-sized businesses, it ensures reliable and efficient network management. The compact, durable design allows for versatile deployment, while Huawei’s intuitive interface simplifies operation. Experience unparalleled network performance and reliability with the Huawei S11024T2SR Switch.
Downlink Ports 12 Ports
Downlink Ports Speed 10/100/1000 Mbps
Downlink Ports Type Ethernet
Management Layer Layer 2+
POE 12 Ports
Switch Form Factor Rackmount
Uplink Ports 2 Ports
Uplink Ports Speed 10Gb
Uplink Ports Type SFP
Warranty 5 Year Warranty

Downlink Ports 24 Ports
Downlink Ports Speed 10/100/1000 Mbps
Downlink Ports Type Ethernet
Management Layer Layer 3
POE 24 Ports
Switch Form Factor Rackmount
Uplink Ports 4 Ports
Uplink Ports Speed 10Gb
Uplink Ports Type SFP+
Warranty 5 Year Warranty

The S380-L4P1T is a reliable network switch designed for efficient and secure networking. Ideal for small to medium-sized businesses, this robust switch offers a suite of powerful features.

This switch includes one GE WAN port and four GE LAN ports, each supporting PoE+ with up to 50W power output. This makes it perfect for powering devices like IP cameras, VoIP phones, and wireless access points.

Key Features:

1 GE WAN Port: Ensures high-speed Internet access.

4 GE LAN Ports: Provides seamless local network connectivity.

PoE+ Support: Delivers up to 50W per port.

Compact Design: Fits easily in constrained environments.

Plug and Play: Simple setup with no configuration required.

High Performance: Ensures reliable and fast data transfer.
Warranty 5 Year Warranty

CloudEngine S380 Series Multi-Service Gateway

Layer 2 : 2K MAC entries, 16 VLANs
Layer 3 : Static Route, Load balancing
DHCP server/client , PPPOE client, NAT
Web management, Cloud management
Number of Clients: 250
PoE power: 124W
Switching Capacity: 16Gbps
Forwarding Performance: 420Kpps
Warranty 5 Year Warranty

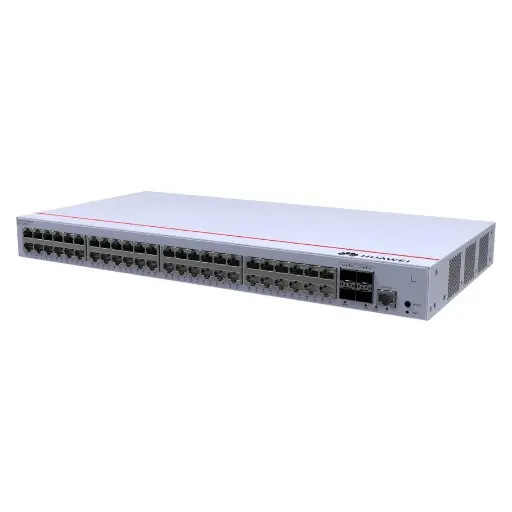

Huawei CloudEngine S310-48T4S 1U Gigabit Ethernet Switch 98012203
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 4
Console port: RJ-45
Design
Rack mounting: Yes
Form factor: 1U
Product colour: Grey
Redundant fans support: No
Number of fans: 1 fan(s)
Performance
Internal memory: 2000 MB
Flash memory: 1000 MB
Noise level: 46.6 dB
Power
Power source: AC
Redundant power supply (RPS) support: No
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 1.6 A
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Warranty 5 Year Warranty

Huawei S5735-L8P4X-IA1 8-port 10/100/1000BASE-T 4-port 10GE SFP+ PoE+ Switch 98011579

Introducing the exclusive and affordable Huawei Switch S5735-L8P4X-IA1, your ultimate solution to all your networking needs. This incredible product comes with extraordinary network speed and an array of practical features that make it your smart choice. Its value, functionality, and unparalleled performance creates an exceptional networking experience that's hard to beat.

Smooth and Efficient Network Management

The Huawei Switch S5735-L8P4X-IA1 allows for effortless management of your network. Packed with eight Ethernet 10/100/1000 ports and four 10 Gig SFP+ ports, it provides massive data handling capacity. This means an instant, lightning-fast, flawless performance that keeps your network running smoothly and efficiently.

Advanced Features You'll Love

What sets the Huawei Switch S5735-L8P4X-IA1 apart are its advanced features. It boasts of innovative technologies like intelligent stacking (iStack), super virtual fabric (SVF), and free mobility. Without getting too technical, these magnificent features ensure a seamless link aggregation and help your network adapt to your ever-growing business needs. This guarantees the ultimate in flexibility, reliability, and easy deployment, all while keeping your investment to the minimum.
