High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensionØ141 mm × 99.9 mm (Ø5.6″ × 3.9″)
Package Dimension140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

HiLook 4-ch Mini 1U 4 PoE 4K NVR
Up to 8 channel IP cameras can be connected
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports decoding H.264+/H.264 multiple video formats
Up to 4-ch @ 1080p decoding capacity
1 HDD for continuous video recording
Video and Audio
IP video input8-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
HDMI/VGA output1-ch, resolution:1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output1-ch, RCA (Linear, 1kΩ)
Recording resolution4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)

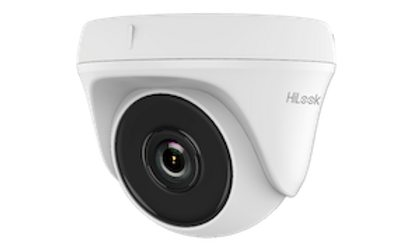

HiLook Dome Camera THC-T150-P 5MP 20m IR Specifications:
Image Sensor 5MP High Performance CMOS Sensor
Resolution 2560 x 1944 Resolution
Lens 2.8mm Fixed Lens
IR 24/7 Color Imaging with F1.0 Aperture
Power Supply 12v DC 4.3w Consumption

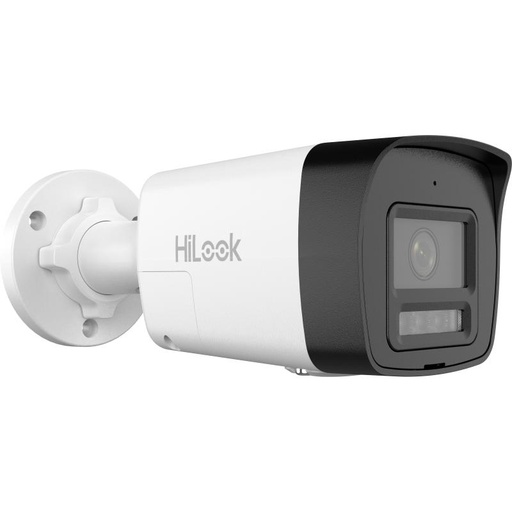

High quality imaging with 6 MP resolution Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range Clear imaging even with strong back lighting due to 120 dB WDR technology Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) Provide real-time security via built-in two-way audio
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Water and dust resistant (IP67)
Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 106° to 35.6°, vertical FOV 55.9° to
20°, diagonal FOV 127.4° to 40.8°
Lens MountØ14
Iris TypeFixed
ApertureF1.6
DORI
DORID: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m
General
Power 12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 12.9 W
Material Metal
Dimension Ø105 mm × 285.8 mm (Ø4.13 × 11.25\")"
Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight Approx. 805 g (1.8 lb.)
With Package Weight Approx. 1405 g (3.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

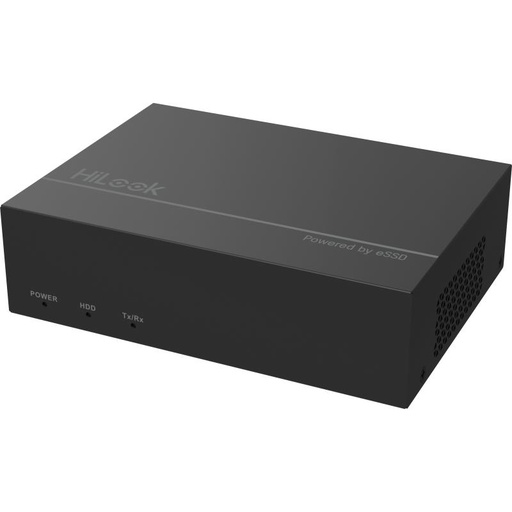

HiLook 8-ch 1080p Lite 1U H.265 eSSD DVR
Powered by eSSD technology
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
Scene-Adaptive Bitrate Control video compression
Up to 1080p Lite@15 fps encoding capability
Low power consumption
Audio via coaxial cable
Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
Video and Audio
IP Video Input
2-ch
Up to 5 MP resolution
Support H.265+/H.265 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input8-ch via coaxial cable
Audio Output1-ch via HDMI
Synchronous playback8-ch
Recording
Video CompressionH.265 Pro/H.265
Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame Rate
Main stream:
1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
Note:
1080p Lite/720p is 15 fps by default
Sub-stream:
CIF/QVGA@15 fps
Video Bitrate According to the actual scene, scene-adaptive bitrate control technology would automatically allocate appropriate bitrate to ensure the stability of recording period.

General
Power Supply12 VDC, 1 A
Consumption≤ 6.2 W (with eSSD)
Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
Working Humidity10% to 90%
Dimension (W × D × H)152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
Weight≤ 0.5 kg (with eSSD, 1.1 lb.)

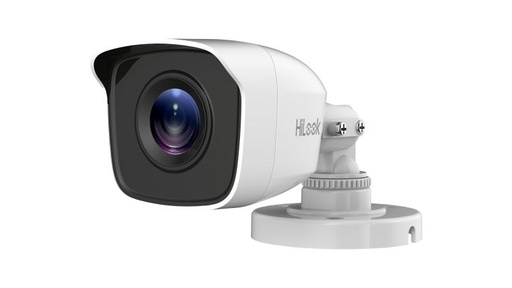

THC-B150-M5 MP Fixed Mini Bullet CameraHigh quality imaging with 5 MP, 2560 × 1944 resolution2.8 mm and 3.6 mm fixed focal lensUp to 20 m IR distance for bright night imagingOne port for four switchable signals (TVI/AHD/CVI/CVBS)Water and dust resistant (IP66)

Short Specifications:

Image Sensor 2MP High Performance CMOS Sensor
Resolution 1920 x 1080 Resolution
Lens 2.8mm Fixed Lens
IR 24/7 Color Imaging with F1.0 Aperture
Power Supply 12v DC 2.4w Consumption

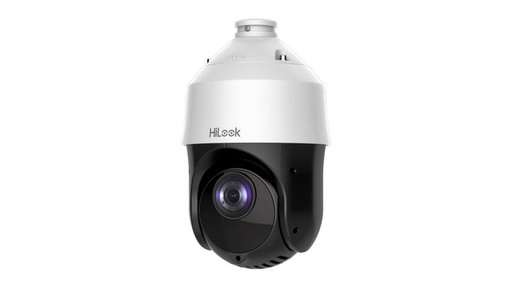

Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)

Camera
Image Sensor1/2.8" progressive scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC
ON),
0 Lux with IR
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Zoom25x optical, 16x digital
Lens
Focal Length4.8 mm to 120 mm, 25× optical
FOV
Horizontal field of view: 57.6° to 2.5° (Wide-Tele),
Vertical field of view: 34.4° to 1.4° (Wide-Tele),
Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
FocusAuto, semi-auto, manual
ApertureF1.6 to F3.5
Zoom SpeedApprox. 3.2 s (optical lens, wide-tele)
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 100 m
Smart Supplement Light Yes
PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)From -15° to 90° (Auto-flip)
Pan Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Tilt Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Proportional Pan Yes Presets300 Preset Freezing Yes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan PTZ Status DisplayYes Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust Power-off MemoryYes

General
Power
12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4
Max.:18 W (IR Max.6 W)
DimensionØ 165.9 mm × 290 mm (Ø 6.53" × 11.42")
WeightApprox. 2.5 kg (5.51 lb)
MaterialADC 12, PC+10% GF
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

8 Independent 100MPS POE ports; Video Content Analytics; 1-Ch Audio input; HDMI and VGA output at up to 1920×1080P; 1x SATA interface(Up to 6TB); Mini 1U case; 12VDC
Description

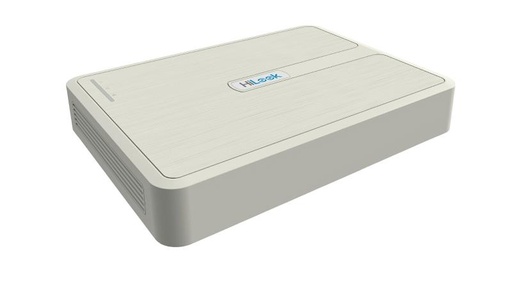

NVR-108-B
8-ch Mini 1U 4 PoE 4K NVR
Connectable to the third-party network cameras
Up to 8 network cameras can be connected
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
HDMI/VGA output at 1080p resolution
2-ch playback at 4 MP resolution or 4-ch at 1080p resolution
1 SATA hard disk can be connected with 6TB capacity
HDD quota management: different capacity can be assigned to different channel
Supports line crossing detection and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the
playback efficiency
One-key operation: automatically search, modify and add IP cameras after device is
activated
Hik-Connect and DyDDNS for easy network management
100 Mbps Ethernet network interface

General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)

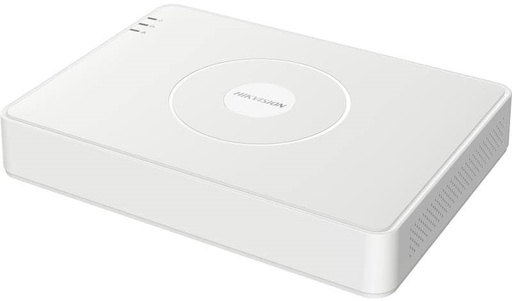

Hikvision 16-ch 1080p Mini 1U H.265 AcuSense DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 6 MP)
Encoding ability up to 3K/5M Lite @ 12 fps

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported
Perimeter Protection
Line Crossing Detection/Intrusion Detection4-ch
Facial Detection
Facial Detection and CaptureFace picture detection, face picture search
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Network
Remote Connection128
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface
General
Power Supply12 VDC, 2A
Consumption≤ 24W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Weight≤ 1 kg (2.2 lb)

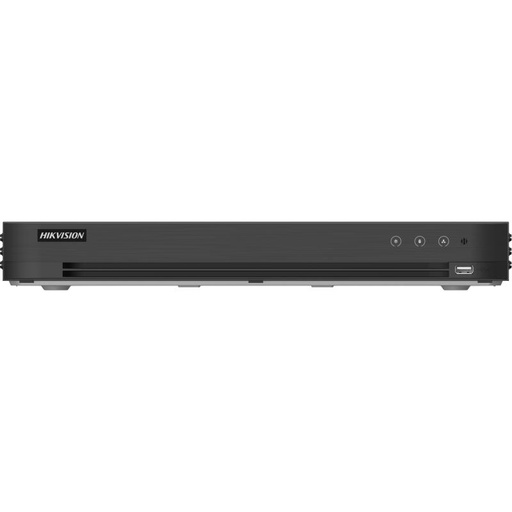

Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

32 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/ 5MP Lite@12fps
Up to 40 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Quick search by object or event type is supported.
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search.
4-ch face picture capture
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

Hikvision 7100 Value Series 4-ch 1080P AcuSense 1U Mini DVR iDS-7104HQHI-M1/S

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Up to 2-ch Human/Vehicle Analysis
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
4-ch BNC interface, supporting coaxitron connection
Audio via coaxial cable
Up to 6-ch IP camera inputs (up to 6 MP)
1x RJ45 10/100 Mbps self-adaptive Ethernet interface (Additional switch required for IP Camera's)
Encoding ability up to 3K/5M Lite @ 12 fps
2x USB 2.0 Real panel

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 3K/5 MP Lite resolution
Storage and Playback

1x SATA interface (up to 6 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

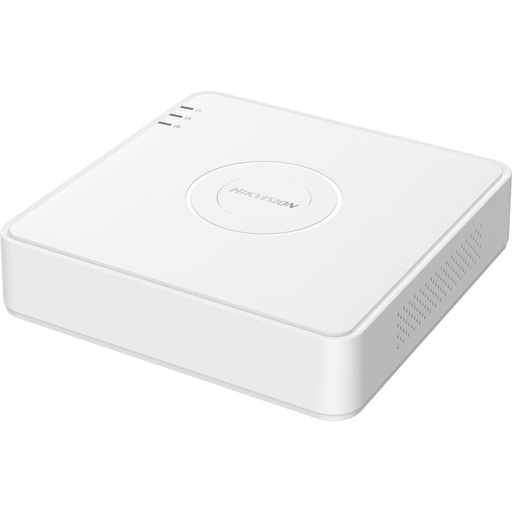

Hikvision 4-ch 720p Mini 1U H.265 DVR
Smart Function

Deep learning-based motion detection 2.0

Compression and Recording

H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs

Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Playback

Smart search for efficient playback

Network & Ethernet Access

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 2 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
1 SATA interface - Up to 10 TB capacity (HDD not included)

General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 0.8 kg (without HDD, 1.8 lb.)

Hikvision 7100 Series 16-ch 720p Mini DVR DS-7116HGHI-M1 - 16 channels and 1 HDD 1U Ausens DVR, Efficient H.265 pro+ compression technology, encoding ability up to 3K/5M Lite @ 12 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 24 network cameras can be connected.

Product Overview

The DS-7116HGHI-M1 is a 16-channel 720p Mini 1U H.265 DVR featuring deep learning-based Motion Detection 2.0 for accurate human and vehicle classification, reducing false alarms. It supports multiple video inputs including HDTVI, AHD, CVI, CVBS, and up to 18 IP channels at 5MP resolution, with efficient H.265 Pro+ video compression for reduced storage needs. With up to 1080p Lite encoding at 15 fps, audio via coaxial cable, and a maximum 1200m transmission distance for 720p HDTVI signals, it offers versatile, high-quality surveillance recording and playback.

Features

•Smart Function
Deep learning-based motion detection 2.0
•Compression and Recording
H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
•Storage and Playback
1x SATA interface (up to 10 TB capacity)
Smart search for efficient playback
•Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Specifications

•Product Code: DS-7116HGHI-M1
•Description: Hikvision 7100 Series 16-ch 720p Mini DVR
•Deep learning-based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Max. 1200 m for 720p HDTVI signal
•Encoding ability up to 1080p lite @ 15 fps
•Audio via coaxial cable
•Up to 18-ch IP camera input (up to 5 MP)
Dimension (W × D × H) 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Weight≤ 1.8 kg (without HDD, 4.0 lb.)

Hikvision 7100 Series 8-ch AcuSense 1080p Mini 1U DVR

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 4 MP Lite resolution

Storage and Playback

1 SATA interface (up to 10 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
2x USB 2.0
Audio via coaxial cable
Up to 12-ch IP camera inputs (up to 6 MP)
Up to 1080p@15 fps encoding capability
General
Power Supply12 VDC, 1.33 A
Consumption≤ 12 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 1 kg (without HDD, 2.2 lb.)

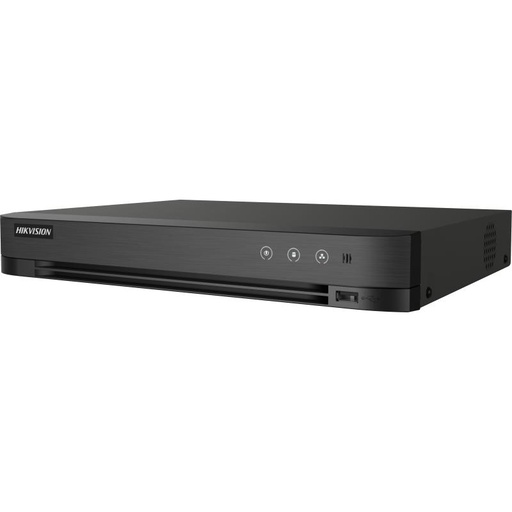

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR 1 SATA 12TB supports 2ch facial recognition or 4ch advanced perimeter VCA or 8ch Motion 2.0
Feature
8 channels and 1 HDD 1U AcuSense DVR
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 4-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5M Lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 -ch network cameras can be connected
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Network
Remote Connection64
Total Bandwidth96 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial InterfaceRS-485 (half-duplex)
SATA1 SATA interface, up to 10 TB capacity for each disk
Alarm In/OutN/A (optional to support)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply12 VDC, 1.5 A
Consumption≤ 18 W (without HDD)
Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight≤ 1.78 kg (3.9 lb) (without HDD)

8-ch 720p Mini 1U H.265 DVR Deep learning based human and vehicle targets classification of Motion Detection 2.0 H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 10-ch IP camera input (up to 5 MP) Encoding ability up to 1080p lite @ 15 fps Max. 1200 m for 720p HDTVI signal Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; SATA 1 SATA interface Capacity Up to 4 TB capacity for each disk

Product Overview

The 8-ch 720p Mini 1U H.265 DVR features deep learning-based motion detection 2.0, enabling accurate human and vehicle classification to reduce false alarms. It supports H.265 Pro+/H.265 Pro/H.265 video compression and various video inputs, including HDTVI, AHD, CVI, CVBS, and IP, with up to 10 IP camera inputs. Equipped with a SATA interface for storage up to 4TB, it offers efficient recording and playback capabilities.

Features

•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Audio via coaxial cable
•Up to 10-ch IP camera inputs (up to 5 MP)
•Up to 1080p Lite@15 fps encoding capability
•Max. 1200 m for 720p HDTVI signal

Specifications

•Product Code: DS-7108HGHI-M1
•Description: Hikvision DS-7108HGHI-M1 DVR
•Power Supply: 12 VDC, 1.5 A
•Consumption: ≤ 17 W (without HDD)
•Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
•Working Humidity: 10% to 90%
•Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•Weight: ≤ 1 kg (without HDD, 2.2 lb.)
•Total Bandwidth: 72 Mbps
•Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM, HTTPS
•Remote Connection: 64
•Network Interfac : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•ideo Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
•Main stream:
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
•4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
•Video Bitrate : 32 Kbps to 4 Mbps
•Stream Type : Video, Video & Audio
•Audio Compression : G.711u
•Audio Bitrate : 64 Kbps

Hikvision 16-channel 1080p 1U H.265 AcuSense DVR IDS-7216HQHI-M2/XT

Features:

16 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5MP Lite@12fps
Up to 24 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio technology
General
Power Supply12 VDC, 3.3 A
Consumption≤40 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
Weight≤ 2 kg (4.4 lb)

Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

Pro Series with AcuSense
Detect humans & vehicles and search fast with deep learning technology

- 32 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/ 5MP Lite@12fps
- Up to 40 channels IP camera inputs, each channel up to 6MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Specifications:

Product colour: Black
Maximum video resolution: 3840 x 2160 pixels
Video compression formats: H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Video resolutions: 1280 x 720,1920 x 1080,2560 x 1440,3840 x 2160
Video input channels: 32 channels
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Supported network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Ethernet LAN data rates: 10,100,1000 Mbit/s
Maximum HDD capacity: 12 TB
Supported HDD interfaces: Serial ATA
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

Product Overview
The Hilook 16Ch 16x 2MP Bullet Cameras with 1TB SSD CCTV DIY Kit enhances security for homes and businesses with sixteen high-definition 2MP bullet cameras, ensuring clear video surveillance. The included 1TB SSD provides ample storage for continuous recording, allowing easy access to footage whenever needed. Designed for DIY installation, this comprehensive kit is perfect for users seeking a reliable and scalable monitoring solution.
Specifications
Product Code: HIL-21602-1TBSSD
Description: Hilook 16Ch 16x 2MP Bullet Cameras with 1TB SSD CCTV DIY Kit
Camera Resolution: 2 Megapixels
Storage Capacity: 1TB Solid State Drive
Number of Channels: 4
Weatherproof Rating: IP66
Night Vision Range: Up to 30 meter
Remote Viewing: Yes, via moble app

HiLook 2.8mm Lens h.264 Compression Technology; 128GB SD card Slot; Two Way Audio; Wireless Connection
