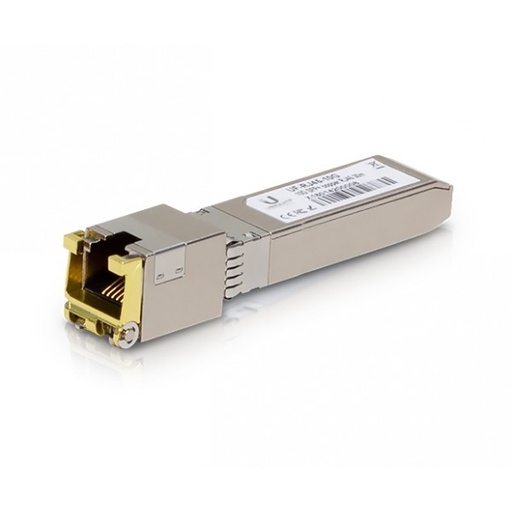

Ubiquiti 10Gbps RJ45 Copper SFP+ Module

Ubiquiti Networks offers a variety of U® Fiber modules to suit your fiber connectivity applications.

To connect copper Ethernet cables to SFP ports, use the UF-RJ45-10G in an SFP+ port for speeds of up to 10 Gbps and distances of up to 30 m, or use the UF-RJ45-1G in an SFP port for speeds of up to 1 Gbps and distances of up to 100 m.
Supported Media Copper
Connector Type RJ45
BiDi N/A
TX Wavelength N/A
RX Wavelength N/A
Data Rate 1/10 Gbps
Cable Distance
1 Gbps
(Cat 5e)
100 m
10 Gbps
(Cat 6A)
30 m
Pack Options 1-Pack

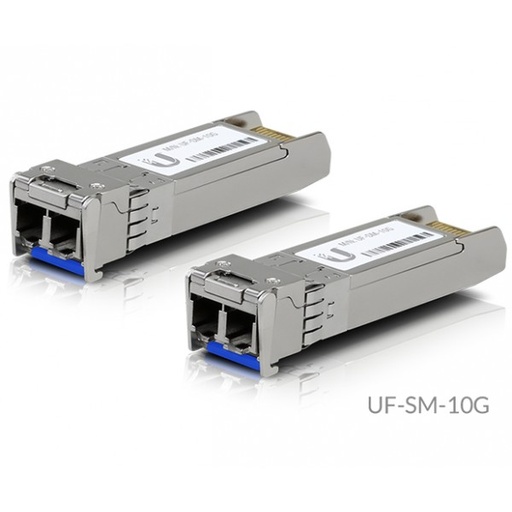

Ubiquiti 10Gbps Single Mode (LC) SFP+ Module Pair


The UF-SM-10G is ideal for long-distance, outdoor, bi-directional, single-mode fiber runs for distances of up to 10 km at 10 Gbps.

Outdoor Fiber Installations

For long-distance runs of up to 10KM, use UFiber 10G single-mode modules for maximum reuse of existing infrastructure and maximum speed.
UF-SM-10G
Supported Media Single-Mode Fiber
Connector Type (2) LC
BiDi No
TX Wavelength
1310nm
RX Wavelength
1310nm
Data Rate 10 Gbps SFP+
Cable Distance 10 km
Pack Options 1-Pair

Please note: This kit is only sold as a pair (one box with 2 units inside)

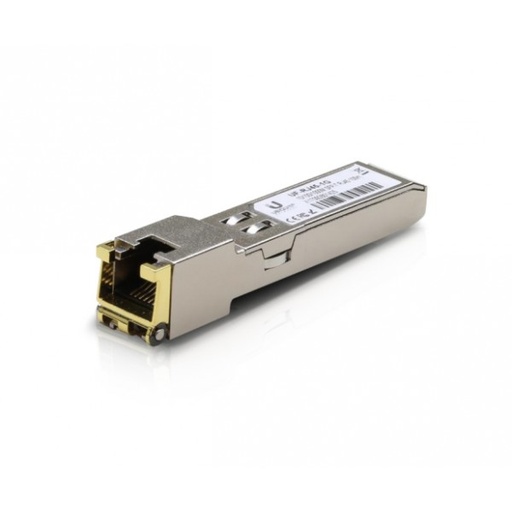

Ubiquiti 1Gbps RJ45 Copper SFP Module


Ubiquiti Networks offers a variety of U® Fiber modules to suit your fiber connectivity applications.


To connect copper Ethernet cables to SFP ports, use the UF-RJ45-10G in an SFP+ port for speeds of up to 10 Gbps and distances of up to 30 m, or use the UF-RJ45-1G in an SFP port for speeds of up to 1 Gbps and distances of up to 100m.
upported Media Copper
Connector Type RJ45
BiDi N/A
TX Wavelength N/A
RX Wavelength N/A
Data Rate 10/100/1000 Mbps
Cable Distance 100 m

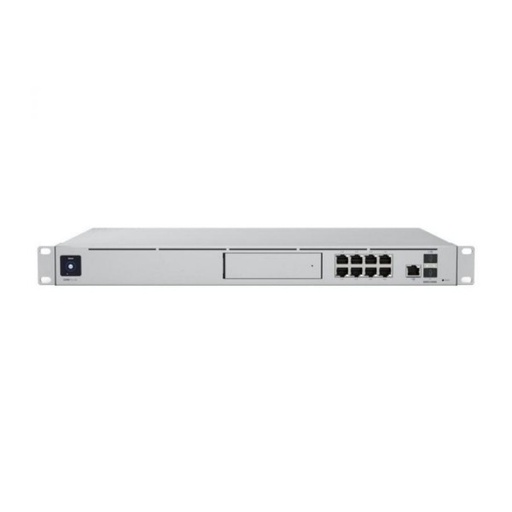

All-in-one router and security gateway with an integrated PoE switch and network video recorder.

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).


Features:
1.7 GHz quad-core processor
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(8) GbE RJ45 ports, including (6) PoE and (2) PoE+ LAN ports
(1) 10G SFP+ LAN port
(1) 1.3" LCM color touchscreen for at-a-glance network monitoring
Customizable internet threat filtration and traffic identification for enhanced network security
Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app
1U-sized, rack-mountable device
Connect a SmartPower Redundant Power System to create an uninterruptible network
Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5" HDDs
128 GB integrated storage for full UniFi OS Application experience
Dimensions
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
Weight 5 kg (10.9 lb)

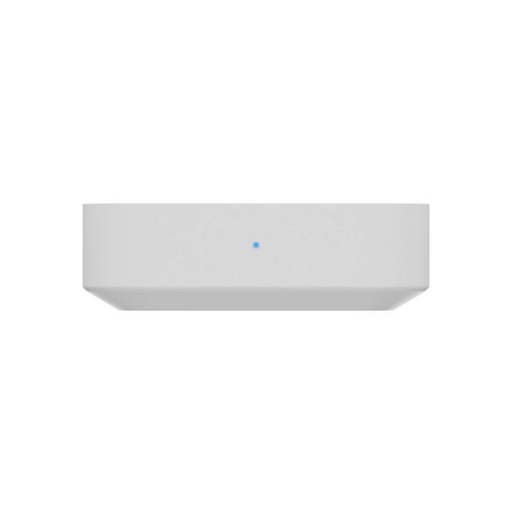

A compact and powerful UniFi gateway with a full suite of advanced routing and security features.

Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later
(1) GbE WAN port
(1) GbE LAN port
Compact footprint
USB-C powered (adapter included)
Key Features
1 x Gbe LAN, 1 x Gbe WAN, USB Type-C PSU
Weight & Dimensions
W : 13cm
L : 13cm
H : 8cm
Weight : 520g

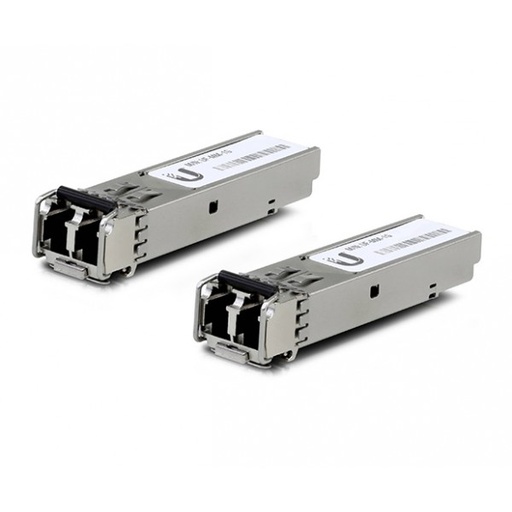

Ubiquiti Multi Mode (LC) SFP Module Pair

The UF-MM1G is ideal for short-distance, outdoor, bi-directional, multi-mode fiber runs for distances of up to 550m at 1 Gbps.

Outdoor Fiber Installations

For short-distance runs of 300+ meters, use UFiber 1G multi-mode modules for maximum reuse of existing infrastructure.
UF-MM-1G-S
Supported Media Multi-Mode Fiber
Connector Type (1) LC
BiDi ✓
TX Wavelength
850 nm

RX Wavelength
850 nm

Data Rate 1.25 Gbps SFP
Cable Distance 550 m
Pack Options 1-Pair

Please note: This kit is only sold as a pair (one box with 2 units inside)

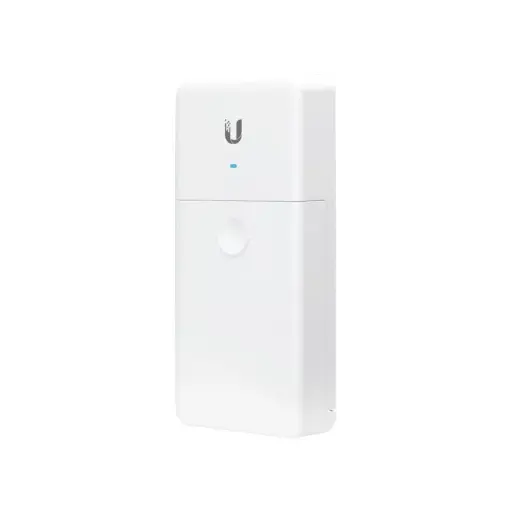

Ubiquiti's NS4 is an unmanaged, outdoor, 4 port Gigabit switch with PoE passthrough. If powered by 24V Passive PoE can provide up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

*Note: PoE Injector not Included.

Specifications

Ethernet Ports: 4x 10/100/1000
Max. Power Consumption: 30W
Mounting: Wall or Pole Mount
Operating Temperature: -30C ~ 70C
PoE Input: Passive 24V PoE
PoE Output: 24V Passive PoE Pass-through
Power Input: 24V Passive PoE (Not Included)
Supported Voltage Range: 21.6 - 30V
Dimensions: 196.4 x 93.5 x 32.4mm
Weight: 271g

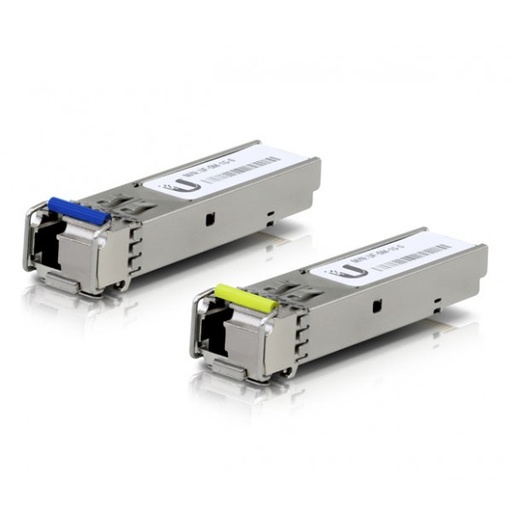

Ubiquiti Single Mode (LC) SFP Module Pair
The UF-SM1G is ideal for long-distance, outdoor, bi-directional, single-mode fiber runs for distances of up to 3 km at 1 Gbps.
Outdoor Fiber Installations
For long-distance runs of 300+ meters, use UFiber 1G single-mode modules for maximum reuse of existing infrastructure.
UF-SM-1G-S
Supported Media Single-Mode Fiber
Connector Type (1) LC
BiDi ✓
TX Wavelength Blue1310 nm Yellow1550 nm
RX Wavelength Blue 1550 nm Yellow 1310 nm
Data Rate 1.25 Gbps SFP
Cable Distance 3 km
Pack Options 1-Pair

Ubiquiti's ER-6P is a professional 5 port Gigabit Ethernet router with SFP connectivity. Based on EdgeOS, it contains a quad-core, 1Ghz processor and 24v PoE out. It is designed for ISP (internet service provider) or SME (small to medium enterprise) deployments which require advanced routing features. It can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Wall Mount or Desktop
Operating System: EdgeMAX
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 24V Passive PoE Output on Ports 0~4
Power Input: 24V 2.5A Power Supply (Included)
Processor: 4-Core 1GHz; MIPS64
Serial Interface:1x RJ45 Serial Port
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 16 - 30VDC
System Memory: 1GB DDR3 RAM
USB Ports: 1x USB 3
Dimensions: 229 x 136.5 x 31.1 mm
Weight: 730 g

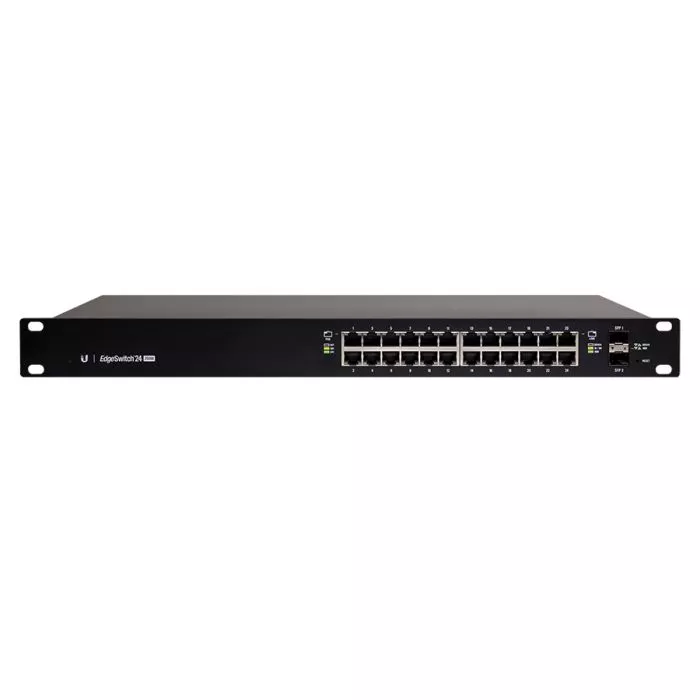

Ubiquiti's ES24-250 is a managed 24 port Gigabit PoE switch with SFP connectivity. It features 802.3af/at PoE as well as passive 24v PoE on all Ethernet ports with a maximum budget of 230W. L2/L3 functionality makes them suitable for a wide range of high performance applications. It can be managed via the UISP network management platform.
Specifications
Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop or Rack-Mount
Operating System: EdgeMAX
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at or 24V Passive PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: 1x RJ45 Ethernet In/Out Band
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100V-240V
Dimensions: 485 x 43.7 x 285.4mm
Weight: 4.7Kg

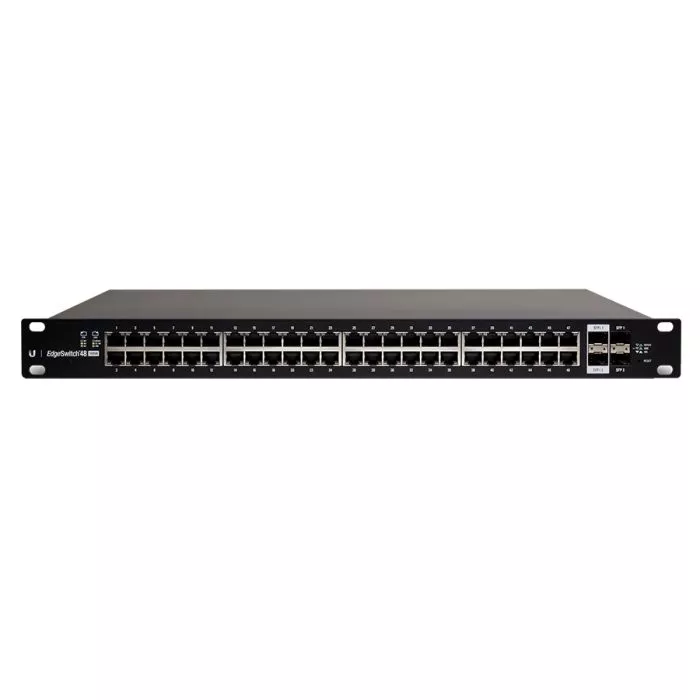

Ubiquiti's ES48-500 is a managed 48 port Gigabit PoE switch with SFP+ connectivity. It features 802.3af/at PoE as well as passive 24v PoE on all Ethernet ports with a maximum budget of 436W. L2/L3 functionality makes them suitable for a wide range of high performance applications. It can be managed via the UISP network management platform.
Specifications
Ethernet Ports: 48x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 64W
Mounting: Desktop or Rack-Mount
Operating System: EdgeMAX
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at or 24V Passive PoE on Ports 1~48
Power Input: 1x IEC Power Cord (Included)
Serial Interface: 1x RJ45 Ethernet In/Out Band
SFP Ports: 2x 10Gbps ; 2x 1.25Gbps
Supported Voltage Range: 100V-240V
Dimensions: 485 x 43.7 x 374.6mm
Weight: 6.1Kg

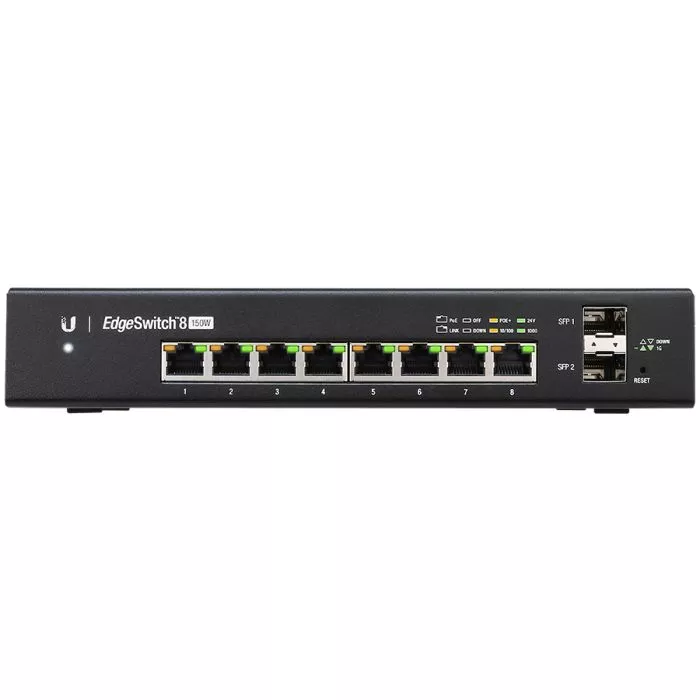

Ubiquiti's ES8-150 is a managed 8 port Gigabit PoE switch with SFP connectivity. It features 802.3af/at PoE as well as passive 24v PoE on all Ethernet ports with a maximum budget of 130W. L2/L3 functionality makes them suitable for a wide range of high-performance applications. It can be managed via the UISP network management platform.
Specifications
Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Desktop
Operating System: EdgeMAX
Operating Temperature
PoE Input: None
PoE Output: 802.3af/at or 24V Passive PoE on Ports 1~8
Power Input: 1x IEC Power Cord (Included) Or 42V to 56V DC input with Terminal Block
Serial Interface: 1x RJ45 Ethernet In/Out Band
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100V-240V
Dimensions: 204 x 43 x 235mm
Weight: 1.8Kg

Ubiquiti's LTU-INS is a 5.8GHz integrated feed featuring proprietary LTU technology, supplied in a 5-Pack with PoE Injectors included. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900Mbps of real TCP/IP throughput.

The unit functions in either a Point-to-Point (PtP) or Point-to-Multipoint (PtMP) environment with the LTU-ROCKET as its base station. The feed design allows for quick and easy conversion of existing LBE-523ACG2 to a 22dBi LTU CPE.

It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 22dBi
Beam-width: 15°
Data Rate: Up to 900Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22 - 26V
USB Ports: None
Dimensions: 201.46 x 64.15 x 56.15mm
Weight: 215g

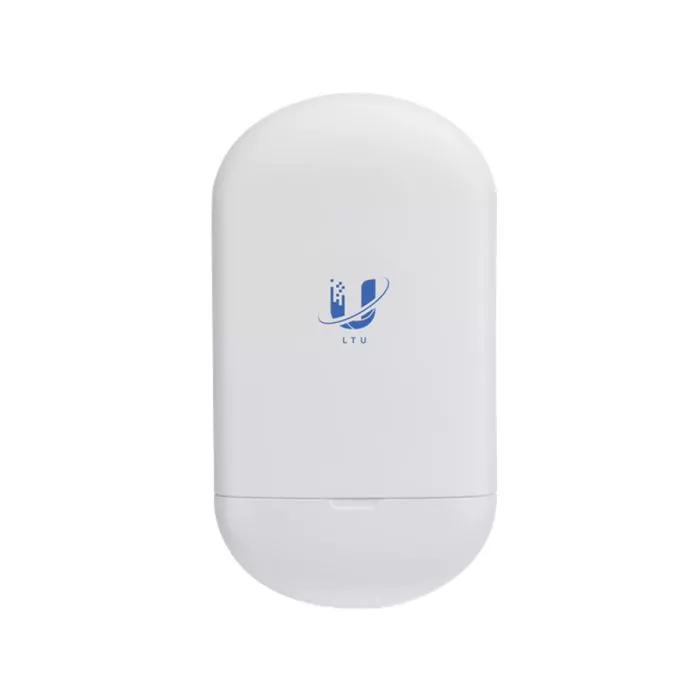

Ubiquiti's LTU-LITE is a 5GHz, 13dBi integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 13dBi
Beam-width: 45°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount & Wall-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 153 x 84 x 39.5mm
Weight: 250g

Ubiquiti's LTU-PRO is a 5GHz, 24dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 24dBi
Beam-width: 14°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 316.5 x 316.5 x 174.3mm
Weight: 1.3kg

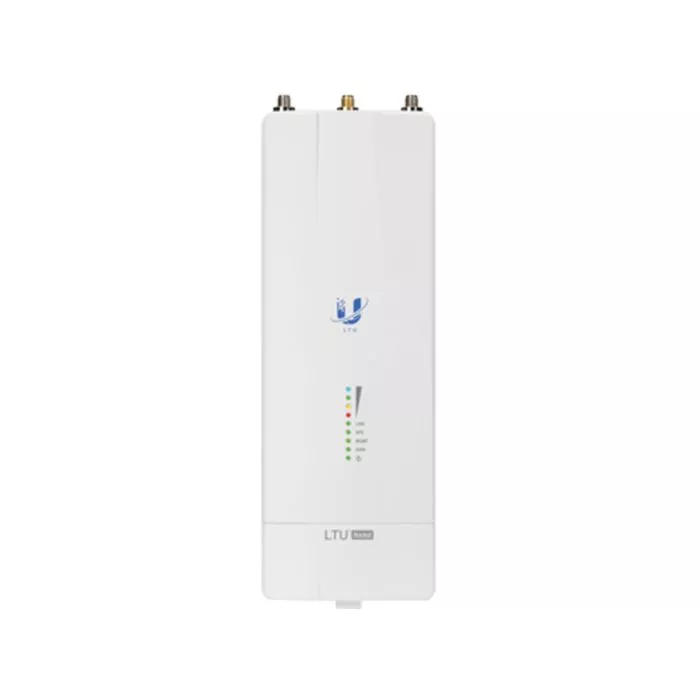

Ubiquiti's LTU-ROCKET is a connectorised radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM. and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz ). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

Specifications

*Note: For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: Up to 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 1A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 244 x 82 x 48mm
Weight: 468g

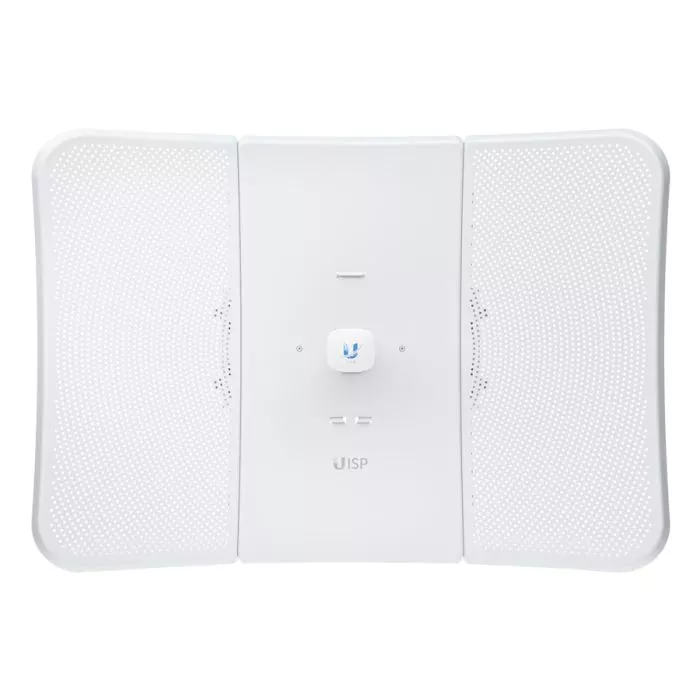

Ubiquiti's LTU-XR is a 5GHz, 29dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 29dBi
Beam-width: 3 dB: 5.5°, 6 dB: 7.5° (Horizontal & Vertical)
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 747 x 525 x 347mm
Weight: 3.2kg

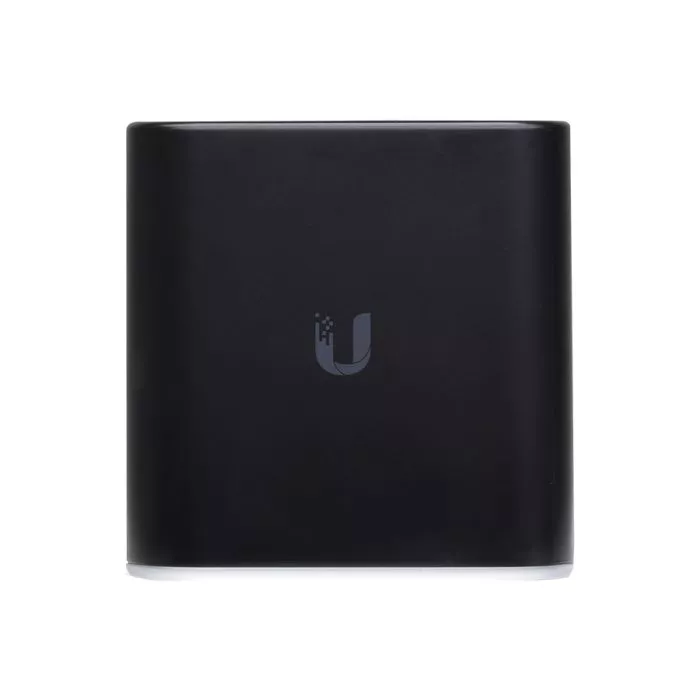

Ubiquiti's ACB-AC is a dual band, WiFi 5 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.
Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Desktop
Operating System: airOS
Operating Temperature: -10°C to 50°C
PoE Input: 24V Passive PoE on Port 1
PoE Output: 24V Passive PoE Pass-Through on Port 4
Power Input: 24V; 0.83A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 22-26V
USB Ports: None

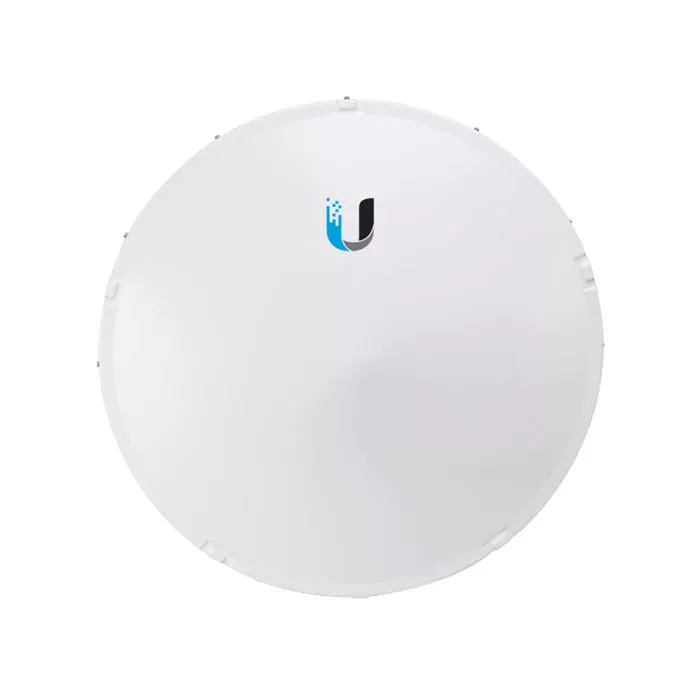

Ubiquiti's AF-11KIT includes an AF-11 radio, an AF-11G35 35dBi dish antenna and an AF-DUPL single low band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Kit includes Antenna and Duplexer. For more information regarding an 11GHz spectrum license, please email [email protected].
Antenna Gain: 35dBi
Beam-width: 2.5°
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data: 10/100/1000 ; Management: 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna: Pole-Mount Radio: Antenna or Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: Antenna: ø 811 x 460mm Radio: 327 x 112 x 86mm
Weight: Antenna: 11.85kg Radio: 2.260kg

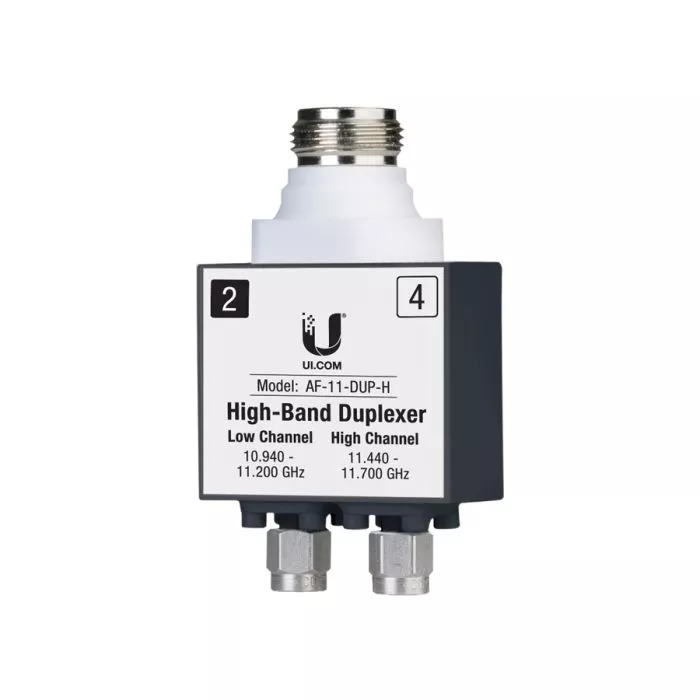

Ubiquiti's AF-11DUPH is a duplexer used to enable the use of high band frequencies on the AF-11. A single duplexer is required for a SISO configuration, whereas two units are required for MIMO.

*Note: AF-11 and dish not Included. For more information regarding an 11GHz spectrum license, please email [email protected]
Low Channel: 10.940GHz – 11.200GHz
High Channel: 11.440GHz – 11.700GHz
