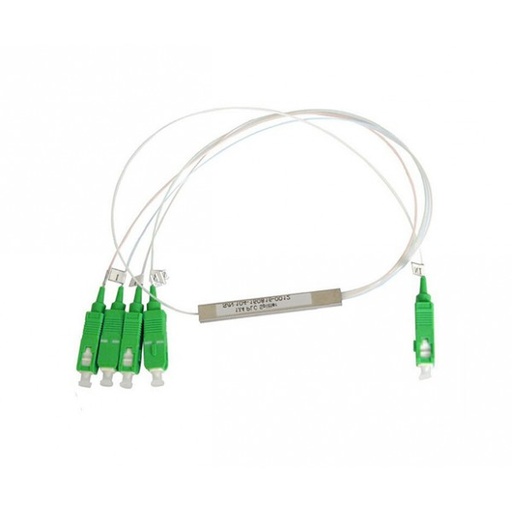

UltraLAN 1x4 SC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration
1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

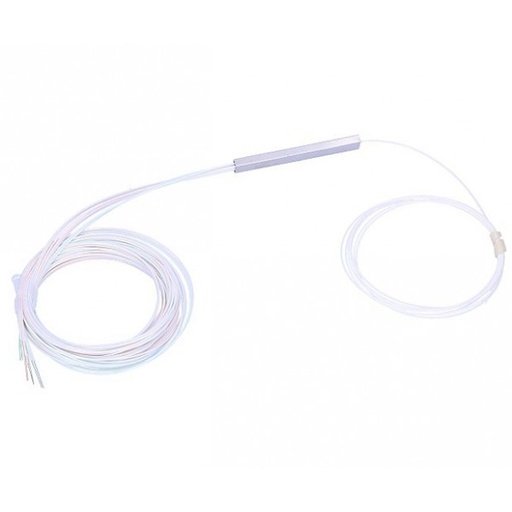

UltraLAN 1x8 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

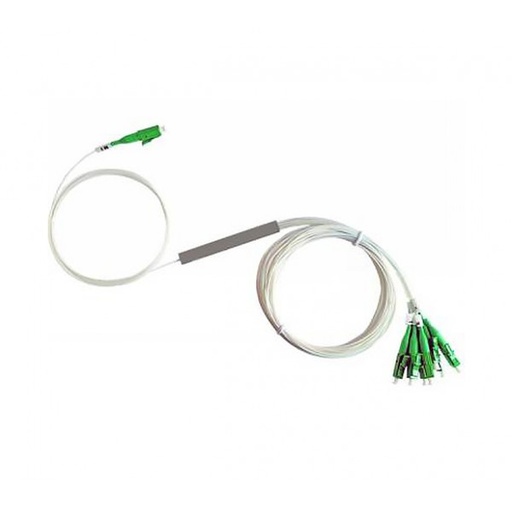

UltraLAN 1x8 LC/APC 900μm PLC Splitter
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

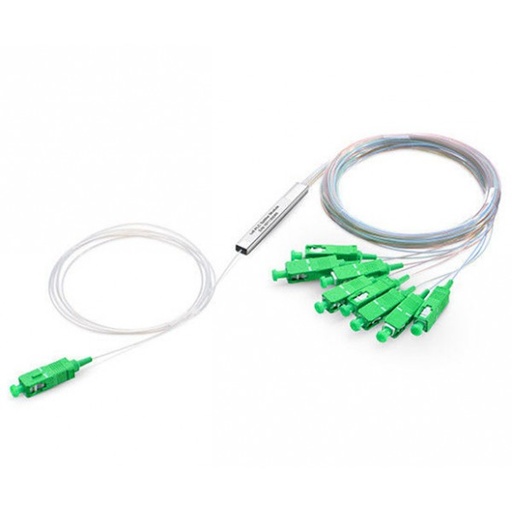

UltraLAN 1x8 SC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

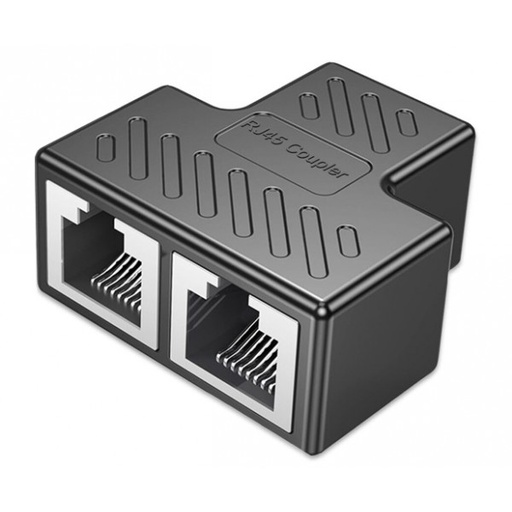

UltraLAN 2-Port RJ45 Ethernet Splitter Adapter


The UltraLAN 2-Port RJ45 Splitter is a passive network adapter that allows two devices to share a single Ethernet cable run. Ideal for situations where adding additional cabling is not feasible, this splitter is designed to transmit two Ethernet signals over one cable—provided that a second unit is used at the other end. It does not act as a network switch or hub and does not allow simultaneous network access unless used in pairs with two separate router/switch ports. This splitter utilizes 4 wires (pins) per connection, which means it only supports 10/100Mbps Fast Ethernet (Gigabit Ethernet would not be achievable as this would require all 8 wires). Perfect for basic setups where convenience and simplicity are key.


Important: These adapters are sold individually, but should be used in pairs to function correctly. One splitter should be placed at the router/switch end and the other at the endpoint (e.g., device side).

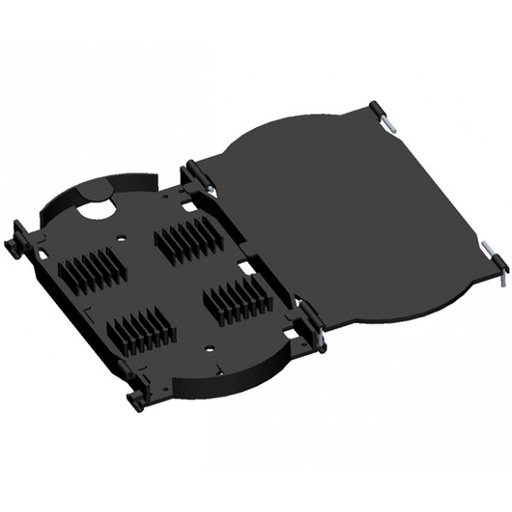

UltraLAN 24 Fiber Splice Tray


The UltraLAN fiber splice tray is designed to provide a place to store fiber cables and splices and prevent them from becoming damaged or being misplaced. These trays are commonly used individually/stand-alone, inside of fiber patch panels, or in large termination boxes.

The fiber splice tray has 4 access ports for fiber cable to either enter/exit the tray, allowing for cables to be easily fed into the tray from various angles. The tray is made from high strength injection mold plastic, is flame retardant, and offers a long anti-aging lifespan.


The UltraLAN fiber splice tray features 12 splice holder slots, but can also support a max of 24 splices when two sleeves are placed inside each slot. The cover and base section is securely joined with a metal pin, and the trays are stackable as well. The inner splice tray offers further cable management, with a fiber bend radius over 30mm.

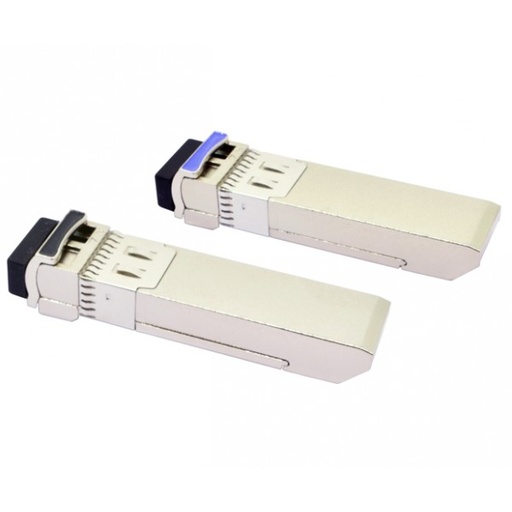

UltraLAN 25G SFP28 BiDi Module Pair - SM 20KM 1270/1330nm


UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 25Gbps and 20km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8402.


Product Features:

Up to 25.78Gb/s data links
Bi-Directional LC connector
Hot pluggable SFP28 footprint
1270nm/1330nm DFB transmitter
Applicable for 20KM SMF connection
Low power consumption, <1.5W
Compliant to SFF-8402 for SFP28 solution
RoHS Compliant


Please note, as these are BiDi SFP Modules they are only sold in a pair.

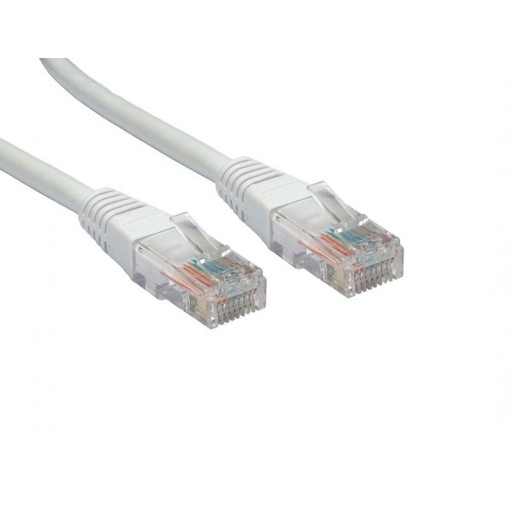

3m UltraLAN CAT5e Flylead


All UltraLAN patch cords are 100% tested for performance and continuity in accordance with industry standards. The booted (molded boot) cable gives the assembly additional strain relief. It also makes it easier to remove the cable from a bundle due to its snag-free tab. UltraLAN patch cables are CAT5e rated which provides performance of up to 100 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) applications.


Low Cost
Our patch cables are very cost effective, allowing network administrators to deploy large scale cable solutions within budget restrictions.

Booted and crimped
The patch cables are pre-crimped with RJ45 connectors and pre-fitted with molded boots to save you time and effort.

High Speed Performance
Rated at CAT5e standards, patch cables are no longer bottlenecks in ultra-fast networks, and allows up to Gigabit speed transmission.

Flexible
Our patch cables have a great bend radius while maintaining high durability, and features a soft sheath for greater flexibility, ideal for confined spaces.

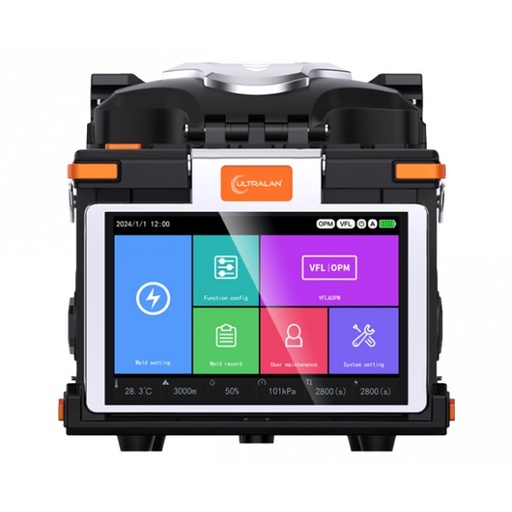

UltraLAN Fiber Optic Fusion Splicer - Model FIB-T-FS2

The UltraLAN Fiber Optic Fusion Splicer Model FIB-T-FS2 is a cutting-edge tool designed to deliver unmatched precision and efficiency in fiber optic cable splicing. Whether you're working on a complex network installation or a routine maintenance task, this advanced splicer offers a comprehensive suite of features to enhance your workflow.

Rapid Heating Technology

One of the standout features of the FIB-T-FS2 is its rapid heating capability. With a fusion time of just 8 seconds and an 18-second heating cycle, you can achieve optimal fusion quickly and efficiently. The splicer supports both automatic and manual heating modes, allowing you to choose from six preset heat shrink tubes or customize the temperature settings to meet your specific needs.

High-Resolution Flip-Up Screen

The splicer is equipped with a 180° flip-up LCD touch screen, which provides high-resolution visuals and an intuitive user interface. This design not only enhances visibility but also simplifies operation, making it easy to navigate the graphical user interface (GUI) and perform tasks smoothly.

Advanced Motor System

Featuring a sophisticated six-motor drive system, the FIB-T-FS2 offers superior precision and reduced positioning errors compared to traditional four-motor systems. The precise micro-step guides ensure minimal dissolution loss and faster, more efficient splicing, ultimately improving your overall work efficiency.

Built-In Testing Tools

The FIB-T-FS2 integrates essential testing tools, including a built-in red light source (VFL) and an optical power meter (OPM). These tools support six wavelengths and feature self-calibration for accurate optical power measurements. With large capacity storage, you can save tens of thousands of data records, ensuring that all your critical information is securely stored.

Extended Battery Life

The splicer is designed with a robust 5200mAh battery that supports extended operational periods. The convenient pop-up battery compartment allows for easy single battery charging. Additionally, the device features automatic shutdown and power-saving modes to extend battery life even further.

Versatile Splicing Capabilities

The FIB-T-FS2 includes a three-in-one universal clamp that accommodates patch cords, bare fibers, and leather cables. This versatile clamp ensures stable and secure fixation, facilitating fully automatic and efficient fiber splicing. The inclusion of LED lighting helps you work in low-light conditions, and the status and heating indicator lights keep you informed of the splicer's operation.

User-Friendly Features

Designed with user convenience in mind, the splicer’s intelligent GUI interface provides a clear and concise display. The system includes intelligent fault detection and prompt notifications to help you address issues quickly. The device also supports external charging, USB upgrades, and fusion splice data export, ensuring you can keep your equipment updated and your data accessible.

Comprehensive Accessory Package

The UltraLAN FIB-T-FS2 comes with a dedicated toolbox and a fiber optic cleaver, providing everything you need for efficient splicing operations.

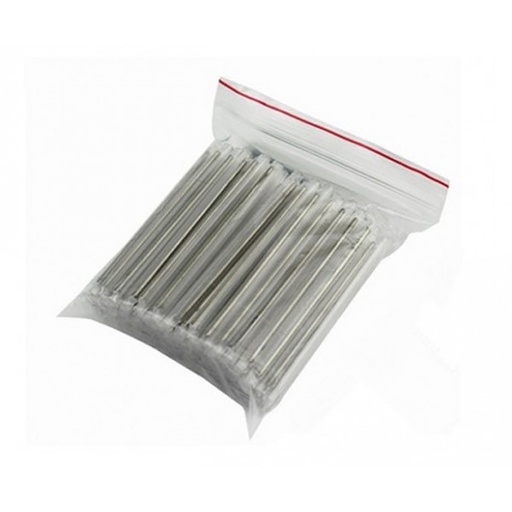

UltraLAN 45mm Fiber Splicing Sleeve

The UltraLAN fiber splice sleeves are specifically designed for the mechanical and environmental protection of fused fiber splices. The splice protectors consist of clear heat shrinkable tubing to allow for visual location of the splice prior to heat shrinking with a pre-installed stainless steel (1.5mm) reinforcing rod.

*Sold in a pack of 100.

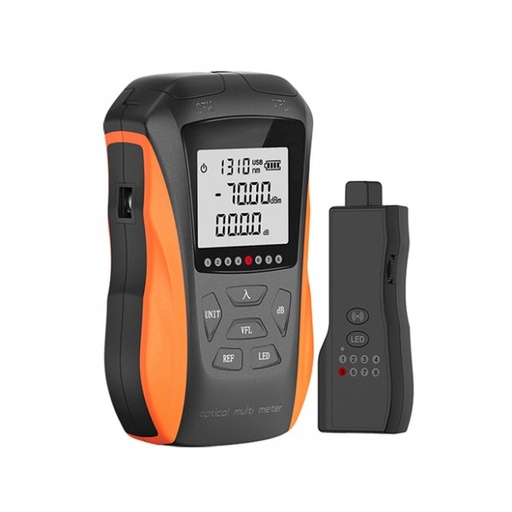

UltraLAN 5-in-1 Fiber Tester & Tracker

The UltraLAN all-in-one Optical Fiber Cable Tester is an essential tool for cable installers, fiber technicians or anyone working in networking environments. The tool features a combination of a fiber power meter, visual fault locator, cable tester, and cable tracker all built into one device. This allows you to test fiber optic cables for breaks, insertion loss and optical power loss, locate network cable and test its physical conditions.

The power meter supports 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. With the compact adaptor, it can be used to test RJ45 Cable's continuity, but also track cable among unknown bundles of wires (line hunt). The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.

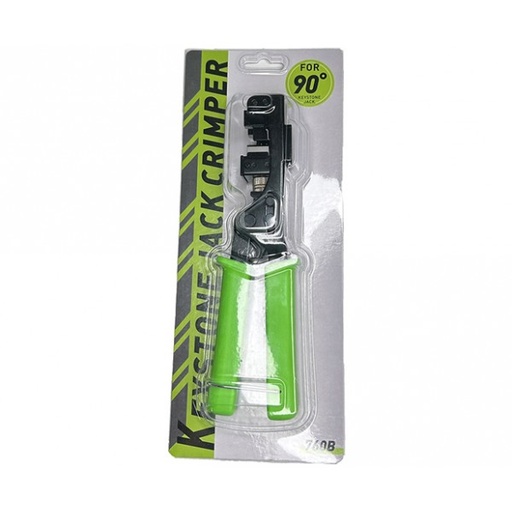

UltraLAN 90-degree Keystone Crimping Tool (CAB-T-C-KS90)


This 90-degree Keystone Jack Crimping Tool is designed for fast, consistent, and effortless termination of angled (90°) keystone jacks. With its ergonomic green handle grips and high-leverage ratcheting mechanism, it ensures optimal performance and minimal strain during repetitive tasks. The heavy-duty steel construction guarantees long-lasting durability, while the precision-aligned dies ensure a secure and uniform punch every time.

Ideal for CAT5e and CAT6 keystone jacks, this tool streamlines network installations by combining accuracy and comfort into one device. Its compact size (21.5cm x 12cm) makes it convenient for toolbox storage.


Key Features:

Designed specifically for 90° keystone jacks
Heavy-duty steel frame with anti-slip green grip handles
High-precision crimping for stable, clean terminations
Reduces effort with a smooth, spring-loaded mechanism
Locking handle for safe and compact storage
Ideal for professional networking and structured cabling jobs
Easy to use - just insert the wires, slide the jack into the socket and squeeze

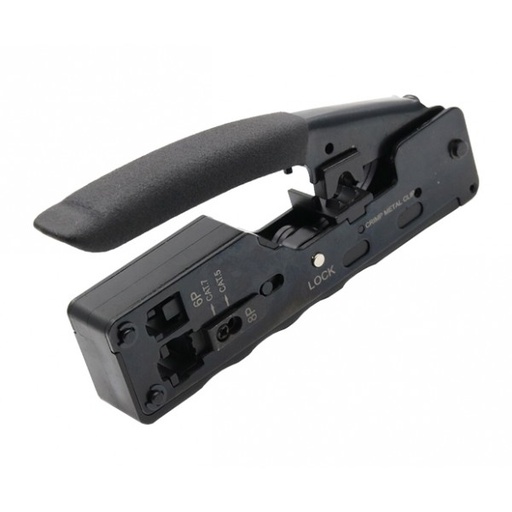

UltraLAN CAT5e/6/6A/7 Crimping Tool

This professional crimp tool is compact and rugged, while fitting comfortably in your hand or in your pocket. The straight action termination delivers even pressure on each of the modular plug’s pins, ensuring precise termination with minimal hand force.

The crimp tool also stays securely closed with a gun-style lock. Its superior fit and function consistently meets performance requirements.

Product Features:

Able to crimp CAT5/6/6A/7 RJ45 connectors
Straight action crimp with minimal hand force
Compact and rugged
Terminates to industry specified crimp heights

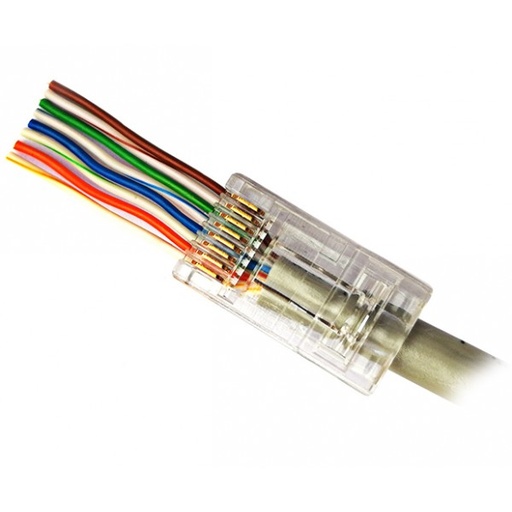

UltraLAN CAT5e EZ RJ45 Connector


The UltraLAN EZ RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

Please note, only sold in packets of 50 connectors.

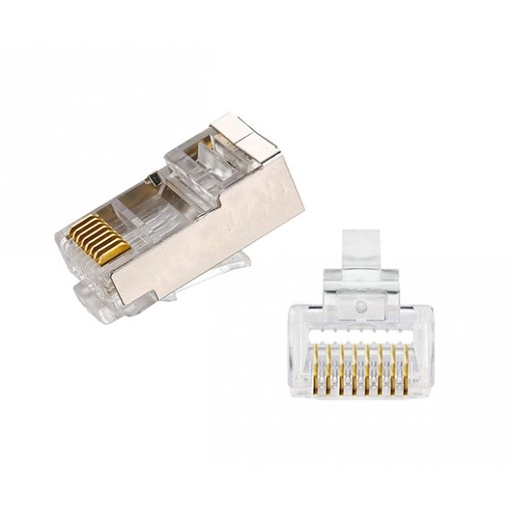

UltraLAN CAT5e EZ Shielded RJ45 Connector (50x Packet)

The UltraLAN EZ RJ45 CAT5e Shielded Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

This RJ45 connector is enclosed in a metal frame to provide shielding and grounding when used with suitable networking cable.

Please note, only sold in packets of 50 connectors.

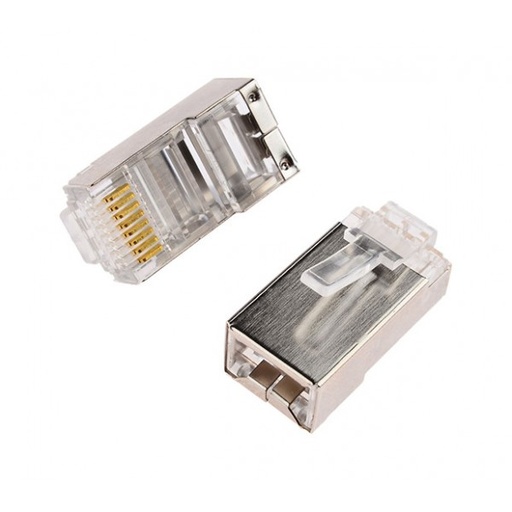

UltraLAN CAT5e Shielded RJ45 Connector

This RJ45 connector is intended for use with 4-pair Ethernet UTP,STP or FTP cable (shielded or foil twisted pair), commonly referred to as shielded Ethernet cable or shielded CAT5e.

The surrounding metal frame of the connector also allows them to withstand a lot of wear and tear.

Please note, only sold in packets of 50 connectors.

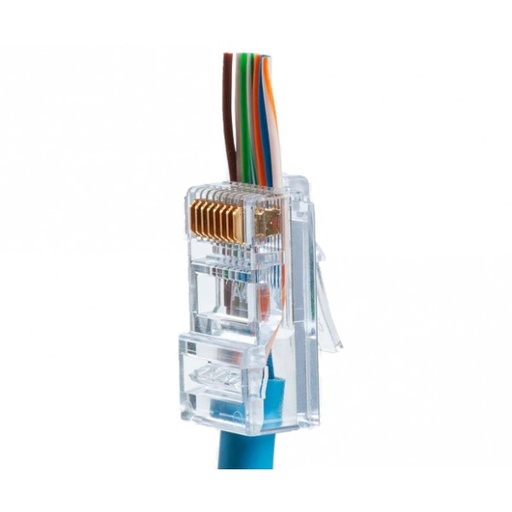

UltraLAN CAT6 EZ RJ45 Connector


The UltraLAN EZ RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

Please note, only sold in packets of 50 connectors.

UltraLAN CAT6 Shielded RJ45 Connector


This RJ45 connector is intended for use with 4-pair Ethernet UTP, STP or FTP cable (shielded or foil twisted pair), commonly referred to as shielded Ethernet cable or shielded CAT6.

The surrounding metal frame of the connector also allows them to withstand a lot of wear and tear.

Please note, only sold in packets of 50 connectors.

UltraLAN CAT6 EZ Shielded RJ45 Connector


The UltraLAN EZ RJ45 CAT6 Shielded Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

This RJ45 connector is enclosed in a metal frame to provide shielding and grounding with suitable cables.

Please note, only sold in packets of 50 connectors.

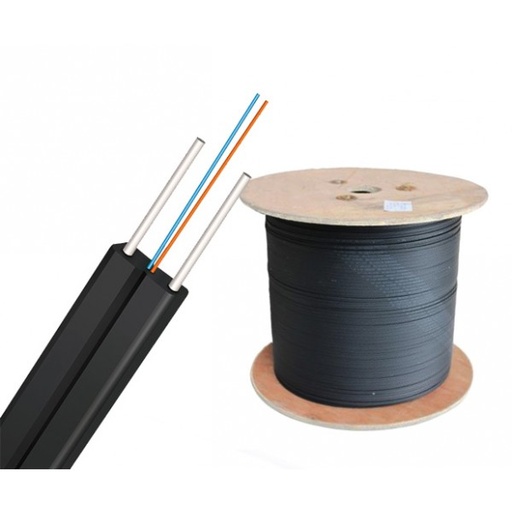

UltraLAN Fiber Bow Type Drop Cable (Black) - 2 Core


This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.
Supplied on a wooden drum in 2000m length.
