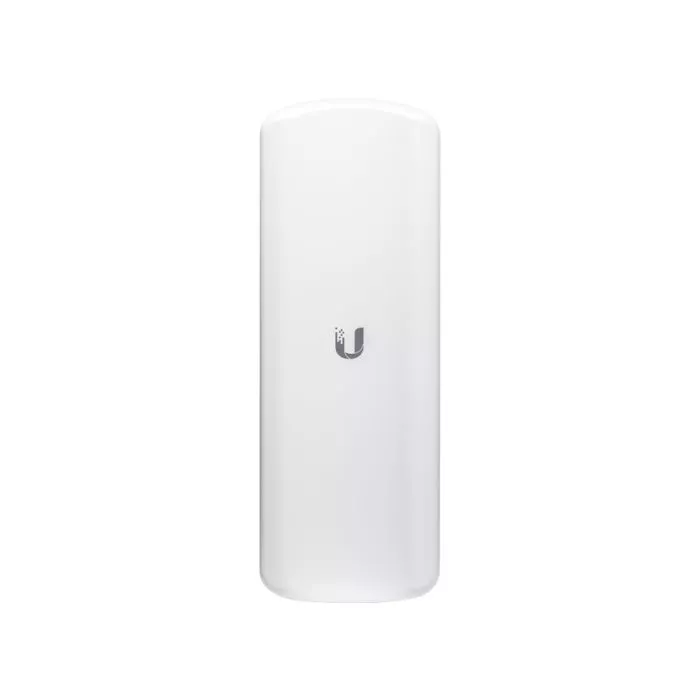

Ubiquiti's LAP-517AC is an airMAX ac 5GHz radio with 17dBi, 90° sector antenna with GPS. It is designed as a lightweight, cost-effective PtMP (point to multipoint) access point solution. The GPS radio is used in co-location environments to assist with mitigating interference. The bracket requires minimal tools for adjustment to simplify installation. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 17dBi
Beam-width: 90°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7.1W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None
Dimensions: 360.98 x 124.57 x 71.28mm
Weight: 752g

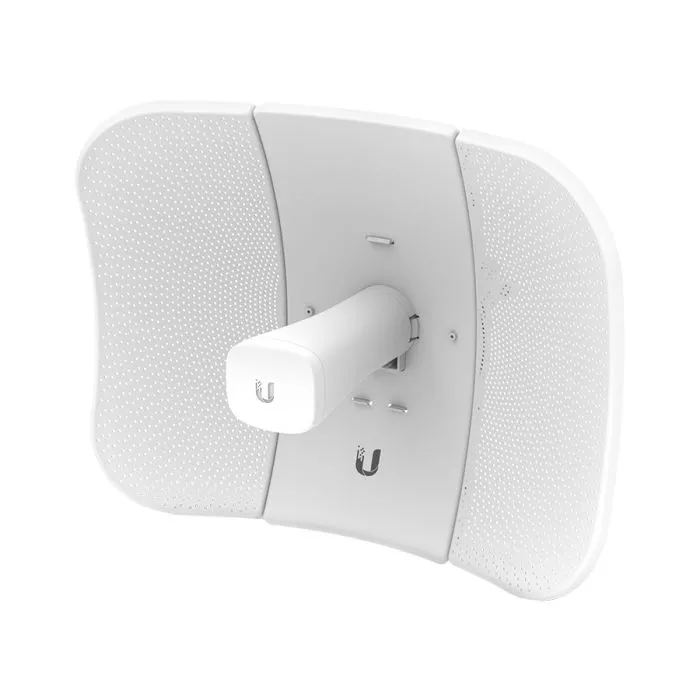

Ubiquiti's LBE-523ACG2 is an airMAX AC 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 23dBi
Beam-width: 15°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 358 x 271.95 x 272.5mm
Weight: 980g

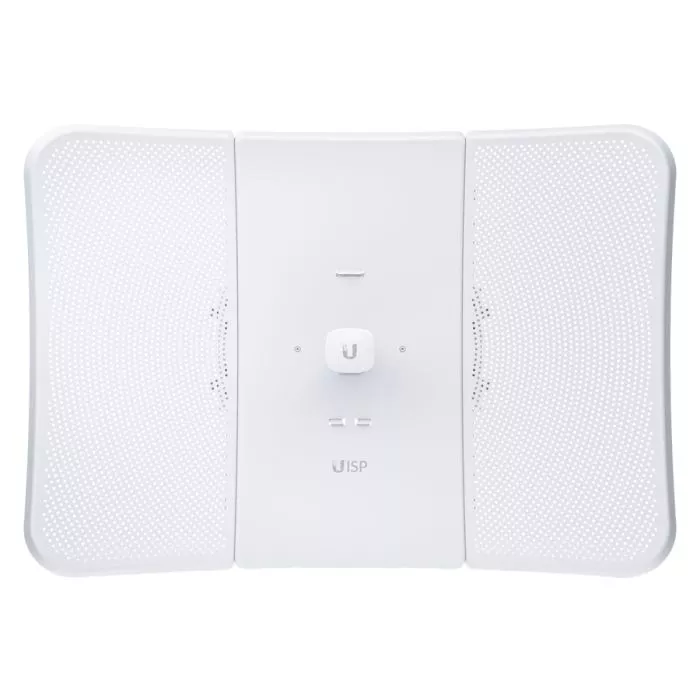

Ubiquiti's LBE-529ACXR is an airMAX AC 5GHz radio with a 29dBi antenna. It is designed as a lightweight, long-range, CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 29dBi
Beam-width: 7.5°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22-26V
USB Ports: None
Dimensions: 747 x 525 x 347 mm
Weight: 3.2 kg

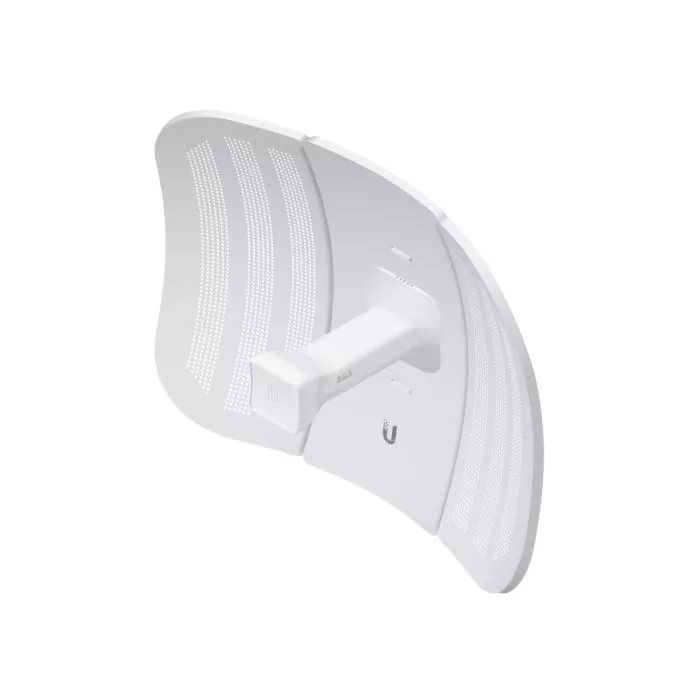

Ubiquiti's LBE-523 is an airMAX M series 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 23dBi
Beam-width: 15°
Data Rate: 150Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 4W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.2A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 362 x 267 x 184mm
Weight: 750g

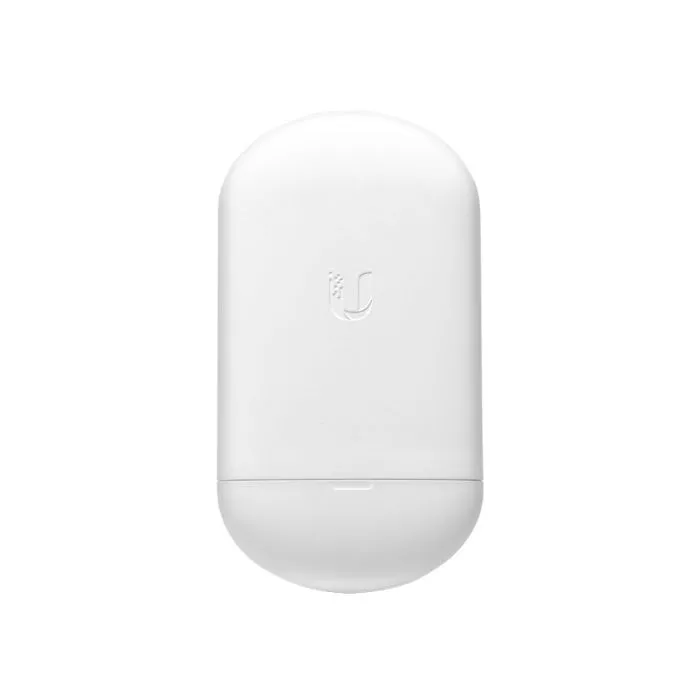

Ubiquiti's LOCO-5ACL is an airMAX AC 5GHz radio with a 13dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) solution or PtMP (point to multipoint) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: The LOCO-5ACL does not ship with a PoE adapter; we recommend powering the unit with our UPOE-24G12W

Specifications

Antenna Gain: 13dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 179 x 77.5 x 59.1mm
Weight: 180g

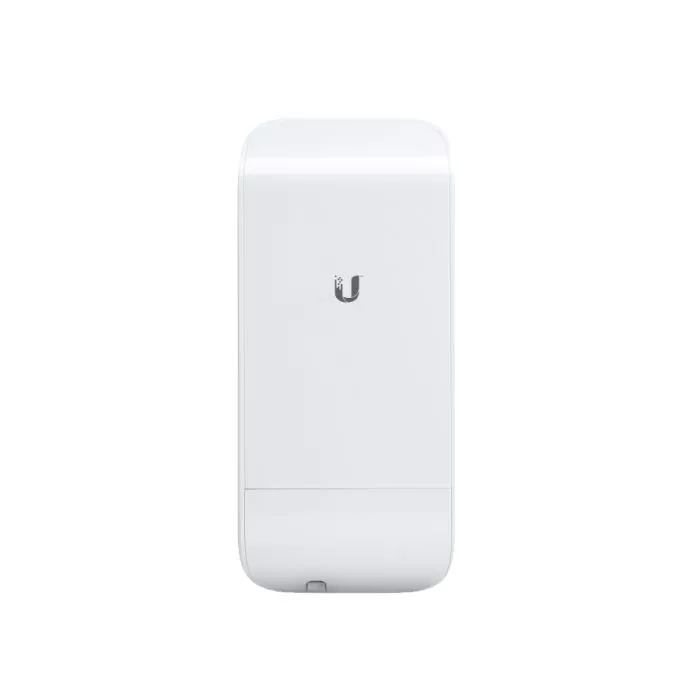

Ubiquiti's LOCO-M2 is an airMAX M series 2GHz radio with a 10dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 8.5dBi
Beam-width: 60°
Data Rate: 150Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 5.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -30°C to 75°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 161 x 31 x 80mm
Weight: 180g

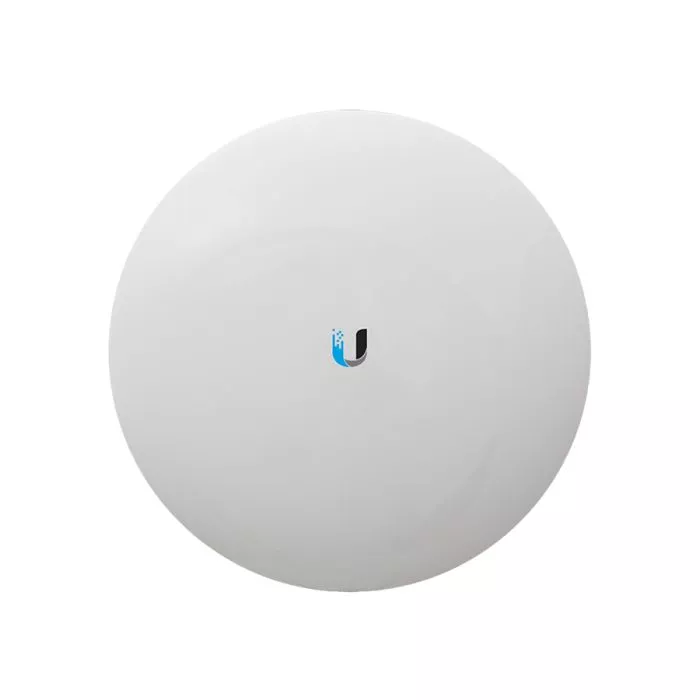

Ubiquiti's NBE-213AC is an airMAX AC 2GHz radio with a 13dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 13dBi
Beam-width: 60°
Data Rate: 450Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7.5W
Mounting: Pole-Mount
Operating System: airMAX
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 189 x 189 x 125mm
Weight: 530g

Ubiquiti's NBE-519ACG2 is an airMAX AC 5GHz radio with a 19dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. It features 24v passive PoE pass-through. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 19dBi
Beam-width: 30°
Data Rate: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: 24V Passive PoE Pass-Through
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 189 x 189 x 125mm
Weight: 530g

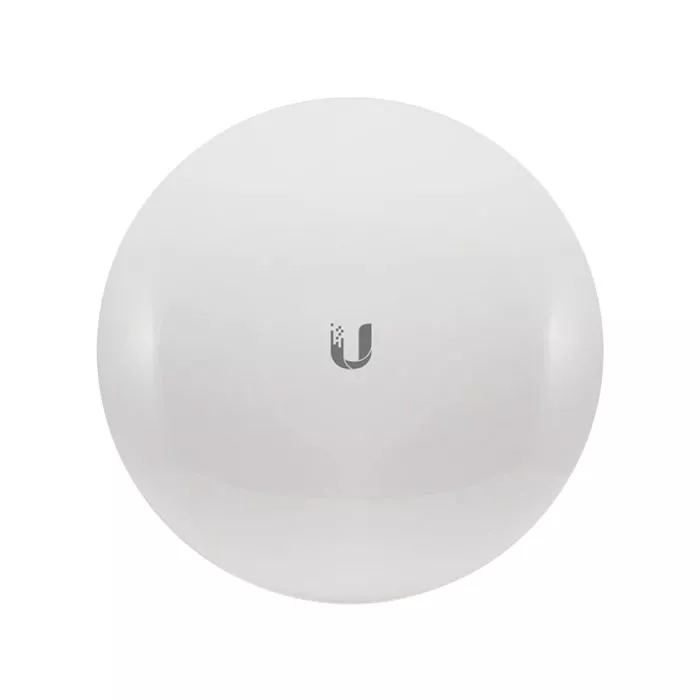

Ubiquiti's NBE-516 is an airMAX M series 5GHz radio with a 16dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 16dBi
Beam-width: 30°
Data Rate: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 140 x 140 x 54mm
Weight: 320g

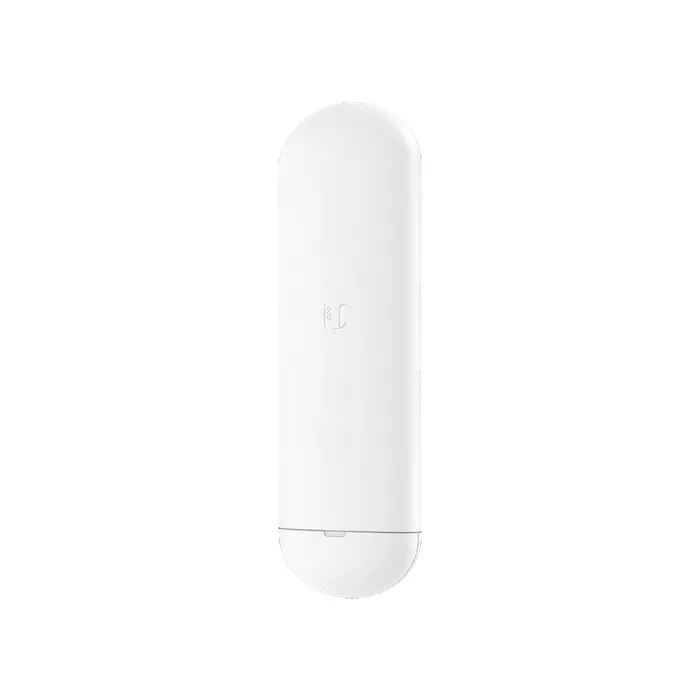

Ubiquiti's NS-5AC is an airMAX AC 5GHz radio with a 16dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. It features 24v or 48v passive PoE pass-through. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 16dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE; 802.3af Active PoE
PoE Output: PoE Passthrough.
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V; 36V-57V
USB Ports: None
Dimensions: 257 x 84 x 30mm
Weight: 233g

Ubiquiti's NSM5 is an airMAX M series 5GHz radio with a 16dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 16dBi
Beam-width: 41°
Data Rate: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -30°C to 75°C
PoE Input: 24V Passive PoE
PoE Output: 24V Passive PoE Pass-through
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 294 x 31 x 80mm
Weight: 400g

Model Ulefone Tab A11 Dimensions 256.9*168.4*7.6mm Weight 500.5gms Display 11 inch FHD 1920x 1200 90Hz OS Android 14 CPU Unisoc T620, Octa-core RAM 6GB (expandable up to 12GB) ROM 256GB | MicroSD Up to 2TB SIM Slot Nano-Sim + Nano/Micro Sim Front & Rear Camera 8MP Front | 16MP Rear Battery Capacity 8800mAh, 18W Fast Charge Features Face Unlock, Fingerprint Connectivity 802.11 b/g/n/ac/a (2.4/GHz) Bluetooth 5.0 BLuetooth Keyboard Wireless Earphones Protective Cover Protective Screen.

Product Overview

The Ulefone Tab A11 is an 11-inch Android 14 tablet featuring a 1920 x 1200 FHD IPS display with a smooth 90Hz refresh rate, powered by an Octa-core Unisoc T620 processor. It comes with 6GB RAM (expandable to 12GB), 256GB storage (expandable via microSD up to 2TB), and an 8800mAh battery with 18W fast charging. The tablet includes an 8MP front camera, 16MP rear camera, face unlock, fingerprint sensor, and supports Wi-Fi 6 and Bluetooth 5.0 connectivity, all housed in a slim 7.6mm aluminum body weighing 500.5g.

Specifications

•Product Code: A11-6-256
•Description: ulefone Tab A11 Android Smartphone
•Model Number: Tab A11
•Model Name: Tab A11
•Connectivity: 4G
•Operating System: Android
•Operating System Version: Android 14
•Storage: 256 GB
•Display Resolution Type: Full HD
•Supported Network: 4G LTE
•Display Size: 27.94 cm (11 inch)
•Sales Package: 1 tab
•Display Resolution: 1920 x 1200
•Primary Camera: 16 MP
•Internal Storage: 6 GB
•Processor Speed: 850 MHz
•Battery Capacity: 8800 mAh
Operating System ‎Android 14
Item Weight ‎1.1 pounds
Product Dimensions ‎10.11 x 0.3 x 6.63 inches
Item Dimensions LxWxH ‎10.11 x 0.3 x 6.63 inches

Ulefone 11 inch Android Tab - 11 inch FHD+ Screen, Android 14, 8GB RAM, 256GB ROM, 16MP Rear Camera, 8,800mAh Battery, Octa-core Processor, Widevine L1 Support, Supports 18W charging, Wifi 6.


Product Overview

The Ulefone Tab A11 is an 11-inch Android 14 tablet featuring a 1920 x 1200 FHD IPS display with a smooth 90Hz refresh rate, powered by an Octa-core Unisoc T620 processor. It offers 8GB RAM (expandable up to 16GB), 256GB internal storage with microSD support up to 2TB, and an 8800mAh battery with 18W fast charging. Equipped with 16MP rear and 8MP front cameras, face unlock, fingerprint sensor, and comprehensive connectivity including Wi-Fi and Bluetooth 5.0, it balances performance and portability in a slim 7.6mm, 500.5g design


Features

•Android 14
•400 Nits Brightness
•Quad Stereo Speakers
•4G + Wifi 6
•Widevine L1 Support


Specifications

•Product Code: A11-8-256
•Description: Ulefone Tab A11 Pro Smart Tablet
•CPU: MediaTek MT8781
•CPU frequency: Octa(8) Core, up to 2.2GHz
•GPU: ARM Mali-G57
•GPU frequency: up to 1GHz
•Operating System: Android 14
•RAM: 8GB
•RAM Type : LPDDR4X
•ROM : 256GB
•ROM Type : UFS2.2
•microSD : Up to 1TB
•Battery: 8800mAh Built in lithium-ion battery
•Dual SIM: either card can be set as the primary card
•SIM Type: Nano SIM
•Network: 2G Network
•GSM: B2/3/5/8
•3G Network
•WCDMA: B1/2/4/5/6/8
•4G Network: FDD-LTE
•WiFi: Supports WiFi 6
•Bluetooth: 5.2
•VoLTE: VoLTE HD calling
•Rear Camera : 16MP
•Front Camera : 8MP
•Photo resolution: up to 4640x3480 pixel
•Dimensions: 256.9 mm x168.4 mm x7.6 mm
•Weight: 500 grams
•Display: 11" inch, 1200 x 1920 Resolution, FHD+ Display

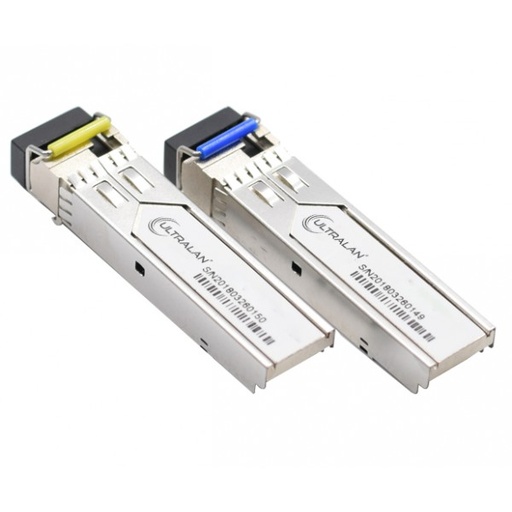

UltraLAN 10G SFP BiDi Module Pair - SM 10KM 1270/1330nm


UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 10Gbps and 10km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.


Product Features:

Supports 10G rates
Bi-Directional LC connector
Hot pluggable SFP footprint
Applicable for 10KM SMF connection
Low power consumption, < 0.8W
Digital Diagnostic Monitor Interface
Compliant with SFP MSA and SFF-8472
Very low EMI and excellent ESD protection


Please note, as these are BiDi SFP Modules they are only sold in a pair.

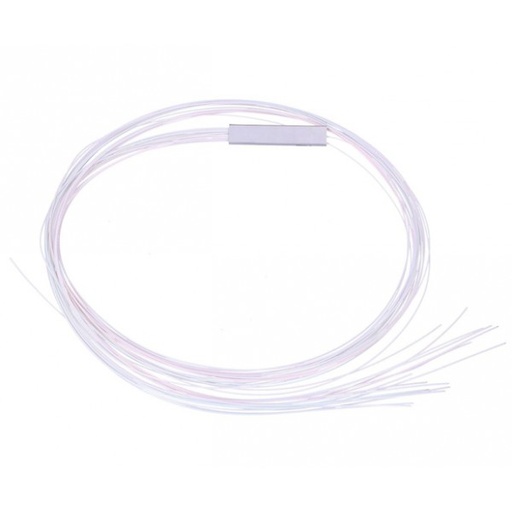

UltraLAN 1x16 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

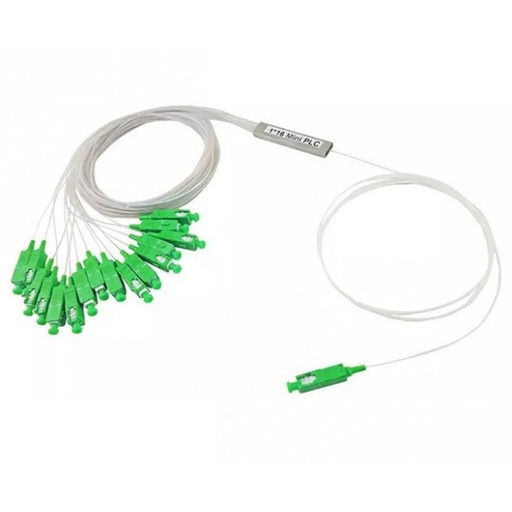

UltraLAN 1x16 SC/APC 900μm PLC Splitter


Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.


Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

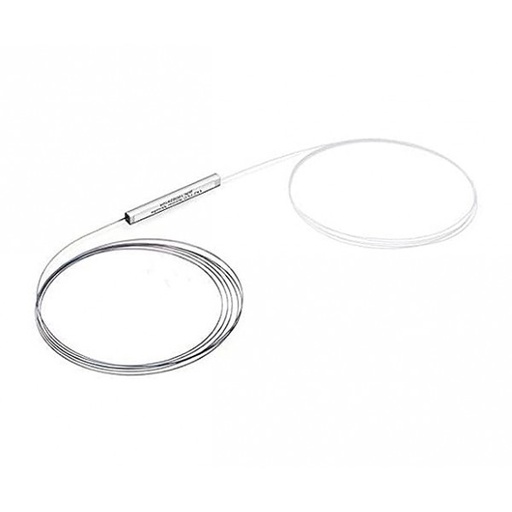

UltraLAN 1x2 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

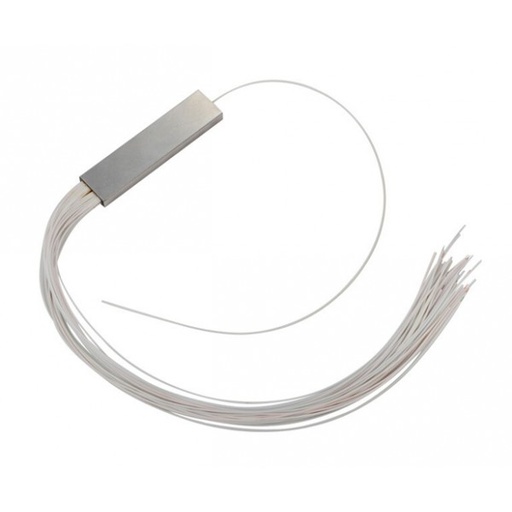

UltraLAN 1x32 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

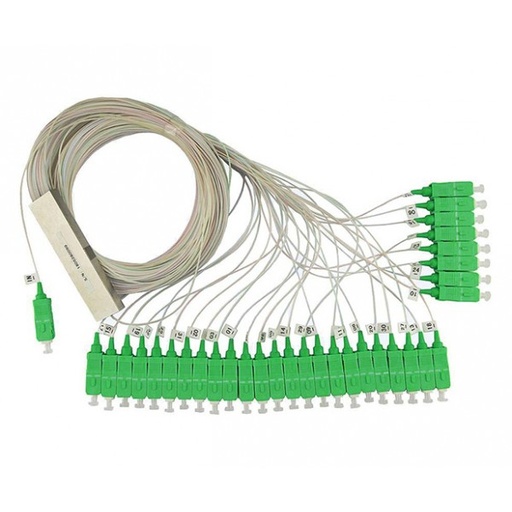

UltraLAN 1x32 SC/APC 900μm PLC Splitter


Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.


Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

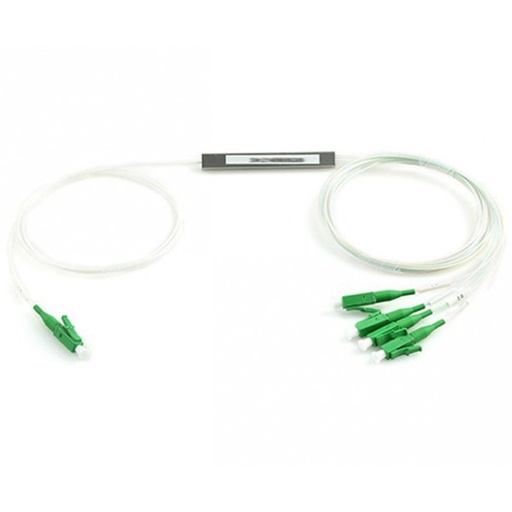

UltraLAN 1x4 LC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:

Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85
