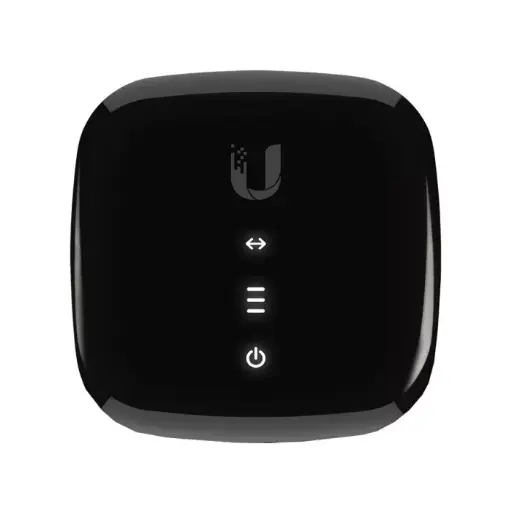

Ubiquiti's UF-LOCO is a robust, high-performance GPON CPE that features extremely low power consumption and a choice of 24V passive PoE or Micro-USB power methods. It supports GPON links of up to 20km. The UF-LOCO integrates with the UF-OLT4 and UF-OLT and provides powerful Layer 2/3 management features.

It can be managed via the UISP network management platform.

For third-party compatibility, Ubiquiti has provided the following guide: OLT Compatibility Guide.(https://help.ui.com/hc/en-us/articles/115009335068-UISP-Fiber-Supported-Third-Party-OLTs)
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 1A Micro USB Power Supply (Included)
Processor: MIPS32; 240 MHz
Serial Interface: None
SFP Ports: 1x 2.5/1.25Gbps SC APC GPON
Supported Voltage Range: 24V Passive PoE or 4.7 – 5.3VDC
System Memory: 128 MB DDR3
USB Ports: None

Dimensions: 76.5 x 76.5 x 26.4mm
Weight: 77g

Ubiquiti's UF-WIFI6 is a dual band, WiFi 6 (802.11ax) GPON CPE. It features an LED display, 4x Gigabit Ethernet Ports, 1xSC APC GPON WAN port and provides powerful Layer 2/3 management features. The unit is capable of distances of up to 20km with speeds of up to 2.4Gbps downstream and 1.2Gbps upstream. The UF-WIFI6 can be powered by either the included 5V 3A USB-C or 24V Passive PoE.

It can be managed via the UISP network management platform.

Antenna Gain: 2.4GHz: 1dBi ; 5.8GHz: 3dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps ; 5.8GHz: 1.2Gbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -15°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 3A USB-C (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10-30V Passive PoE ; 5VDC USB-C
USB Ports: None
Other: 1x 2.5/1.25Gbps SC APC GPON

Dimensions: 140.8 x 141.5 x 31.65 mm
Weight: 415g

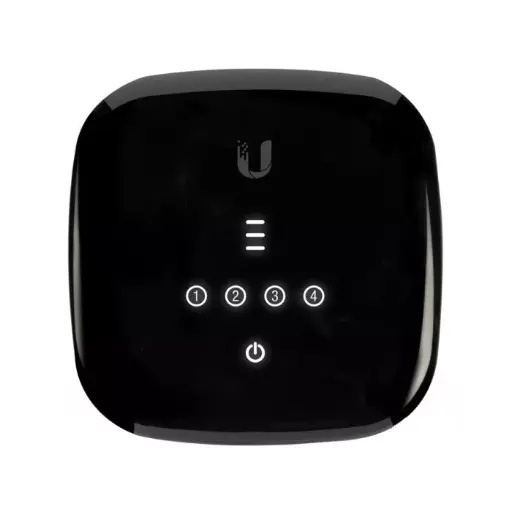

Ubiquiti's UF-WIFI is a robust, high-performance GPON CPE. It features an LED display, 4x Gigabit Ethernet ports, 1x SC APC port and 2.4GHz WiFi connectivity. It provides powerful Layer 2/3 management features. The unit can be powered using 24V Passive PoE on Port 1, or by a 24V power supply.

It can be managed via the UISP network management platform.
Antenna Gain: 1dBi
Beam-width: 360°
Data Rate: 300Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-28V
USB Ports: None
Other: 1x 2.5/1.25Gbps SC APC GPON

Dimensions: 126.34 x 126.09 x 31.65mm
Weight: 190g

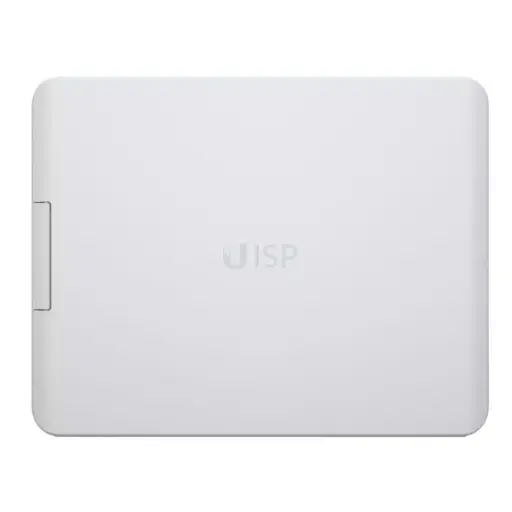

Ubiquiti's UISP-BOX is a Pole or wall-mountable, compact weatherproof enclosure for the UISP Router and UISP Switch.

*Note: Power supply and transport cable not included. Connects to an existing UISP R/S power supply.

Compatibility: UISP-R & UISP-S
Enclosure material: UV-stabilized polycarbonate
Wind endurance: Up to 200 km/hr
Pole mount diameter: 35 to 60mm

Dimensions: 320 x 250 x 46.28mm
Weight: 1.42 kg

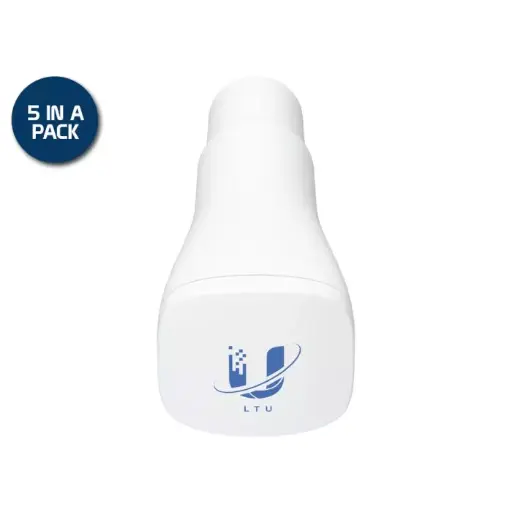

Ubiquiti's LTU-INS is a 5.8GHz integrated feed featuring proprietary LTU technology, supplied in a 5-Pack with PoE Injectors included. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900Mbps of real TCP/IP throughput.

The unit functions in either a Point-to-Point (PtP) or Point-to-Multipoint (PtMP) environment with the LTU-ROCKET as its base station. The feed design allows for quick and easy conversion of existing LBE-523ACG2 to a 22dBi LTU CPE.

It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Antenna Gain: 22dBi
Beam-width: 15°
Data Rate: Up to 900Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22 - 26V
USB Ports: None

Dimensions: 201.46 x 64.15 x 56.15mm
Weight: 215g

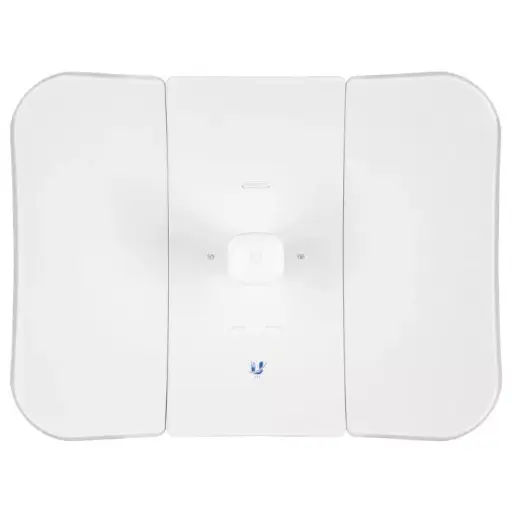

Ubiquiti's LTU-LR is a 5GHz, 26dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: 26dBi
Beam-width: 15°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40 to 60° C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22 - 26V
USB Ports: None

Dimensions: 512.5 x 385.75 x 258.3 mm
Weight: 1.73kg

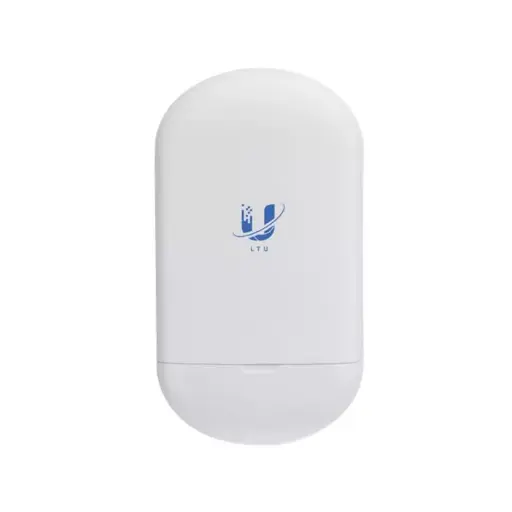

Ubiquiti's LTU-LITE is a 5GHz, 13dBi integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: 13dBi
Beam-width: 45°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount & Wall-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None

Dimensions: 153 x 84 x 39.5mm
Weight: 250g

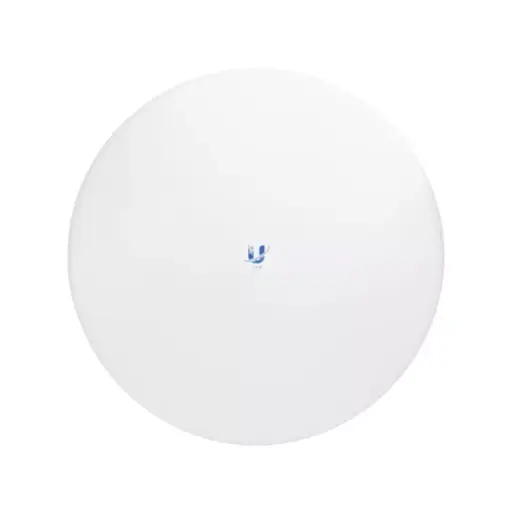

Ubiquiti's LTU-PRO is a 5GHz, 24dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: 24dBi
Beam-width: 14°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None

Dimensions: 316.5 x 316.5 x 174.3mm
Weight: 1.3kg

Ubiquiti's LTU-ROCKET is a connectorised radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM. and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz ). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: Up to 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 1A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 244 x 82 x 48mm
Weight: 468g

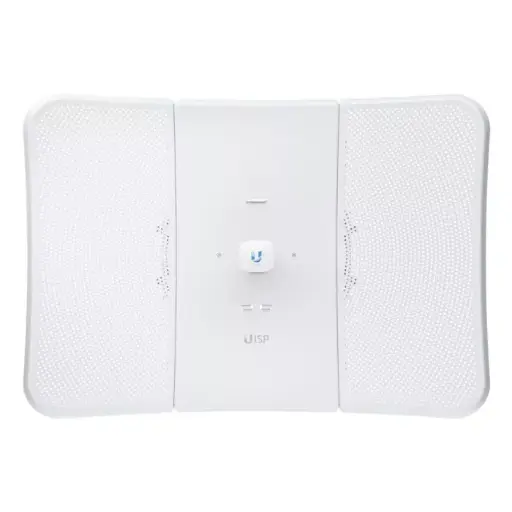

Ubiquiti's LTU-XR is a 5GHz, 29dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: 29dBi
Beam-width: 3 dB: 5.5°, 6 dB: 7.5° (Horizontal & Vertical)
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None

Dimensions: 747 x 525 x 347mm
Weight: 3.2kg

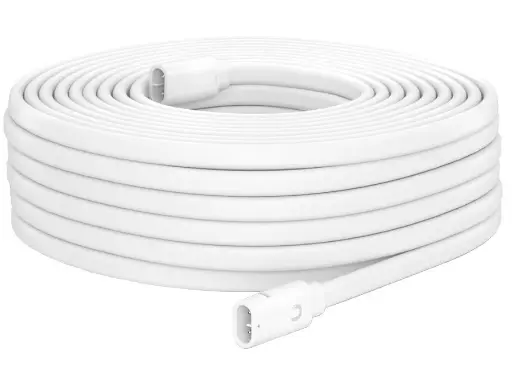

Ubiquiti's UACC-TPC-30M is a 30m UISP Power Transport Cable for use between the UISP-BOX and the included power supply of the UISP-R or UISP-S.

SKU UACC-TPC-30M
Manufacturer Ubiquiti
Manufacturer Product Code UACC-Cable-PT-30M
Specifications Connector: Power TransPort
Flame rating: VW-1
Conductor wire gauge: 12 AWG
Conductor type: Tin stranded copper
Jacket material: Thermoplastic elastomer
Jacket diameter: 11 x 6.5 mm
Operating temperature: -40 to 80°C
Cable Length: 30m

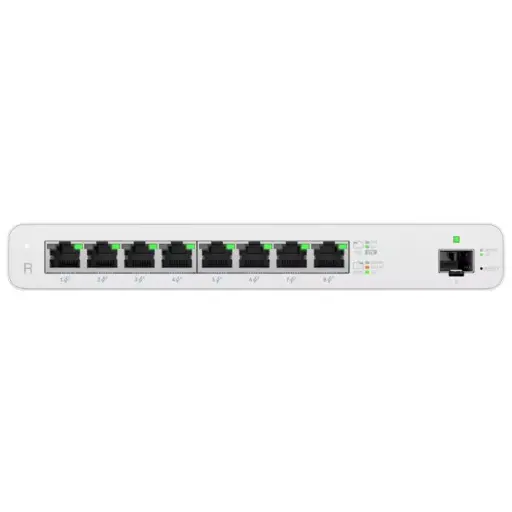

Ubiquiti's UISP-R is a router featuring 8x Gigabit PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. Its dual-core, 880Mhz processor is ideal for MicroPoP applications and can be managed via the UISP network management platform.

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Processor Dual-core 880 MHz, MIPS1004Kc
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 24-28V
System Memory: 512 MB DDR3
USB Ports: None

Dimensions: 210.4 x 95 x 29 mm
Weight: 600g

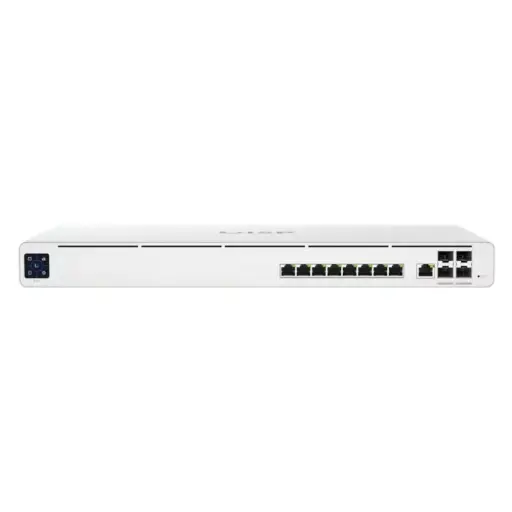

Ubiquiti's UISP-RPRO is a professional router featuring 9x Gigabit Ethernet ports, and 4x 10Gbps SFP+ ports. Its quad-core 1.7GHz processor is ideal for ISP applications and can be managed via the UISP network management platform.
Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cable (Included)
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4 GB DDR4
USB Ports: None

Dimensions: 442.4 x 200 x 43.7 mm
Weight: 3.3kg

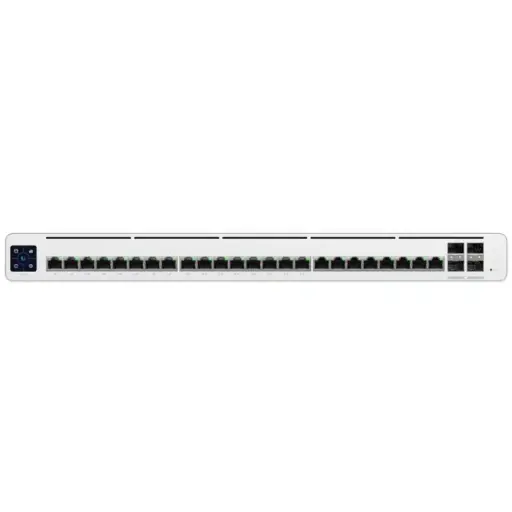

Ubiquiti's UISP-SPRO features Layer 2 switching capabilities, 24x Gigabit Ethernet Ports of which 16 are 27V Passive PoE ports, 4x SFP+, and a PoE budget of 220W. The UISP Switch Pro can be managed via the UISP network management platform.
Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~16
Power Input: 1x IEC Power Cable (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V

Dimensions: 442.4 x 267.5 x 43.7 mm
Weight: 4kg

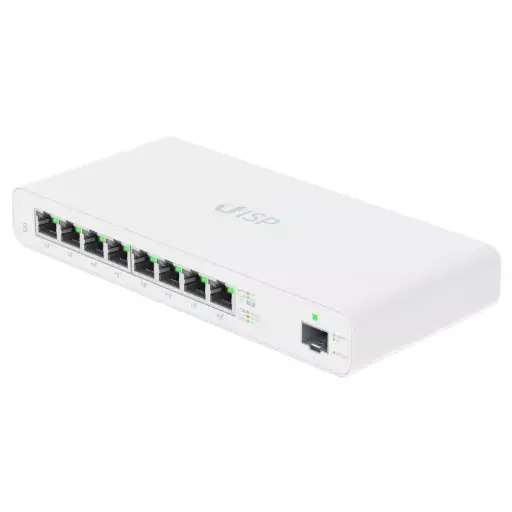

Ubiquiti's UISP-S features Layer 2 switching capabilities, 8x Gigabit 27V Passive PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. The UISP Switch can be managed via the UISP network management platform.
Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop or Outdoors with the UISP-BOX

Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 27V

Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

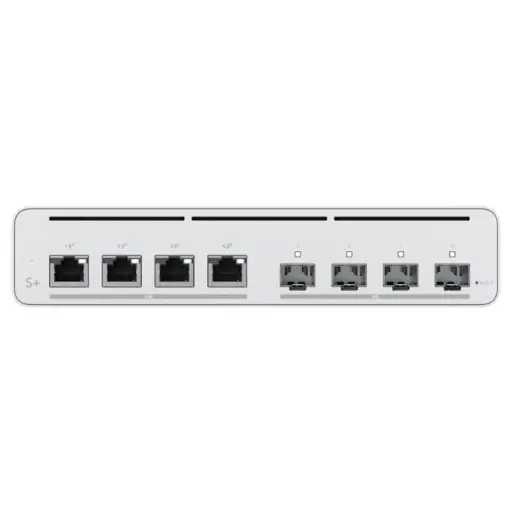

Ubiquiti's UISP-SPLUS features Layer 2 switching capabilities, 4x 2.5Gbps 27V Passive PoE ports, 4x SFP+, and a PoE budget of 160W when powered with the included Power Supply.

The UISP Switch can be managed via the UISP network management platform.
Ethernet Ports: 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop, Wall-Mount or Rack Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~4
Power Input: 27V 7.04A Power Supply (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 27V

Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

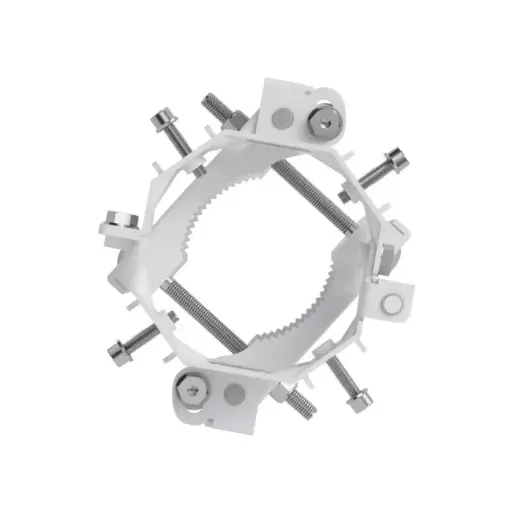

Ubiquiti WAVE-MM is a corrosion-resistant pole mount which supports up to four WAVE-APM providing full 360° coverage.
Pole Diameter: Ø25 - 76 mm (Ø1 - 3")
Wind Survivability: 200 km/h
Wind Loading: 100.9 N at 200 km/h

Dimensions: 175 x 148 x 133.5 mm
Weight: 1.4 kg

Ubiquiti's ACB-AC is a dual band, WiFi 5 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.
Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Desktop
Operating System: airOS
Operating Temperature: -10°C to 50°C
PoE Input: 24V Passive PoE on Port 1
PoE Output: 24V Passive PoE Pass-Through on Port 4
Power Input: 24V; 0.83A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 22-26V
USB Ports: None

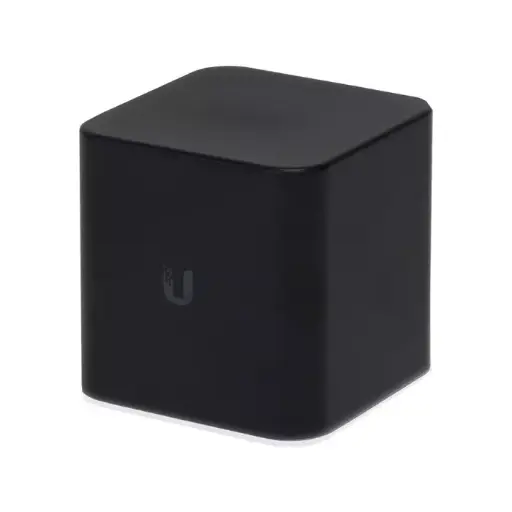

Ubiquiti's ACB-ISP is a 2.4Ghz, WiFi 4 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.

*Note: PoE injector and power supply not included. Recommended PoE injector POE-24G-24W.
Antenna Gain: 4dBi
Beam-width: 360°
Data Rate: 300Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop
Operating System: airOS
Operating Temperature: -10°C to 50°C
PoE Input: 24V Passive PoE
PoE Output: 24V Passive PoE Passthrough
Power Input: 24V Passive PoE or 2A Micro USB Adapter (Not Included)
Serial Interface: WiFi / Ethernet
SIM Slots: None
Supported Voltage Range: 4.95V-5.05V
USB Ports: Micro USB for Power

Dimensions: 87.80 x 89.50 x 89.25mm
Weight: 215g

Ubiquiti's AF-11KIT includes an AF-11 radio, an AF-11G35 35dBi dish antenna and an AF-DUPL single low band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Kit includes Antenna and Duplexer. For more information regarding an 11GHz spectrum license, please email hello@quickstore.co.za.
Antenna Gain: 35dBi
Beam-width: 2.5°
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data: 10/100/1000 ; Management: 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna: Pole-Mount Radio: Antenna or Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: Antenna: ø 811 x 460mm Radio: 327 x 112 x 86mm
Weight: Antenna: 11.85kg Radio: 2.260kg
