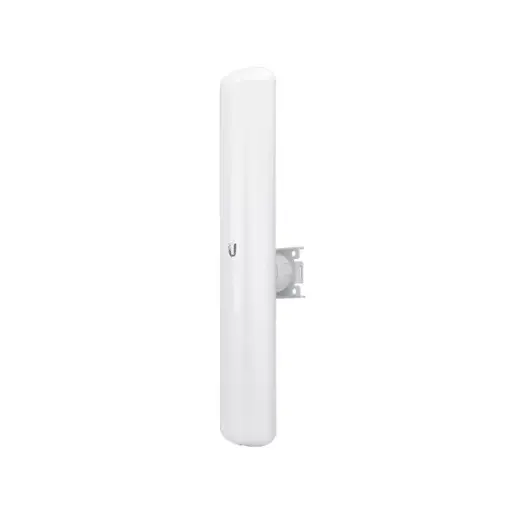

Ubiquiti's LAP-516AC is an airMAX ac 5GHz radio with 16dBi, 120° sector antenna. It is designed as a lightweight, cost-effective PtMP (point to multipoint) access point solution. The bracket requires minimal tools for adjustment to simplify installation.
Antenna Gain: 16dBi
Beam-width: 120°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V, 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None

Dimensions: 452.3 x 78.7 x 54.4mm
Weight: 420g

Ubiquiti's LAP-517AC is an airMAX ac 5GHz radio with 17dBi, 90° sector antenna with GPS. It is designed as a lightweight, cost-effective PtMP (point to multipoint) access point solution. The GPS radio is used in co-location environments to assist with mitigating interference. The bracket requires minimal tools for adjustment to simplify installation. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 17dBi
Beam-width: 90°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7.1W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None

Dimensions: 360.98 x 124.57 x 71.28mm
Weight: 752g

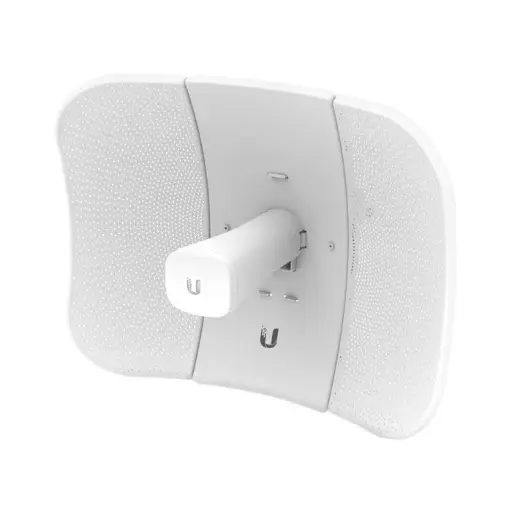

Ubiquiti's LBE-523ACG2 is an airMAX AC 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 23dBi
Beam-width: 15°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 358 x 271.95 x 272.5mm
Weight: 980g

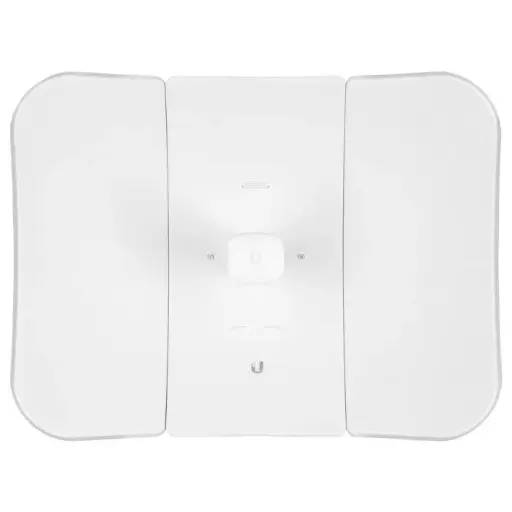

Ubiquiti's LBE-526ACLR is an airMAX AC 5GHz radio with a 26dBi antenna. It is designed as a lightweight, cost-effective, CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 26dBi
Beam-width: 12°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 512.5 x 385.75 x 258.3mm
Weight: 1.735g

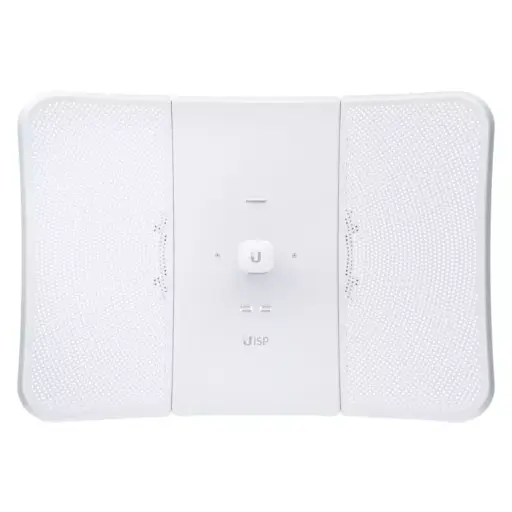

Ubiquiti's LBE-529ACXR is an airMAX AC 5GHz radio with a 29dBi antenna. It is designed as a lightweight, long-range, CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 29dBi
Beam-width: 7.5°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22-26V
USB Ports: None

Dimensions: 747 x 525 x 347 mm
Weight: 3.2 kg

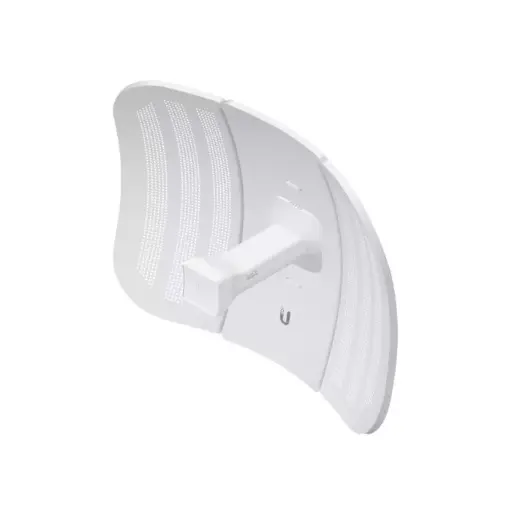

Ubiquiti's LBE-523 is an airMAX M series 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.
Antenna Gain: 23dBi
Beam-width: 15°
Data Rate: 150Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 4W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.2A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 362 x 267 x 184mm
Weight: 750g

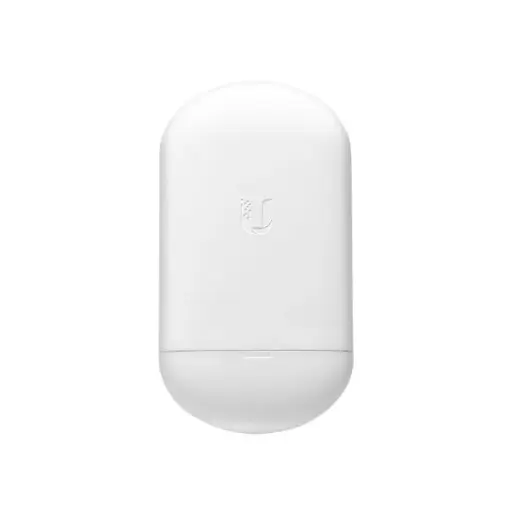

Ubiquiti's LOCO-5ACL is an airMAX AC 5GHz radio with a 13dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) solution or PtMP (point to multipoint) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: The LOCO-5ACL does not ship with a PoE adapter; we recommend powering the unit with our UPOE-24G12W
Antenna Gain: 13dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 179 x 77.5 x 59.1mm
Weight: 180g

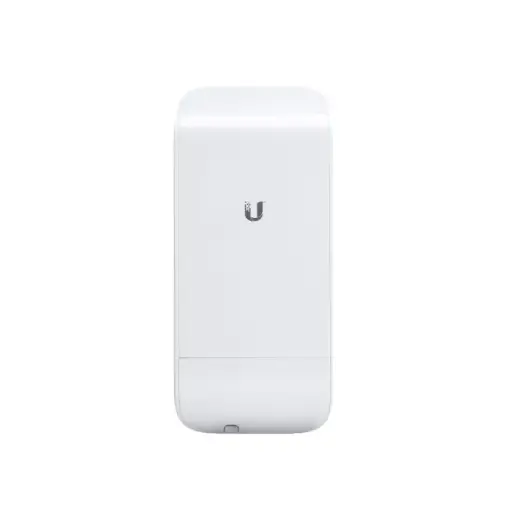

Ubiquiti's LOCO-M2 is an airMAX M series 2GHz radio with a 10dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.
Antenna Gain: 8.5dBi
Beam-width: 60°
Data Rate: 150Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 5.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -30°C to 75°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 161 x 31 x 80mm
Weight: 180g

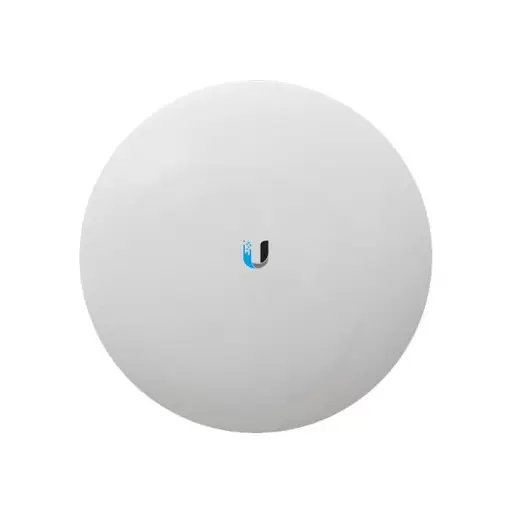

Ubiquiti's NBE-213AC is an airMAX AC 2GHz radio with a 13dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 13dBi
Beam-width: 60°
Data Rate: 450Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7.5W
Mounting: Pole-Mount
Operating System: airMAX
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 189 x 189 x 125mm
Weight: 530g

Ubiquiti's NBE-519ACG2 is an airMAX AC 5GHz radio with a 19dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. It features 24v passive PoE pass-through. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 19dBi
Beam-width: 30°
Data Rate: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: 24V Passive PoE Pass-Through
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 189 x 189 x 125mm
Weight: 530g

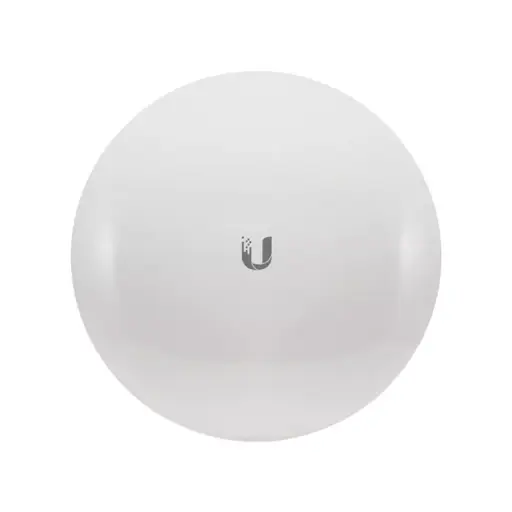

Ubiquiti's NBE-516 is an airMAX M series 5GHz radio with a 16dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.
Antenna Gain: 16dBi
Beam-width: 30°
Data Rate: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 140 x 140 x 54mm
Weight: 320g

Ubiquiti's NS-5AC is an airMAX AC 5GHz radio with a 16dBi antenna. It is designed as a lightweight, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) solution. It features 24v or 48v passive PoE pass-through. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Antenna Gain: 16dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE; 802.3af Active PoE
PoE Output: PoE Passthrough.
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V; 36V-57V
USB Ports: None

Dimensions: 257 x 84 x 30mm
Weight: 233g

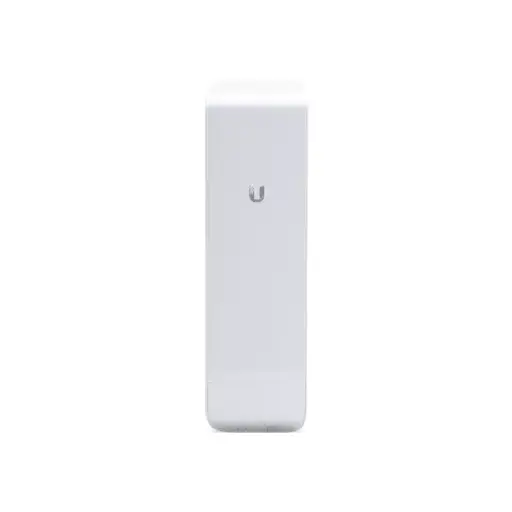

Ubiquiti's NSM5 is an airMAX M series 5GHz radio with a 16dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.
Antenna Gain: 16dBi
Beam-width: 41°
Data Rate: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -30°C to 75°C
PoE Input: 24V Passive PoE
PoE Output: 24V Passive PoE Pass-through
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 294 x 31 x 80mm
Weight: 400g

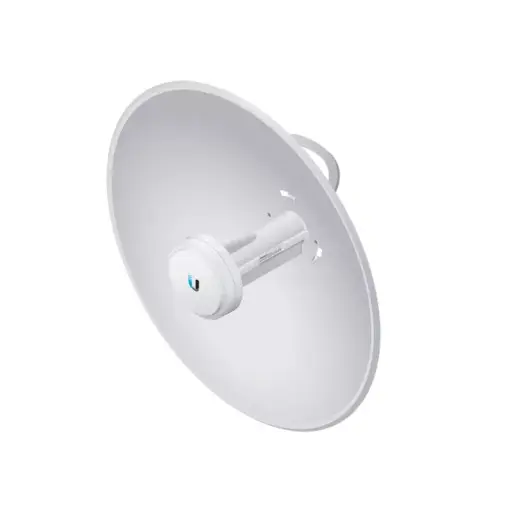

Ubiquiti's PBE-218AC is an airMAX AC 2GHz radio with an 18dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 18dBi
Beam-width: 20°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 420 x 420 x 289mm
Weight: 1.795kg

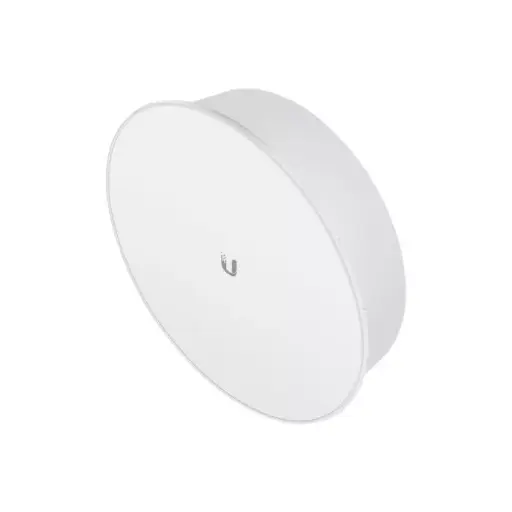

Ubiquiti's PBE-525ACISO is an airMAX AC 5GHz radio with a 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. The isolator/radome cover provides better antenna shielding and protects it in harsh environments. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 25dBi
Beam-width: 12°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-26V
USB Ports: None

Dimensions: 459 x 459 x 261mm
Weight: 3.2kg

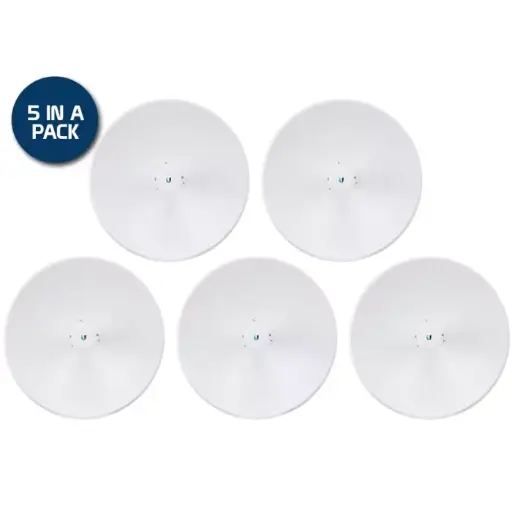

Ubiquiti's PBE-525ACG2-5 is an airMAX AC 5GHz radio with 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 25dBi
Beam-width:12°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-26V
USB Ports: None

Dimensions: 420 x 420 x 230mm
Weight: 2.22kg

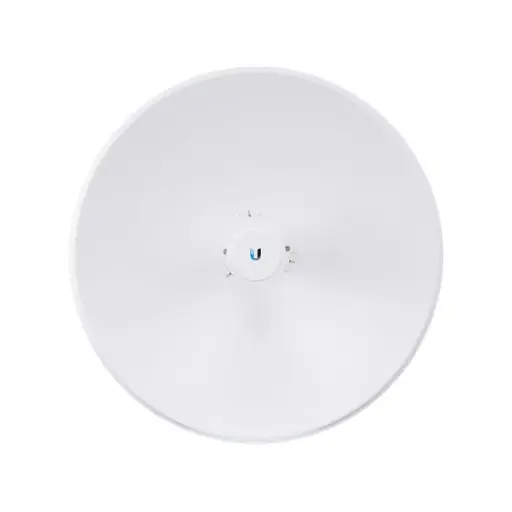

Ubiquiti's PBE-525ACG2 is an airMAX AC 5GHz radio with 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
Antenna Gain: 25dBi
Beam-width: 12°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-26V
USB Ports: None

Dimensions: 420 x 420 x 230mm
Weight: 2.22kg

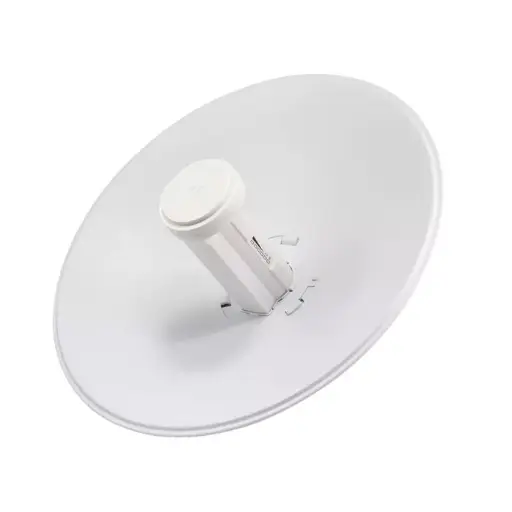

Ubiquiti's PBE-522 is an airMAX M series 5GHz radio with 22dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.
Antenna Gain: 22dBi
Beam-width: 18°
Data Rate: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 325 x 325 x 256mm
Weight: 1.203kg

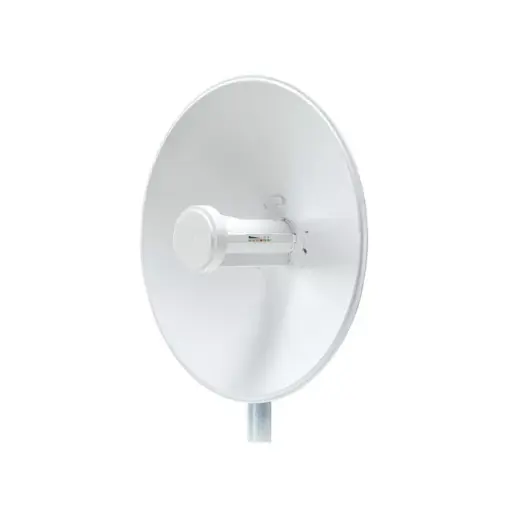

Ubiquiti's PBE-525 is an airMAX M series 5GHz radio with 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.
Antenna Gain: 25dBi
Beam-width:12°
Data Rate: 300Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 420 x 420 x 275mm
Weight: 1.753kg

Ubiquiti's ROCKETAC-LITE airMAX ac 5GHz radio is designed to work with Ubiquiti's wide range of antennas (sold separately). It can be used as PtMP (point to multipoint) access point in low-moderate interference environments and for high-performance, long-range PtP (point to point) links. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: Antenna not included.
Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-26V
USB Ports: None

Dimensions: 162 x 84 x 37mm
Weight: 250g
