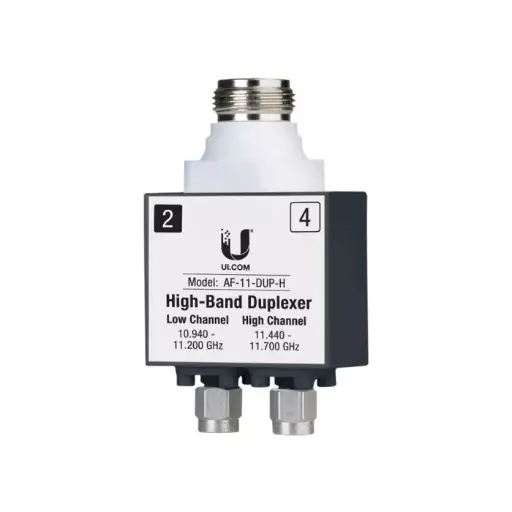

Ubiquiti's AF-11DUPH is a duplexer used to enable the use of high band frequencies on the AF-11. A single duplexer is required for a SISO configuration, whereas two units are required for MIMO.

*Note: AF-11 and dish not Included. For more information regarding an 11GHz spectrum license, please email hello@quickstore.co.za
Low Channel: 10.940GHz – 11.200GHz
High Channel: 11.440GHz – 11.700GHz

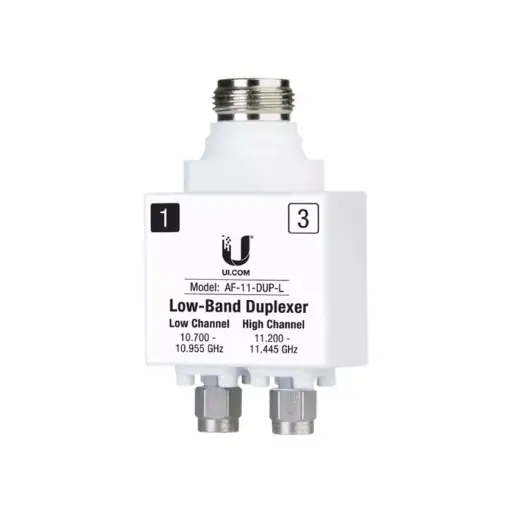

Ubiquiti's AF-11DUPL is a duplexer used to enable the use of low band frequencies on the AF-11. A single duplexer is required for a SISO configuration, whereas two units are required for MIMO.

*Note: AF-11 and dish not Included. For more information regarding an 11GHz spectrum license, please email hello@quickstore.co.za.

Low Channel: 10.700GHz - 10.955GHz
High Channel: 11.200GHz - 11.445GHz

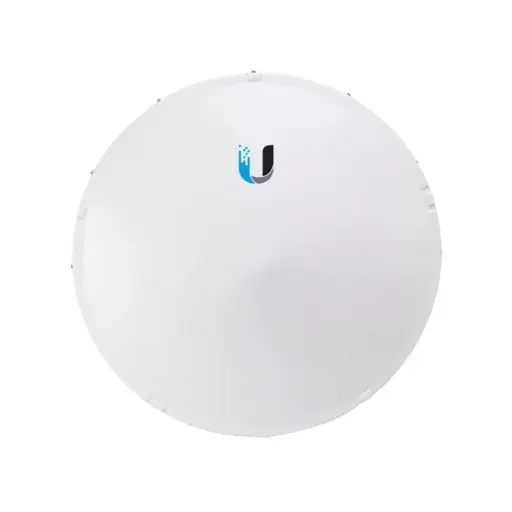

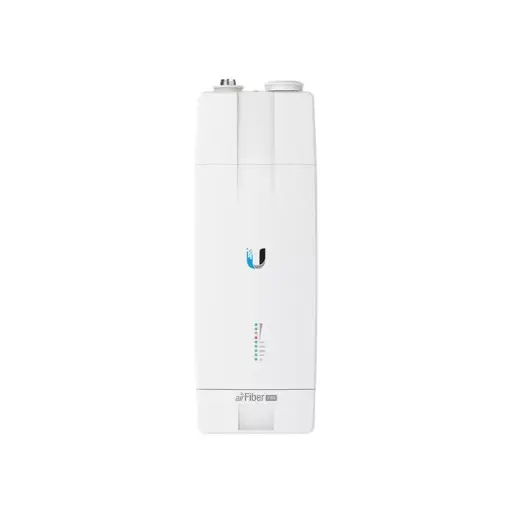

Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Duplexers and Antenna not included. For more information regarding an 11GHz spectrum license, please email hello@quickstore.co.za.

Antenna Gain: Antenna Dependant (4x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data Port - 1x 10/100/1000 ; Management Port – 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: 327 x 112 x 86mm
Weight: 2.260kg

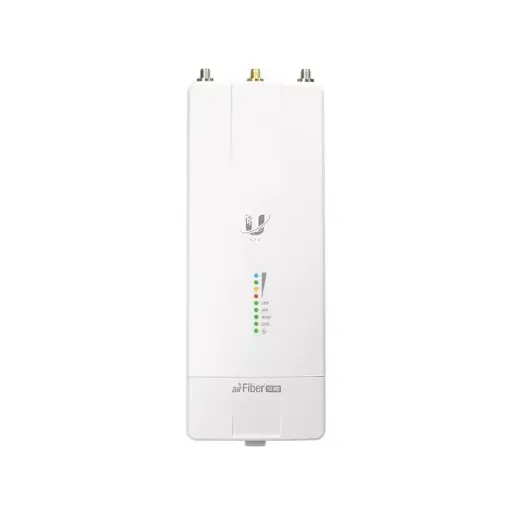

Ubiquiti's AF-5XHD is designed for use in the 5GHz frequency band offering channel bandwidths of up to 100MHz, GPS synchronization and uses airOS LTU, manageable via UISP. The AF-5XHD is designed to work with Ubiquiti® airFiber X slant-polarized antennas for improved noise immunity and signal-to-noise ratio but is also compatible with other dish antennas in the Ubiquiti range. This device is managed via the UISP network management platform.

*Note: Antenna not included. The AF-5XHD only functions in PtP (master or slave) mode and therefore is not suitable for PtMP installations. The AF-5XHD is not backwards compatible with the AF5X.
Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 1.34 Gbps
Ethernet Ports: Data - 1x 10/100/1000 ; Management – 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W-12W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 1A Gigabit PoE Injector (Included)
Serial Interface: Bluetooth V4.0
SIM Slots: None
Supported Voltage Range: 18V-54V
USB Ports: None

Dimensions: 224 x 82 x 48mm
Weight: 0.35kg

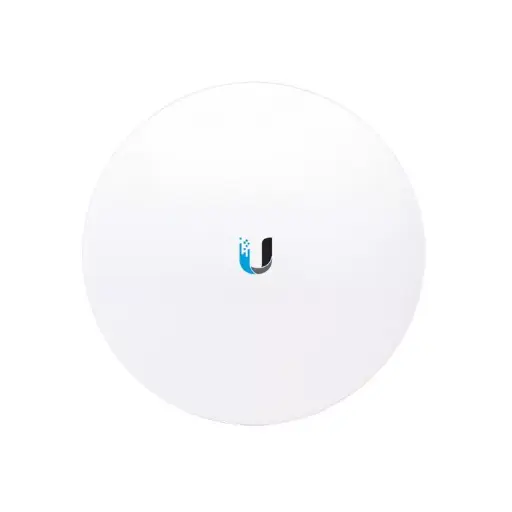

Ubiquiti's AIR-D523X is a 5GHz 23dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquiti radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

*Note: AF-5XHD not included.

Antenna Gain: 23dBi
Beam-width: 10°
Connector: 2x RP SMA Female
Frequency Range: 5.1GHz - 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 190N @ 200km/h

Dimensions: ø 378 x 290mm
Weight: 3.5kg

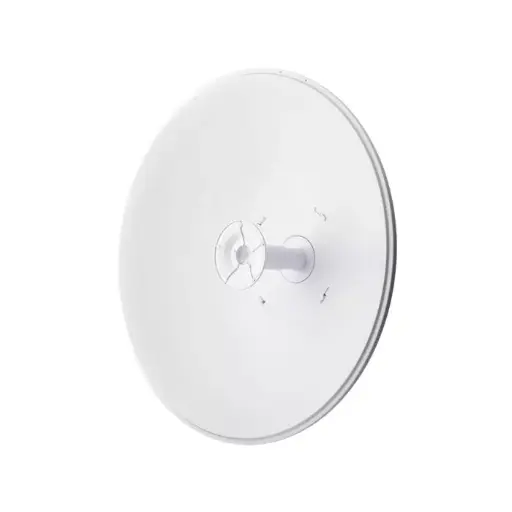

Ubiquiti's AIR-D530X is a 5GHz 30dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquity radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

*Note: AF-5XHD not included.

Antenna Gain: 30dBi
Beam-width: 5.8°
Connector: 2x RP SMA Female
Frequency Range: 4.9GHz – 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 790N @ 200km/h

Dimensions: Ø 650 x 386mm
Weight: 7.4kg

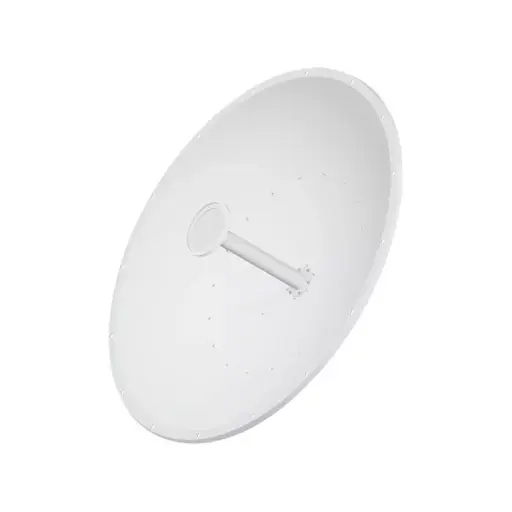

Ubiquiti's AIR-D534X is a 5GHz 34dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquiti radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

*Note: AF-5XHD not included.
Antenna Gain: 34dBi
Beam-width: 3°
Connector: 2x RP SMA Female
Frequency Range: 4.9GHz – 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 1,779N @ 200km/h

Dimensions: Ø 1050 x 42mm
Weight: 13.5kg

Ubiquiti's AIR-S215 is a 2GHz 15dBi, 120° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.

Antenna Gain: 15dBi
Beam-width: 120°
Connector: 2x RP SMA Female
Frequency Range: 2.3GHz – 2.7GHz
Polarization: Vertical & Horizontal
Wind Loading: 169N @ 200km/h

Dimensions: 700 x 145 x 93mm
Weight: 4.0kg

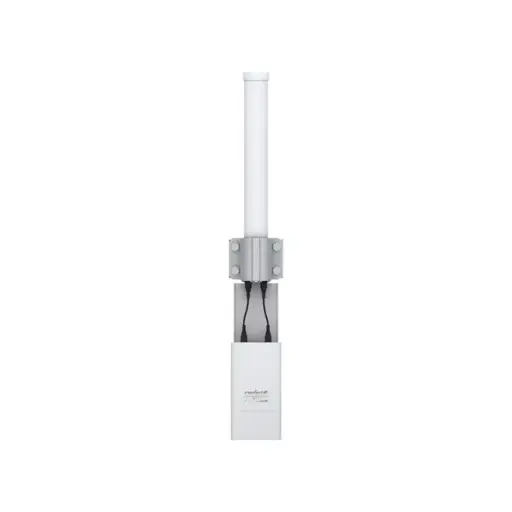

Ubiquiti's AIR-O510 is a 5GHz 10dBi, 360° airMAX Omni antenna designed to seamlessly integrate with Ubiquiti Radio's.

*Note: Radio not included.
Antenna Gain: 10dBi
Beam-width: 360°
Connector: 2x RP SMA Female
Frequency Range: 5.45GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 71.17N @ 200km/h

Dimensions: 582 x 90 x 65mm
Weight: 0.68kg

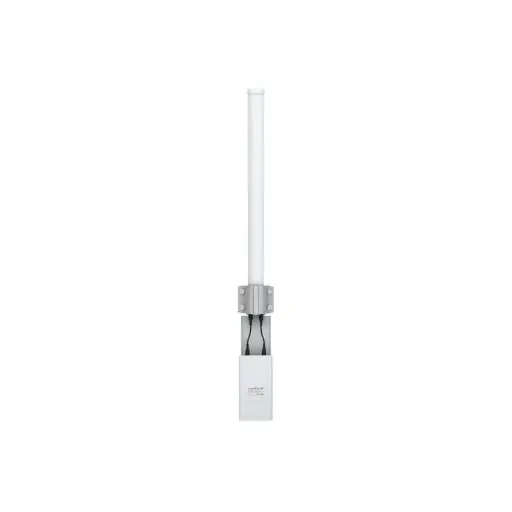

Ubiquiti's AIR-O513 is a 5GHz 13dBi, 360° airMAX Omni antenna designed to seamlessly integrate with Ubiquiti Radio's.

*Note: Radio not included.
Antenna Gain: 13dBi
Beam-width: 360°
Connector: 2x RP SMA Female
Frequency Range: 5.45GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 84.52N @ 200km/h

Dimensions: 799 x 90 x 65mm
Weight: 0.82kg

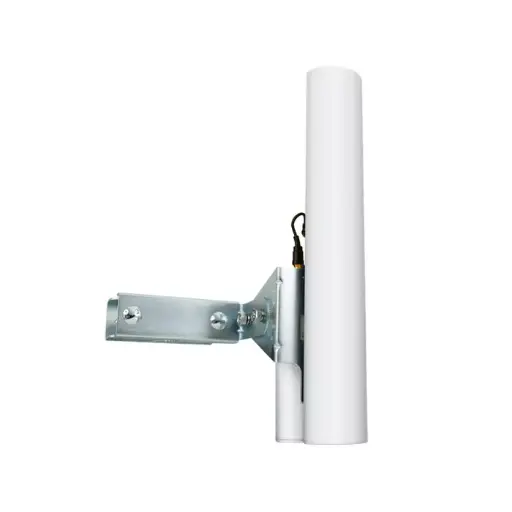

Ubiquiti's AIR-S517 is a 5GHz 17dBi, 90° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.

Antenna Gain: 17dBi
Beam-width: 90°
Connector: 2x RP SMA Female
Frequency Range: 4.90GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 41.7N @ 200km/h

Dimensions: 367 x 63 x 41mm
Weight: 1.1kg

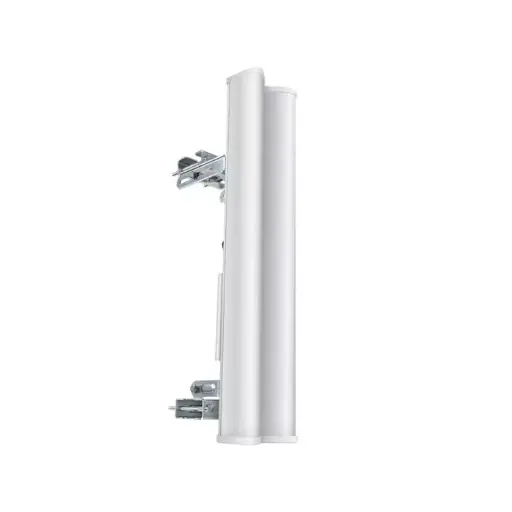

Ubiquiti's AIR-S519 is a 5GHz 19dBi, 120° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.
Antenna Gain: 19dBi
Beam-width: 120°
Connector: 2x RP SMA Female
Frequency Range: 5.15GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 137.9N @ 200km/h

Dimensions: 700 x 135 x 73mm
Weight: 5.9kg

Ubiquiti's AIR-S520 is a 5GHz 20dBi, 90° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.
Antenna Gain: 20dBi
Beam-width: 90°
Connector: 2x RP SMA Female
Frequency Range: 5.15GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 182N @ 200km/h

Dimensions: 700 x 135 x 70mm
Weight: 5.9kg

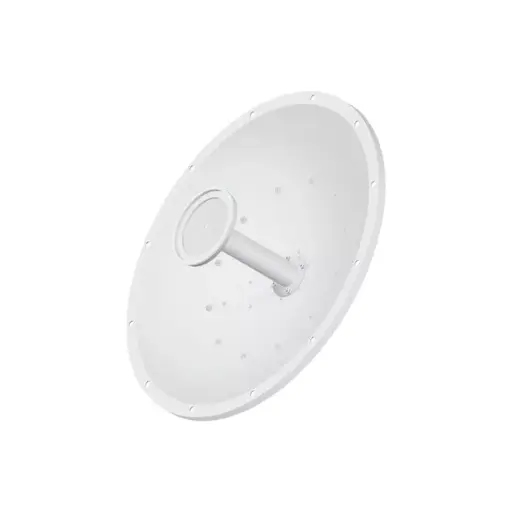

Ubiquiti's AIR-D530 is a 5GHz 30dBi dish antenna designed to seamlessly integrate with the Ubiquiti Radios.

Incorporating a dish reflector design for excellent beam directivity, the AIR-D530 features a robust mechanical design using industrial-strength hardware for outdoor applications.

*Note: Radio not included.

Antenna Gain: 30dBi
Beam-width: 5°
Connector: 2x RP SMA Female
Frequency Range: 4.9GHz - 5.8GHz
Polarization: Vertical & Horizontal
Wind Loading: 787N @ 200km/h

Dimensions: Ø 650 x 304mm
Weight: 9.8kg

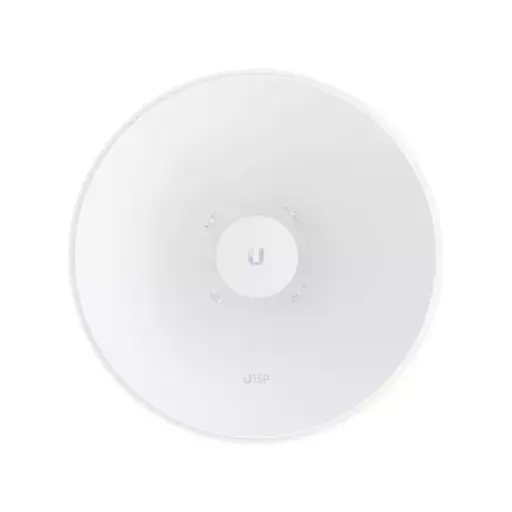

Ubiquiti's UISP-DISH is a 5GHz 30dBi dish antenna designed to seamlessly integrate with Ubiquiti radios. The antenna provides extended coverage by utilising a wide frequency range. The unit comes with a precision mounting bracket for easy installation and alignment.

*Note: Radio not Included.
Antenna Gain: 30dBi
Beam-width: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Connector: WaveGuide Adapter (Included)
Frequency Range: 5.15 - 6.875GHz
Polarization: Vertical & Horizontal
Wind Loading: 860 N at 200 km/h

Dimensions: Ø 650 x 200 mm
Weight: 7.64Kg

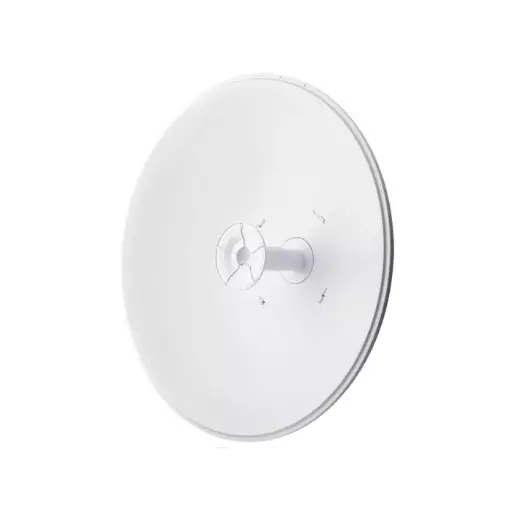

Ubiquiti's AIR-D530LW is a 5GHz 30dBi lightweight dish antenna designed to seamlessly integrate with the Ubiquiti Radios.

*Note: Radio not included.
Antenna Gain: 30dBi
Beam-width: 5.8°
Connector: 2x RP SMA Female
Frequency Range: 5.1GHz - 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 790N @ 200km/h

Dimensions: Ø 650 x 386mm
Weight: 7.4kg

Ubiquiti's AIR-D534 is a 5GHz 34dBi dish antenna designed to seamlessly integrate with the Ubiquiti Radios.

Incorporating a dish reflector design for excellent beam directivity, the AIR-D534 features robust mechanical design using industrial-strength hardware for outdoor applications.

*Note: Radio not included.

Antenna Gain: 34dBi
Beam-width: 3°
Connector: 2x RP SMA Female
Frequency Range: 4.9 – 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 1;779N @ 200km/h

Dimensions: Ø 1050 x 421mm
Weight: 13.5kg

Ubiquiti's AIR-S521AC is a 5GHz 21dBi, 60° airMAX ac, sector antenna designed to seamlessly integrate with Ubiquiti's AC Rockets providing noise isolation and improved beam performance in co-location deployments.

*Note: Radio not included.
Antenna Gain: 21dBi
Beam-width: 60°
Connector: 2x RP SMA Female
Frequency Range: 5.10GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 391N @ 200km/h

Dimensions: 750 x 173 x 78mm
Weight: 4.8Kg

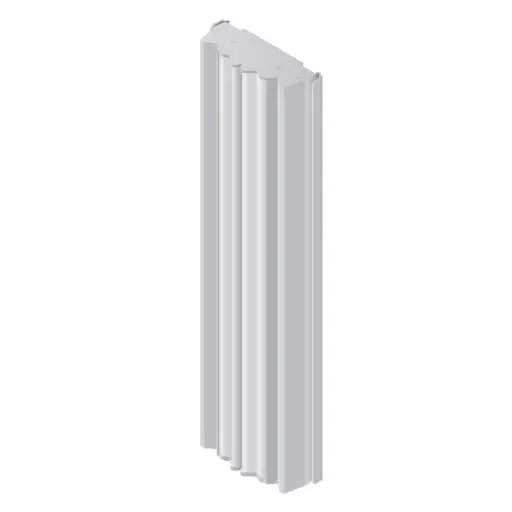

Ubiquiti's AIR-S522AC is a 5GHz 22dBi, 45° airMAX AC sector antenna designed to seamlessly integrate with Ubiquiti's AC Rockets providing noise isolation and improved beam performance in co-location deployments.

*Note: Radio not included.

Antenna Gain: 22dBi
Beam-width: 45°
Connector: 2x RP SMA Female
Frequency Range: 5.10GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 347N @ 200km/h

Dimensions: 750 x 215 x 94mm
Weight: 6kg

Ubiquiti's ISO-514AC is a shielded airMAX ac 5GHz radio with a 14dBi, 45° symmetrical horn antenna. It can be used as a PtMP (point to multipoint) access point in high-interference environments and is easily co-located due to its small size. It can also be used as a short-range CPE (client premises equipment). The antenna can be interchanged with any of the other horn antennas from Ubiquiti's range (sold separately). The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

The IsoStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy.

The IsoStation 5AC comes with a 45° isolation antenna.

Antenna Gain: 14dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None

Dimensions: 174 x 174 x 150mm
Weight: 725.7g
